Magnetic Navigation RFID Positioning Sensor & AGV Ground Tag Reader

Magnetic Navigation RFID Positioning Sensor & AGV Ground Tag Reader

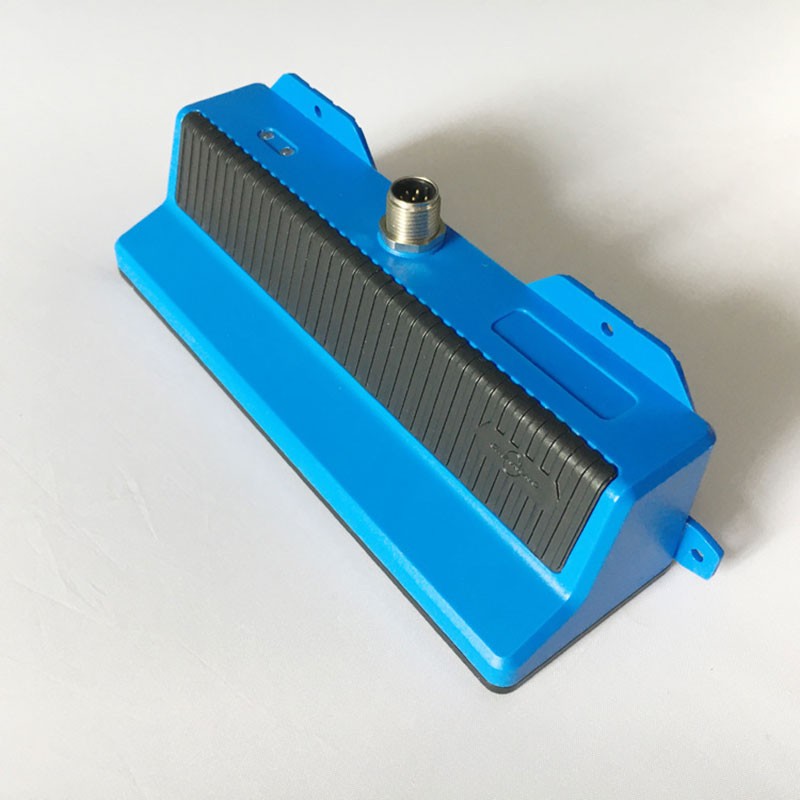

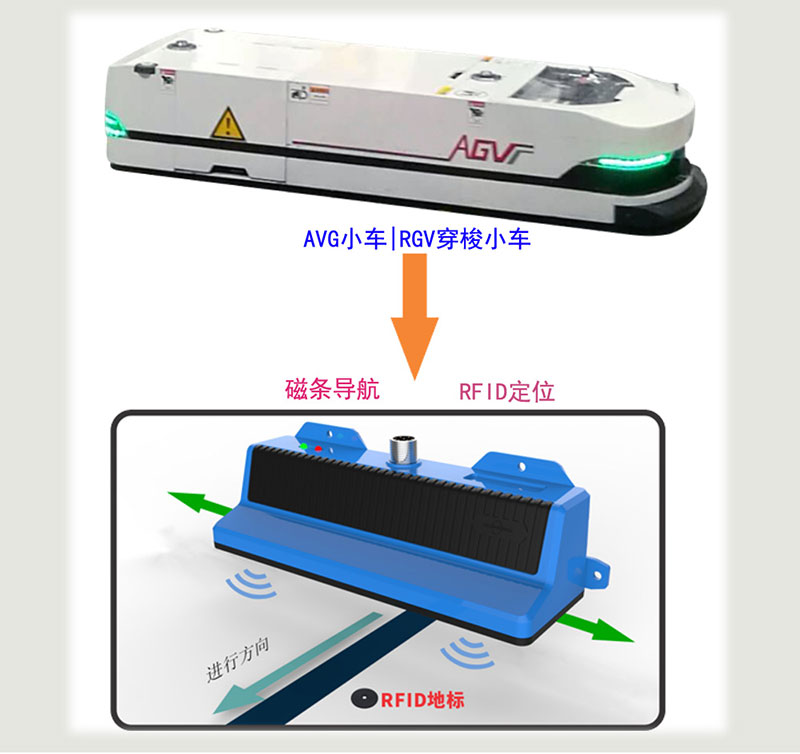

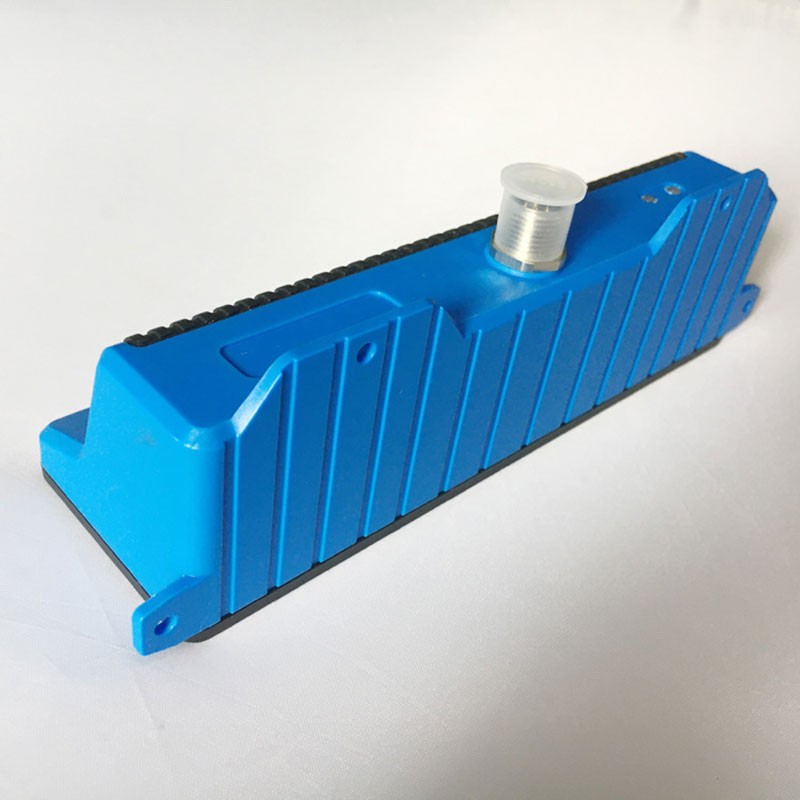

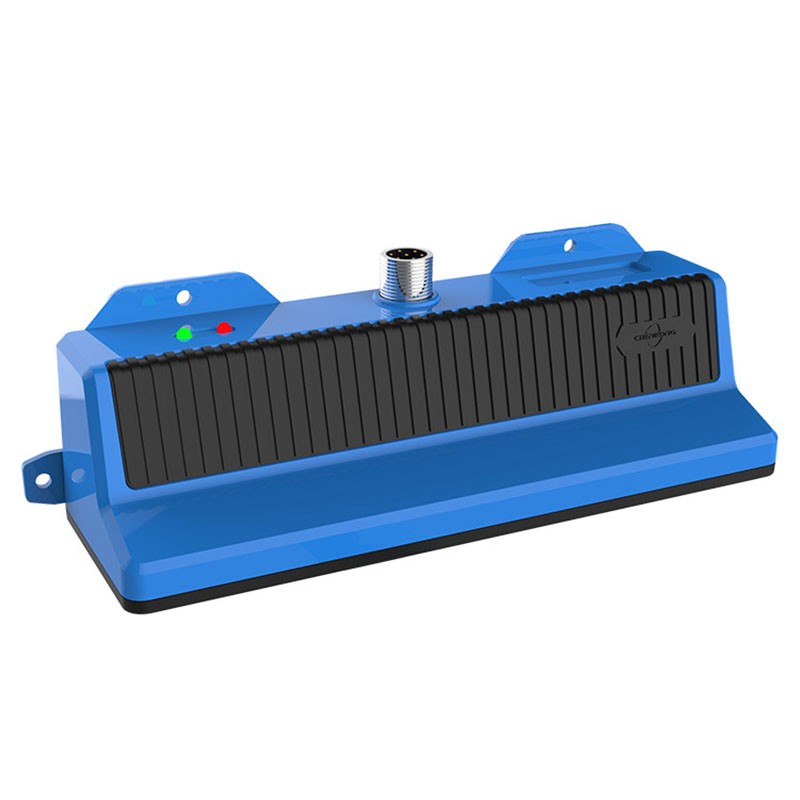

The CK-GL16-AB is an innovative 2-in-1 sensor specifically designed for the AGV industry. It integrates RFID identification/localization with magnetic strip guidance into a single unit. Featuring the new FastID data encoding format for high-speed communication (latency < 17ms), this sensor combines the functionality of RFID recognition and magnetic track following. This integration simplifies system wiring and development while reducing failure rates and manufacturing costs for AGVs.

Key Features

2-in-1 Integration: Combines RFID reading and magnetic strip guidance in one compact device.
High-Speed Performance: Utilizes a new FastID data encoding format with faster transmission speeds (less than 17ms) and enhanced anti-interference capabilities.
Dual DNA Decoding Algorithm: Supports high tag passing speeds of up to 4.39 m/s.
Precise Positioning: Outputs RSSI signal strength for highly accurate AGV positioning.
Rapid Response: Features an 8-sensor sampling architecture with a fast 5ms scanning cycle to quickly feed back deviations in the AGV's direction.
Flexible Communication: Supports RS232, RS485 (modbus RTU), and CAN/CANopen protocols to meet various interface requirements.
Industrial Durability: Built with an IP67 protection rating to withstand harsh industrial environments.

Technical Specifications

Parameter	Specification
Operating Voltage	DC 12-30V
Max Power Consumption	2.2W
RFID Operating Frequency	134.2 kHz
RFID Read Speed	Max 4.39 m/s (Tag Passing Speed)
RFID Effective Distance	0-12 cm (Dependent on tag size and environment)
Magnetic Sensor Channels	8 Channels
Magnetic Detection Distance	20-40 mm (Dependent on magnetic strip)

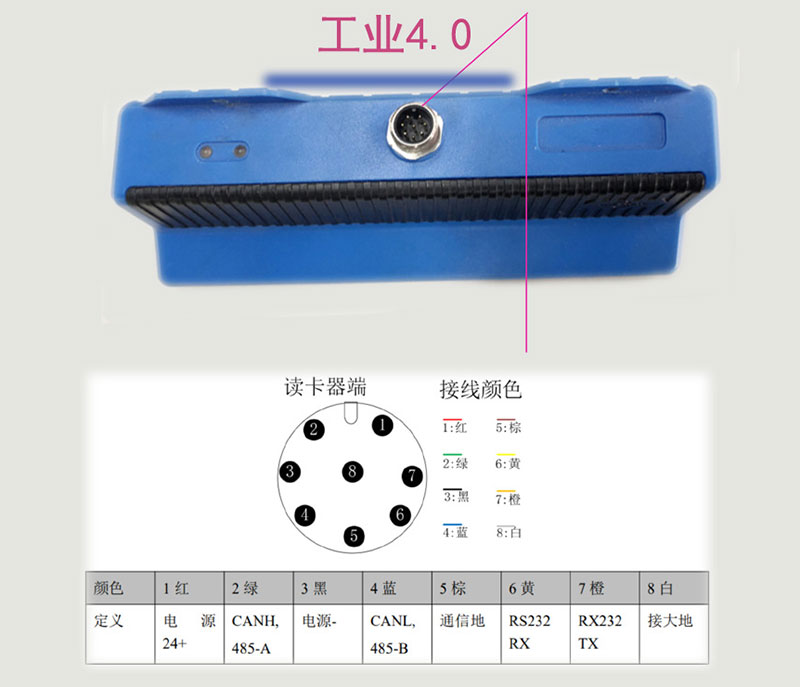

Communication Interfaces	RS232, RS485 (Modbus RTU), CAN, CANopen
Operating Temperature	-25°C ~ +85°C
Operating Humidity	10% ~ 90% RH
Protection Rating	IP67
Housing Material	ABS Engineering Plastic
Dimensions	178mm x 52.5mm x 54.4mm
