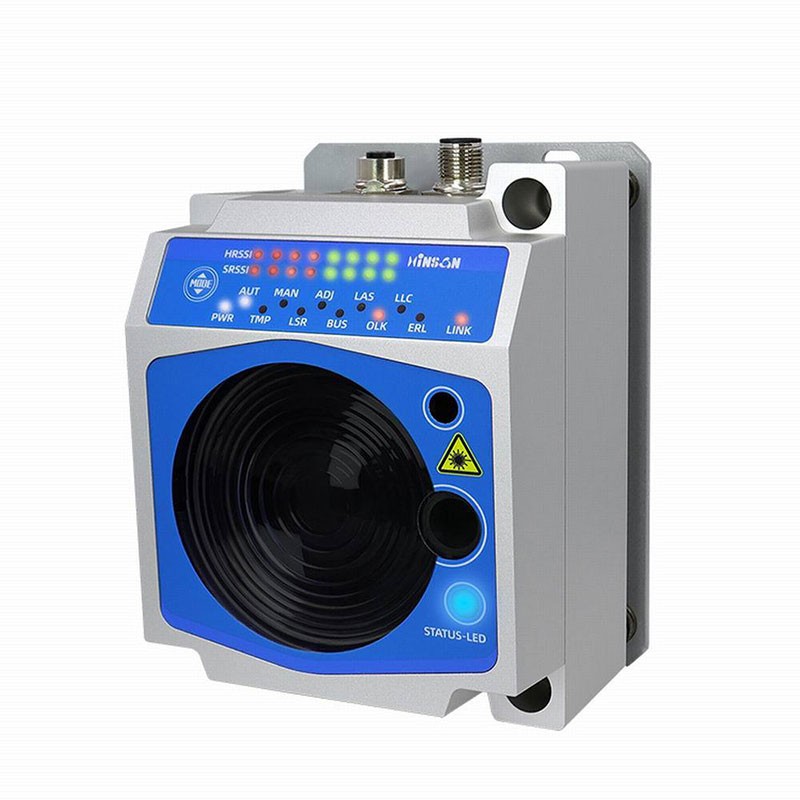

Industrial Wireless Optical Ethernet Transceiver | Long Range Laser Data Link for AGV & Crane

This advanced Optical Data Transmitter utilizes laser light as its carrier, enabling high-speed, stable, and license-free wireless data transmission over long distances. It is designed to replace traditional cables, slip rings, and fiber optics in challenging industrial environments.

YouTube

With support for 100Mbit/s full-duplex Ethernet communication, this module is the ideal solution for mobile equipment such as Automated Guided Vehicles (AGVs), rail-mounted cranes, stacker cranes, and robotic arms. It ensures reliable data exchange even in the presence of obstacles or when equipment movement makes physical cabling impractical.

Key Features

Long-Distance Wireless Transmission: Achieves transmission distances of up to 300 meters (models available for 0.1m-150m and 0.1m-300m ranges).
High-Speed Data Rate: Supports a communication bandwidth of 100Mbit/s, ensuring smooth data flow for video and control signals.
Industrial Protocol Agnostic: Features an Ethernet interface (RJ45) with no restrictions on communication protocols (compatible with Profinet, EtherCAT, modbus TCP/IP, etc.).
Intelligent Link Management: Automatic transmit power adjustment based on signal strength feedback; rapid reconnection time (< 50ms).
Easy Installation: Integrated laser alignment and bubble level for precise aiming, significantly reducing setup time.
Remote Diagnostics: Built-in monitoring for device status, signal strength, temperature warnings, and data integrity checks.

Technical Parameters

Parameter	Specification Details
Model Series	OPT-0150 / OPT-0300 / OPT-1150 / OPT-1300
Operating Voltage	DC 10V – 30V
Communication Interface	Ethernet (100Mbit/s, Full-Duplex)
Data Rate	100Mbit/s
optical Wavelength	650nm (Standard) / 780nm / 820nm / 850nm / 940nm (Optional)
Transmission Distance	• Standard Models: 0.1m - 150m• Extended/Long-Range Models: 0.1m - 300m
Beam Divergence	±0.5°
Protocol Support	Unlimited (Transparent Ethernet transmission)
Setup Time	Initial Link < 2.5s / Re-link < 50ms
Weight	Approx. 800g
Operating Temperature	-10°C ~ +55°C
Operating Humidity	80% RH (Non-condensing)
Protection Class	IP65 (Industrial grade)
