Overhead Crane Wireless Optical Communication Module | 4m Range Low Latency AGV Data Transceiver

Overhead Crane Wireless Optical Communication Module | 4m Range Low Latency AGV Data Transceiver

This high-speed optical wireless communication module utilizes near-infrared light as its carrier, enabling non-contact, bidirectional data transmission over short distances. It is specifically designed for demanding industrial automation scenarios such as overhead cranes (overhead traveling cranes), AGVs (Automated Guided Vehicles), stacker cranes, and other bridge-type machinery.

YouTube

The module features a compact, robust design with an integrated status LED indicator panel for real-time monitoring of communication health (including PWR, TEMP, LAS, AD, DAT, LNK signals). With an IP65 protection rating, it operates reliably in harsh industrial environments (-10°C to +55°C), providing a secure, interference-resistant alternative to traditional slip rings and physical cables.

Key Features & Functions

Non-Contact Bidirectional Transmission: Employs full-duplex communication mode via near-infrared carriers, transmitting and receiving data simultaneously without physical contact.
Ultra-Low Latency: Ensures efficient real-time control with a communication establishment time of < 25ms and a communication delay of < 20ms.

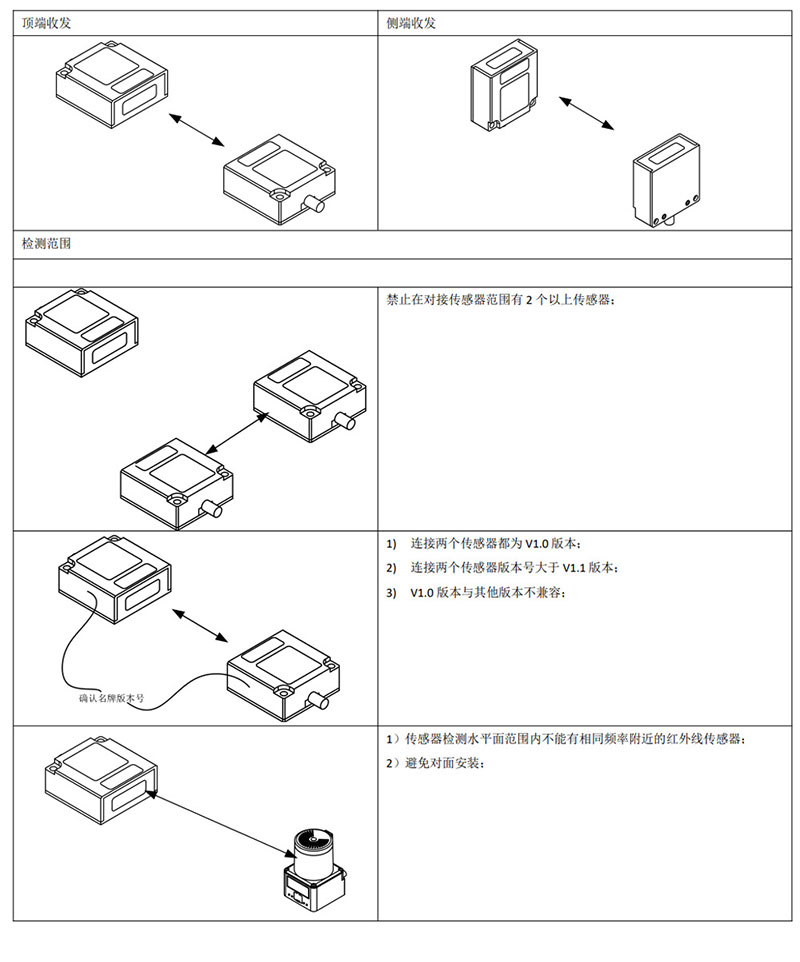

Flexible Installation: Available in multiple configurations including side-emitting and top-emitting models to accommodate various mounting positions and alignment requirements.
Precise Alignment: Features a highly focused beam with a divergence angle of only ±15°, allowing for accurate targeting even in environments with limited space.
Extended Transmission Range: Capable of maintaining a stable connection over a maximum distance of 4 meters.
High Immunity: Utilizes infrared technology, offering superior resistance to electromagnetic interference and strong ambient light, ensuring high communication stability.
Industrial-Grade Durability: Housed in a rugged aluminum die-cast enclosure with an IP65 rating, making it dust-tight and protected against low-pressure water jets.

Technical Parameters

Parameter	Specification
Effective Transmission Distance	Max. 4 meters
Divergence Angle	±15°
Communication Mode	Full-duplex
Carrier Wavelength	Near Infrared
Modulation Method	Pulse Modulation
Communication Delay	< 20ms
Link Establishment Time	< 25ms
Communication Interface	Ethernet (100Mbit/s)
Protocol Support	Protocol transparent (no restrictions)
Optional Configurations	Side Emitting / Top Emitting
Housing Material	Aluminum Die-Cast
Protection Class	IP65
Operating Temperature	-10°C ~ +55°C
Operating Humidity	80% RH (Non-condensing)

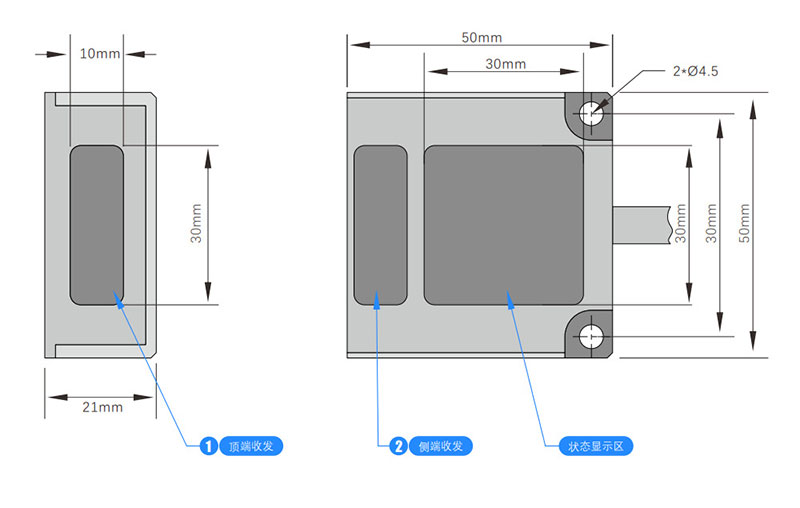

Dimensions	50(W) × 50(D) × 21(H) mm (Standard version)
Weight	Approx. 150g (±3g)
