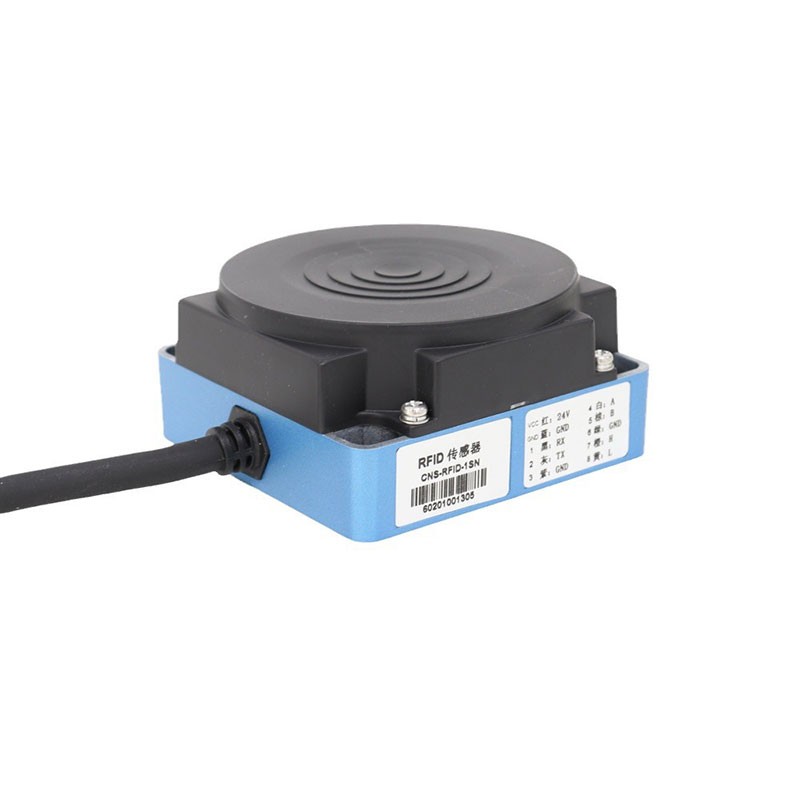

Industrial-Grade High-Frequency RFID Sensor (HF RFID Reader)

This industrial-grade High-Frequency (HF) RFID sensor is engineered for precision identification and positioning in automated industrial environments. Operating at 13.56MHz and compliant with the ISO15693 protocol, it delivers reliable performance for AGV (Automated Guided Vehicle) localization, material tracking, and production automation. With a maximum read range of 130mm (dependent on tag size and environment), it supports high-speed data transfer, flexible configuration, and multi-mode operation, making it ideal for harsh industrial settings.

Key Features & Functions

1.


   High-Speed Reading/Writing

   Supports tag relative speeds up to 3m/s, ensuring accurate, no-miss reading/writing for dynamic applications (e.g., moving AGVs or conveyor systems).




2.


   Flexible Data Configuration

   Customize data block read/write operations (up to 45 data blocks, 4Byte per block) to meet diverse application requirements.




3.


   RSSI Signal Strength Output

   Outputs Received Signal Strength Indicator (RSSI) levels (0–15) to enable auxiliary positioning, enhancing location accuracy for AGVs or tracking systems.




4.


   Multiple Operation Modes

   Switch between single-card, multi-card, and anti-collision modes to adapt to complex environments (e.g., crowded tag scenarios or high-speed sorting).




5.


   Versatile Communication Protocols

   Supports modbus-RTU (RS485/RS232), Modbus-TCP, and CANopen, ensuring seamless integration with PLCs, AGV controllers, and industrial networks.




6.


   Robust Industrial Design




•


  Protection: IP65-rated for dust/water resistance.




•


  Operating Conditions: -10℃ to +50℃ (ambient), <85%RH (non-condensing).




•


  Power: DC 12–30V, <1.5W power consumption.

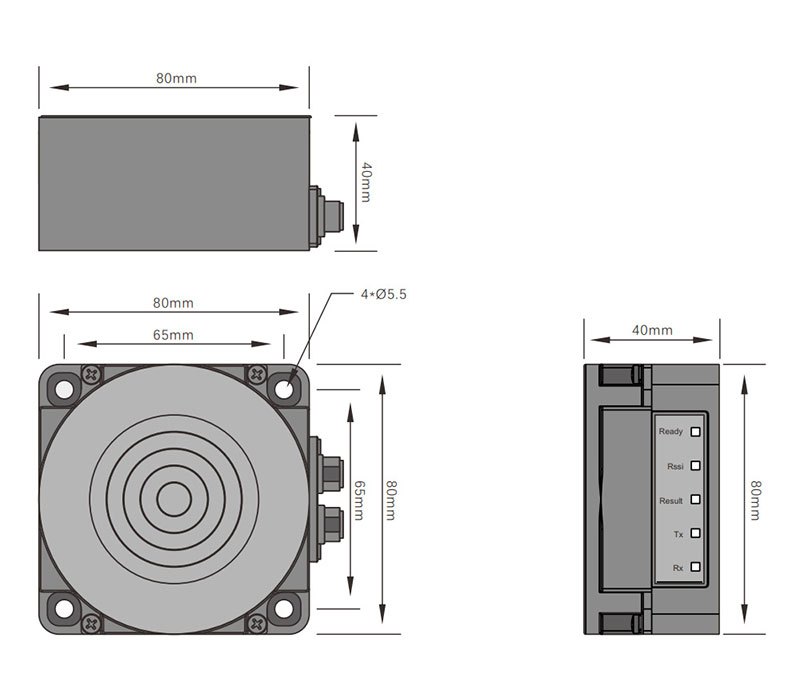

Technical Specifications

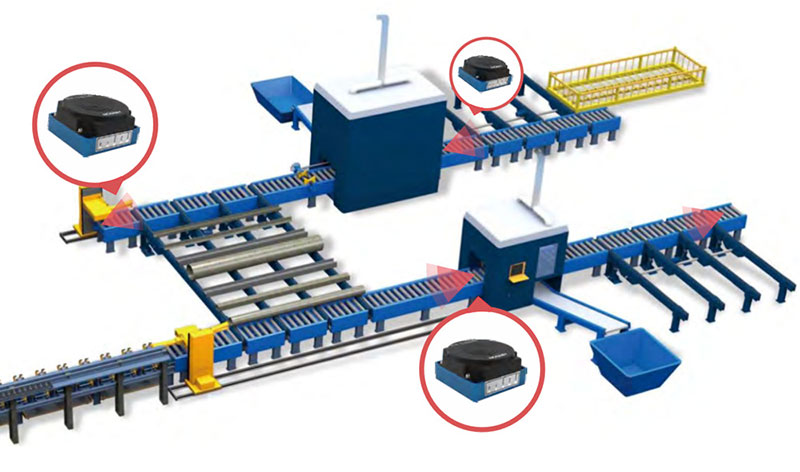

Application Areas

Ideal for:

•


  Production Automation: Work-in-process tracking, assembly line management.




•


  Material Handling: AGV/RGV navigation, pallet/container identification.




•


  logistics & Warehousing: Inventory management, cargo tracking.




•


  Industrial Localization: High-precision positioning for automated guided vehicles (AGVs), robots, or mobile equipment.
