High-Precision Magnetic Navigation Sensor for AGV & RGV | 1mm Accuracy

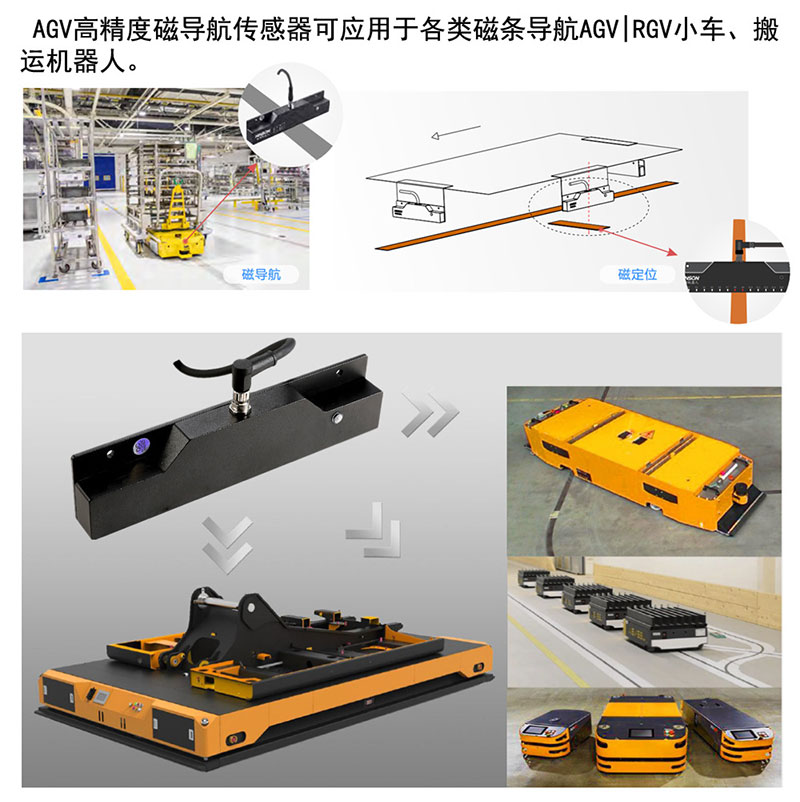

This high-precision magnetic navigation sensor is engineered for Automated Guided Vehicles (AGVs) and Rail Guided Vehicles (RGVs), enabling precise path following and positioning by detecting magnetic field signals from embedded floor magnets or magnetic strips. Utilizing advanced fluxgate detection technology, the sensor offers exceptional stability and anti-interference capabilities, making it an optimal solution for industrial automation logistics, warehousing, and manufacturing environments.

Key Features

High-Precision Positioning: Delivers accurate 1mm displacement output, calculating the relative position between the sensor center and the strongest magnetic field point for ultra-precise navigation and docking.
Directional Path Selection: Supports left, straight, and right lane/path selection commands, allowing AGVs to navigate intersections and smooth curves without抖动 (jitter) or deviation.
Configurable Magnetic Polarity: Flexibly configurable to detect N-pole, S-pole, or both N/S poles simultaneously, ensuring compatibility with various magnetic strip specifications.
Adjustable Sensitivity: Features a 10-level sensitivity adjustment (0-9) to adapt to different installation heights and varying environmental magnetic interference.
Diverse Communication Protocols: Equipped with multiple interfaces including RS232, RS485 (modbus), CAN (CANopen), and optional Ethernet (Modbus-TCP) for seamless integration into existing control systems.
Robust Design: Built with an IP67 protection rating and designed to withstand operating temperatures from -10℃ to +50℃, suitable for harsh industrial environments.

Technical Specifications

Detection Accuracy: Model dependent (±1mm or ±3mm base error).

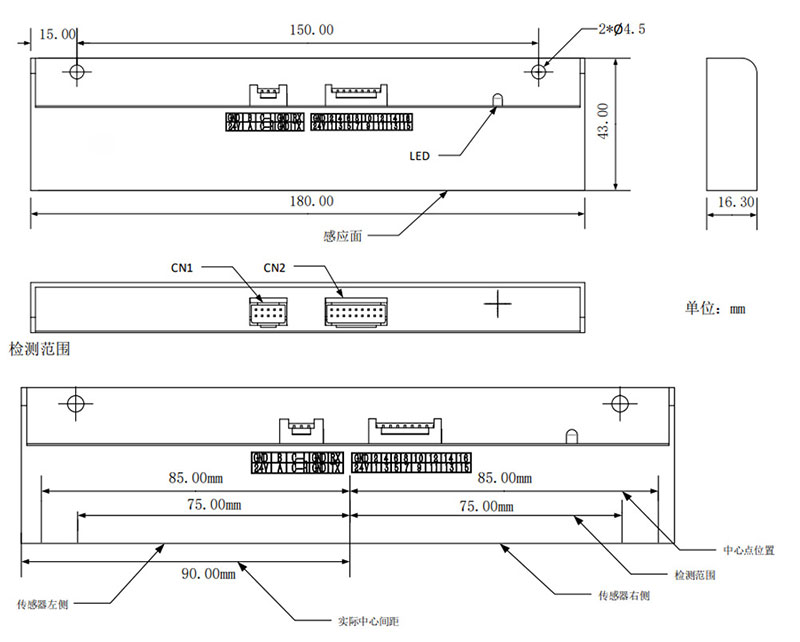

Detection Range: ±70mm to ±75mm (depending on model).
Operating Voltage: 24V DC (Range: 10V - 32V).
Sensing Points: Available in 8-point (simulated 16-channel) or 16-point configurations with switch量 outputs.
Installation: Recommended mounting height of 25mm; supports magnetic strip widths of 30mm or 50mm.

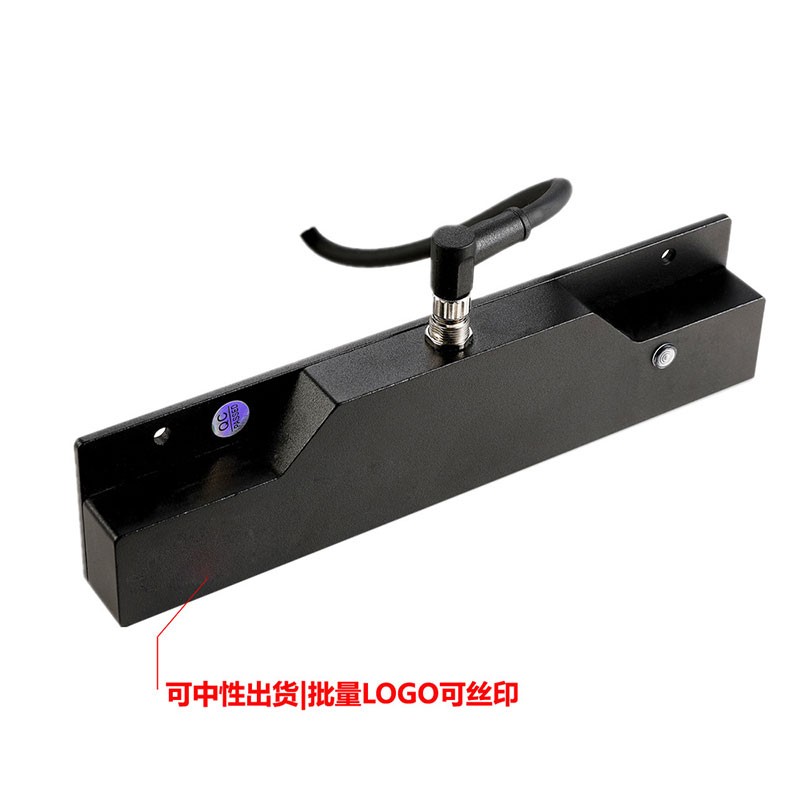

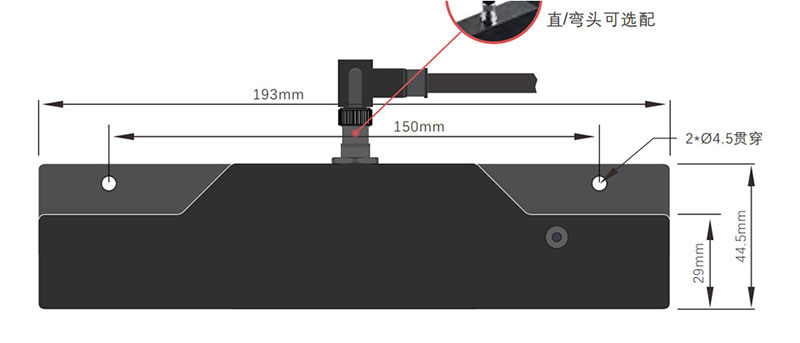

Connector: 8-pin female connector with options for 1.5m, 3m, or 6m cable lengths.
