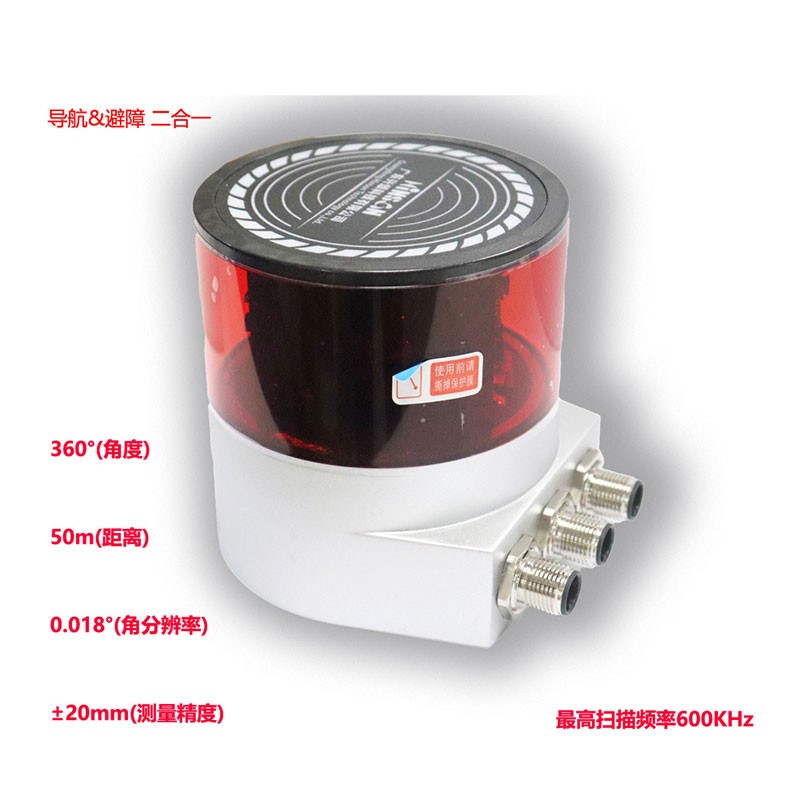

This 360° Time-of-Flight (TOF) laser LiDAR sensor is a high-performance safety solution engineered for forklift collision avoidance and industrial mobile equipment. With a 50-meter detection radius, 0.018° angular resolution, and up to 200kHz measurement frequency, it delivers real-time, accurate environmental mapping. Advanced noise filtering, wireless power, and high-speed optical communication ensure reliable performance in harsh industrial settings (IP65, -10℃~+50℃).
360° Omni-Directional Scanning
Full 360° scanning angle with a minimum resolution of 0.018°, ideal for AGVs, forklifts, and autonomous mobile robots.
Long-Range Detection
Detects objects from 0.1m (minimum) to 50m (maximum, 90% reflectivity) with ±20mm absolute accuracy and ±10mm repeatability.
High-Speed Measurement
Adjustable measurement frequency (50kHz/100kHz/150kHz/200kHz) and motor speed (10Hz–30Hz) for dynamic response.
Noise Filtering & Environmental Adaptability
Hinson’s proprietary smoothing algorithm minimizes noise/jitter. Resists ambient light (≤80,000Lux) and operates in -10℃~+50℃ environments.
Wireless Power & High-Speed Communication
Wireless power eliminates mechanical wear; high-speed optical communication ensures reliable data transmission (immune to EMI).
Intuitive LED Display
On-scan window LED shows real-time status (IP, motor speed, scan frequency) or custom ASCII/Chinese characters.
Flexible Interfaces
Supports RS485 (modbus RTU), CAN BUS, Ethernet (TCP/UDP), and digital I/O for seamless system integration.

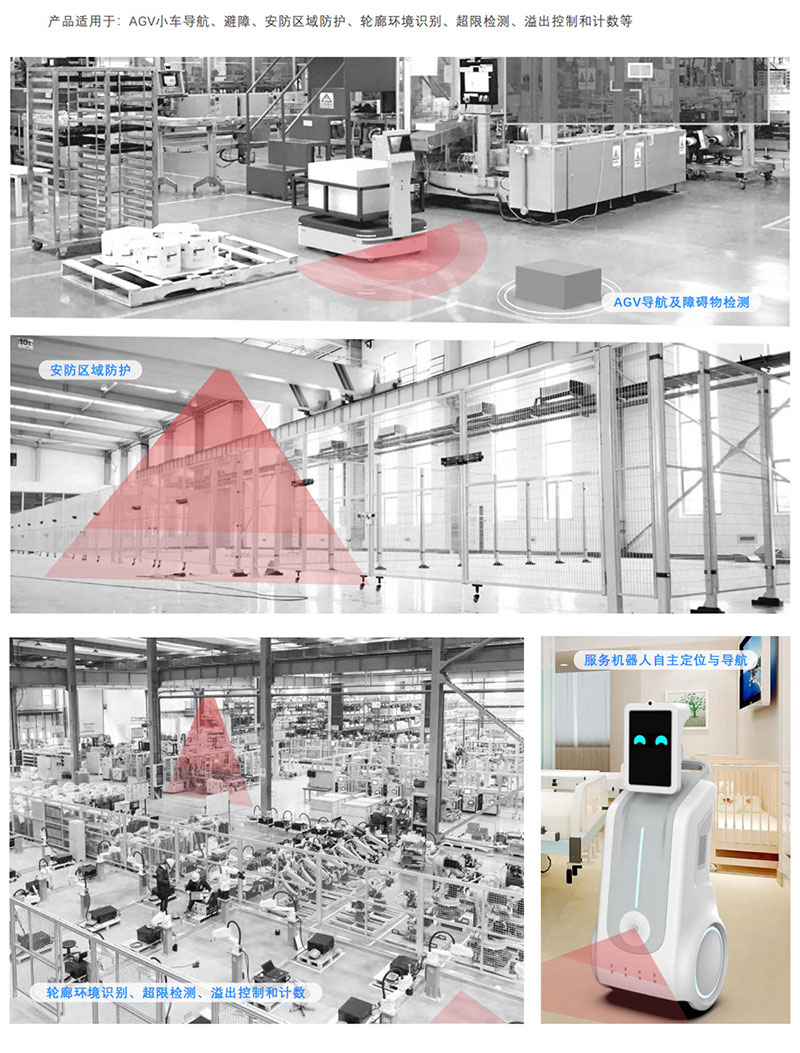

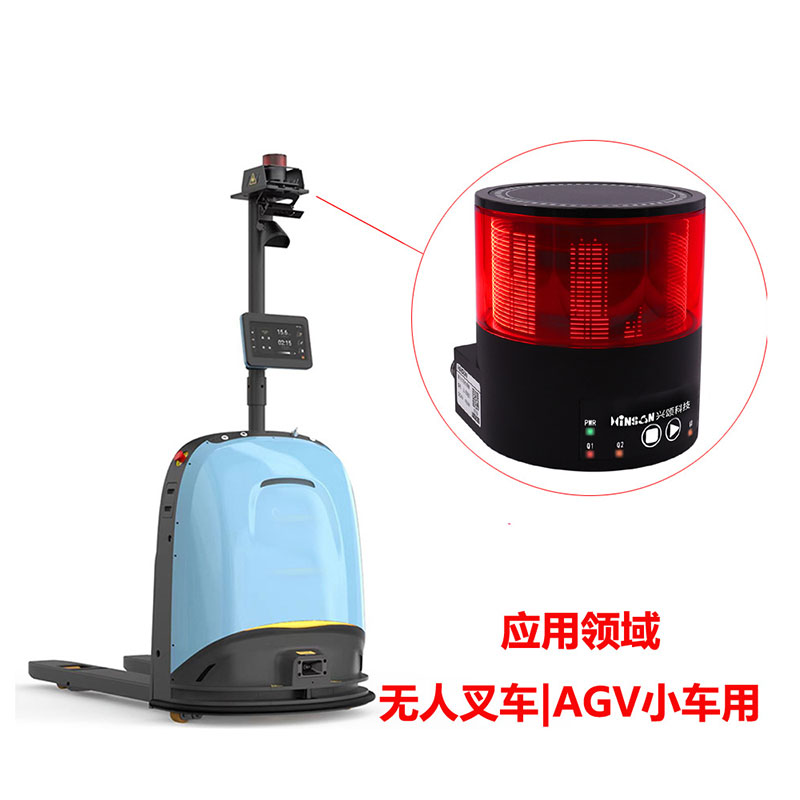

Forklift collision avoidance
AGV/AMR navigation and obstacle detection
Industrial logistics and material handling
Automated warehouse safety systems
Parameter | Specification |
|---|---|
Operating Voltage | DC 18V–60V |
Power Consumption | <7W |
Laser Wavelength | 905nm (Class 1, IEC 60825-1:2014) |
Detection Range | 0.1–50m (90% reflectivity); 0.1–20m (10% reflectivity) |
Scanning Angle | 360° |
Angular Resolution | Minimum 0.018° (configurable) |
Measurement Frequency | 50/100/150/200kHz (software-defined) |
Motor Speed | 10/15/20/25/30Hz (configurable) |
Interfaces | RS485 (Modbus RTU), CAN BUS, Ethernet (TCP/UDP), 6x NPN inputs, 4x NPN outputs |
Protection Rating | IP65 |
Operating Temperature | -10℃ ~ +50℃ |
Storage Temperature | -20℃ ~ +70℃ |
Humidity | ≤85%RH (no condensation) |

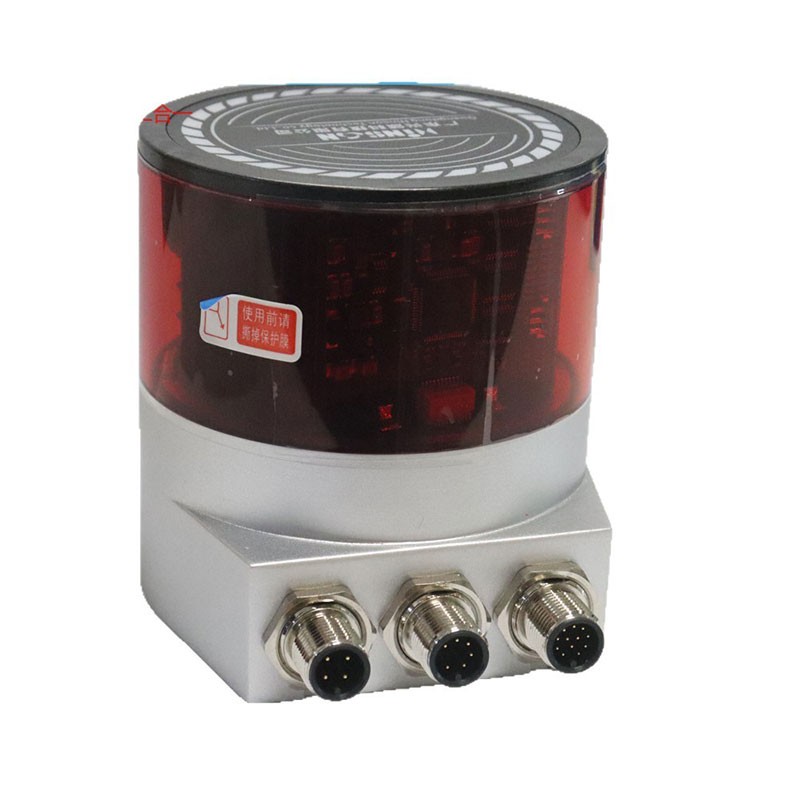

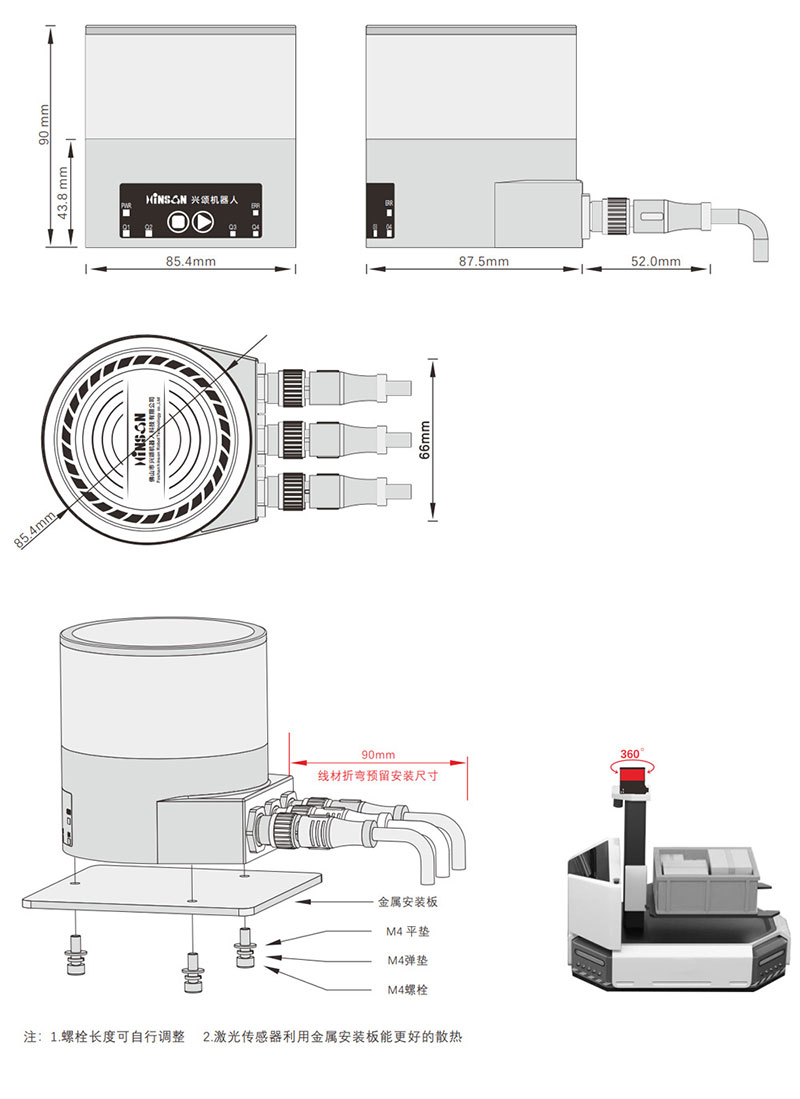

Connection | M12-4 (Ethernet/power), M12-6 (I/O), M12-12 (power/I/O) |
Housing Material | Aluminum alloy (base) + PMMA (scan window) |
This comprehensive solution balances precision, durability, and ease of integration for industrial safety and automation.
