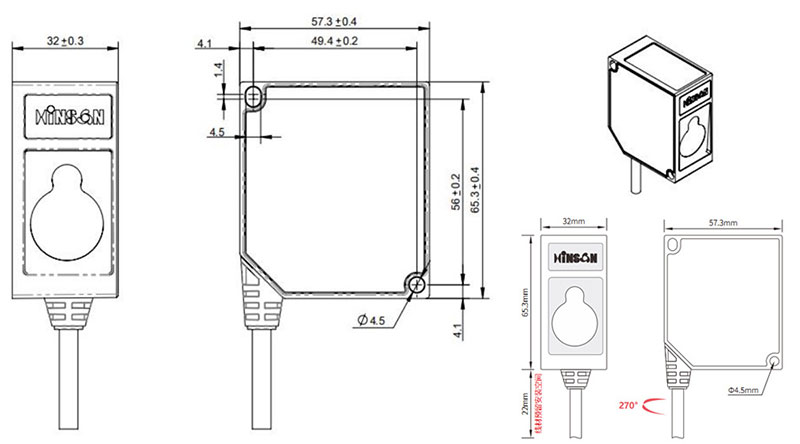

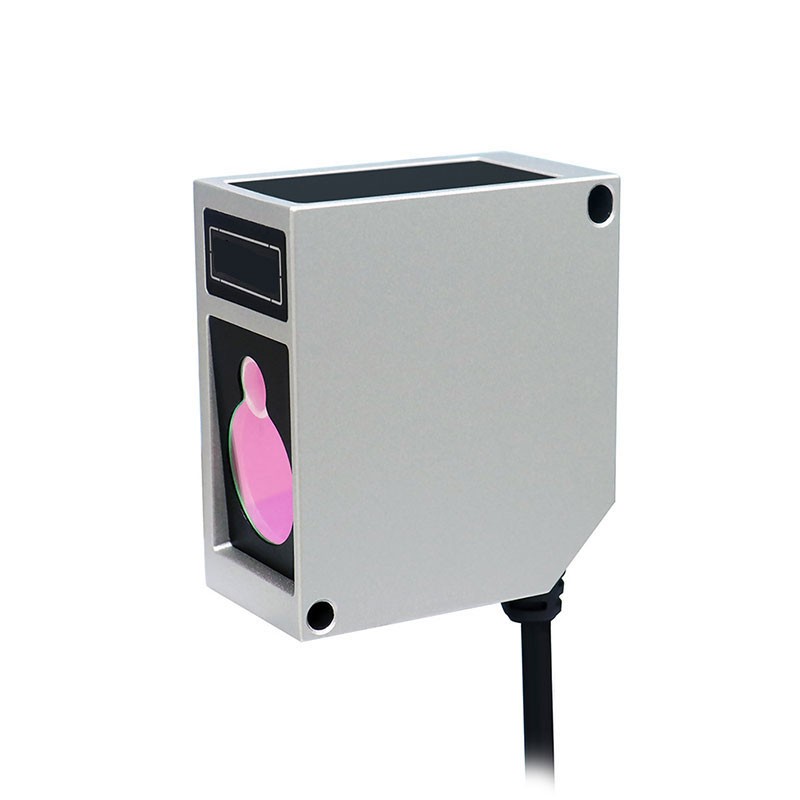

The DHR Series Displacement Laser Sensor utilizes advanced dTOF (direct Time-of-Flight) technology to deliver precise distance and displacement measurements. Engineered for industrial environments, it offers a robust IP65-rated aluminum housing, a 270° rotatable cable exit for flexible installation, and an impressive maximum measurement range of 50m.
With a 540kHz high-frequency measurement rate and 0.1mm resolution, this sensor ensures stable, millisecond-level responses for dynamic target tracking. Its immunity to surface color and reflectivity makes it ideal for applications requiring extreme precision, such as automotive manufacturing, automated machinery, and logistics.
High-Precision dTOF Technology
Millimeter-level accuracy (±4mm absolute precision, ±2mm repeatability) for critical positioning tasks.
540kHz sampling rate enables real-time tracking of fast-moving objects with 1kHz distance value refresh rate.
Versatile Measurement Capabilities
Measures distances from 0.05m to 50m (depending on model and reflectivity), suitable for both short-range (e.g., forklift collision avoidance) and long-range (e.g., container positioning) tasks.
Unaffected by target color, texture, or ambient light (<60,000 Lux), ensuring reliable performance in complex environments.
Industrial-Grade Durability
IP65 protection against dust and water jets; operates reliably in temperatures from -10°C to +50°C and humidity up to 80% RH.
Aluminum alloy construction withstands harsh factory conditions and physical impacts.
Flexible Integration
Multiple communication interfaces: SSI, CAN (CANopen), RS485 (modbus), and RS422 for seamless integration with PLCs, AGVs, and robotic systems.
Programmable via intuitive software (e.g., Hinson Configuration Tool) for customizing parameters like measurement range, output format, and filtering.
Multi-Channel Support
Up to 16 configurable channels (varies by model) with independent detection zones, enabling simultaneous monitoring of multiple areas or targets.

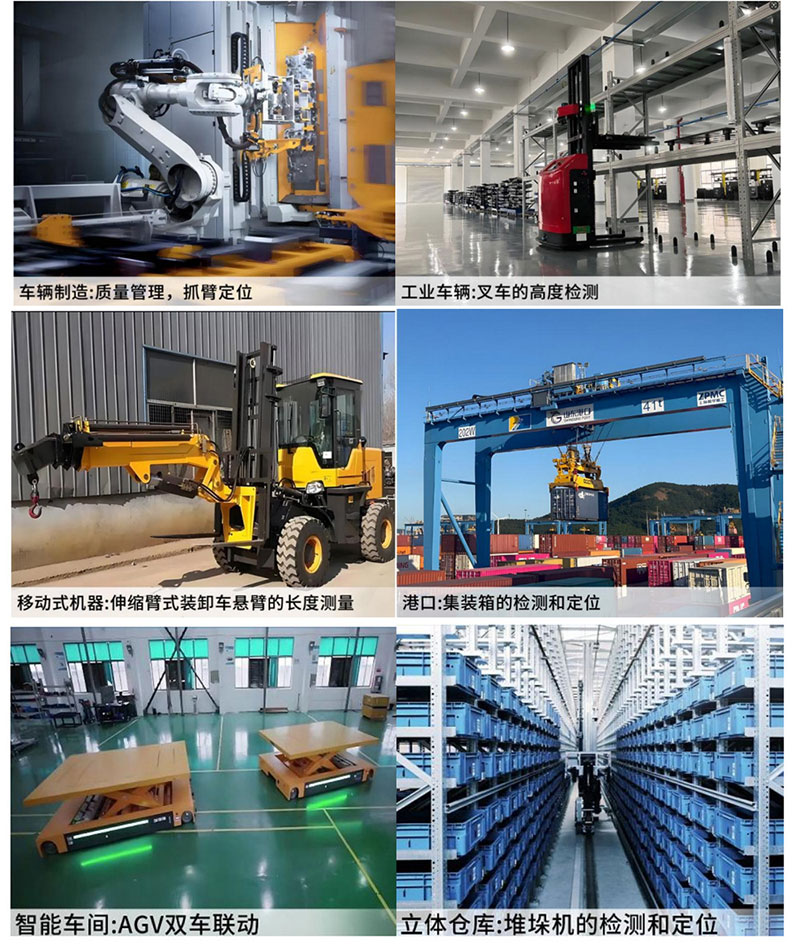

Automotive Manufacturing: Vehicle body alignment, robotic arm positioning, and quality inspection.
Logistics & Warehousing: AGV dual-vehicle coordination, stacker crane positioning, and container handling.
Industrial Automation: High-speed sorting machines, automated guided vehicles (AGVs), and precision assembly lines.
Heavy Machinery: Forklift safety systems, crane load monitoring, and port equipment positioning.
Parameter | Specification |
|---|---|
Measurement Principle | dTOF (direct Time-of-Flight) |
Measurement Range | 0.05–50m (max, ≥90% reflectivity) |
Resolution | 0.1mm |
Absolute Accuracy | ±4mm |
Repeatability | ±2mm |
Sampling Rate | 540kHz |
Refresh Rate | 1kHz |
Laser Wavelength | 660nm (visible red, Class 1 safety) |
Protection Rating | IP65 |
Operating Temperature | -10°C ~ +50°C |
Humidity | ≤80% RH (no condensation) |

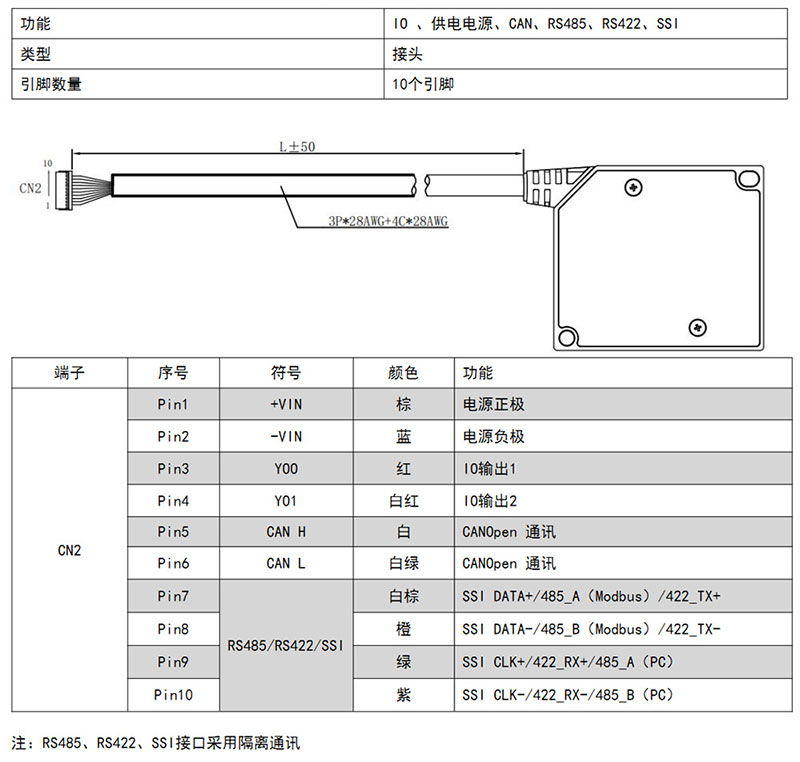

Interfaces | SSI, CAN (CANopen), RS485 (Modbus), RS422 |
Cable | 1m integrated cable (customizable length) |
Housing Material | Aluminum alloy |
