Stacker Crane Anti-Collision Laser Rangefinder & Forklift Height Measurement Sensor

Stacker Crane Anti-Collision Laser Rangefinder & Forklift Height Measurement Sensor

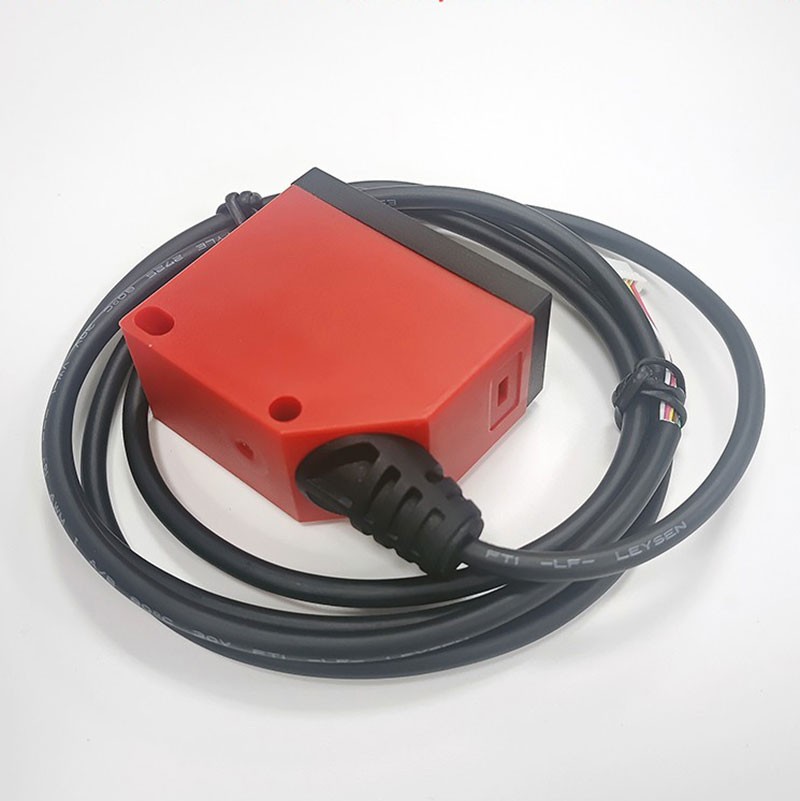

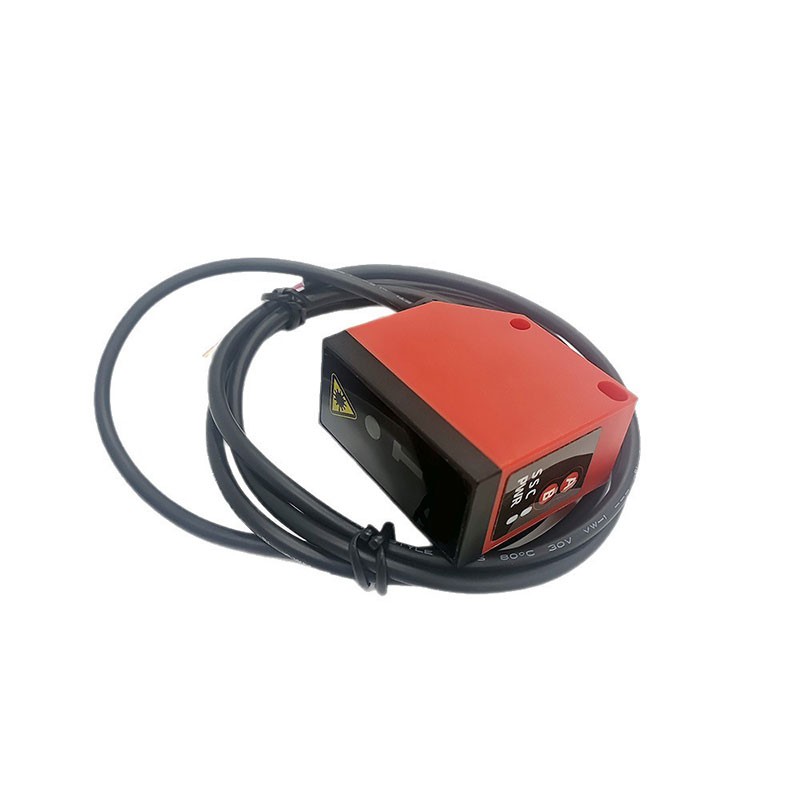

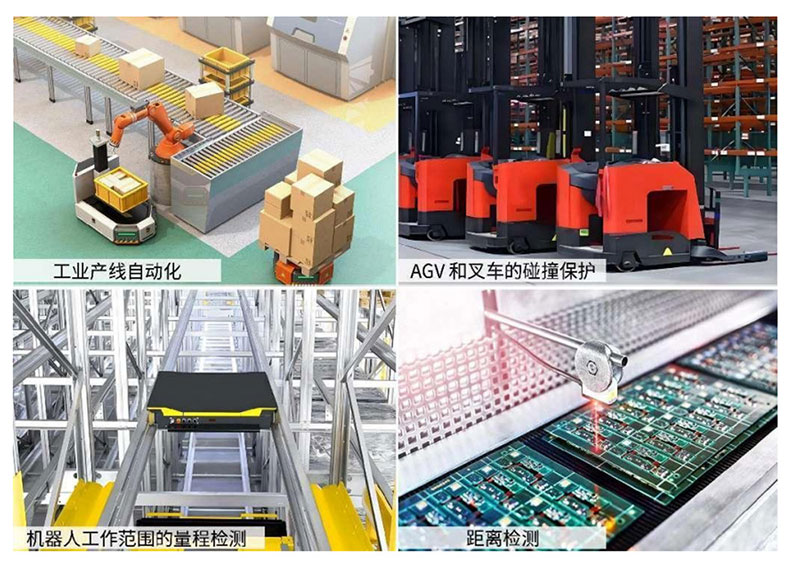

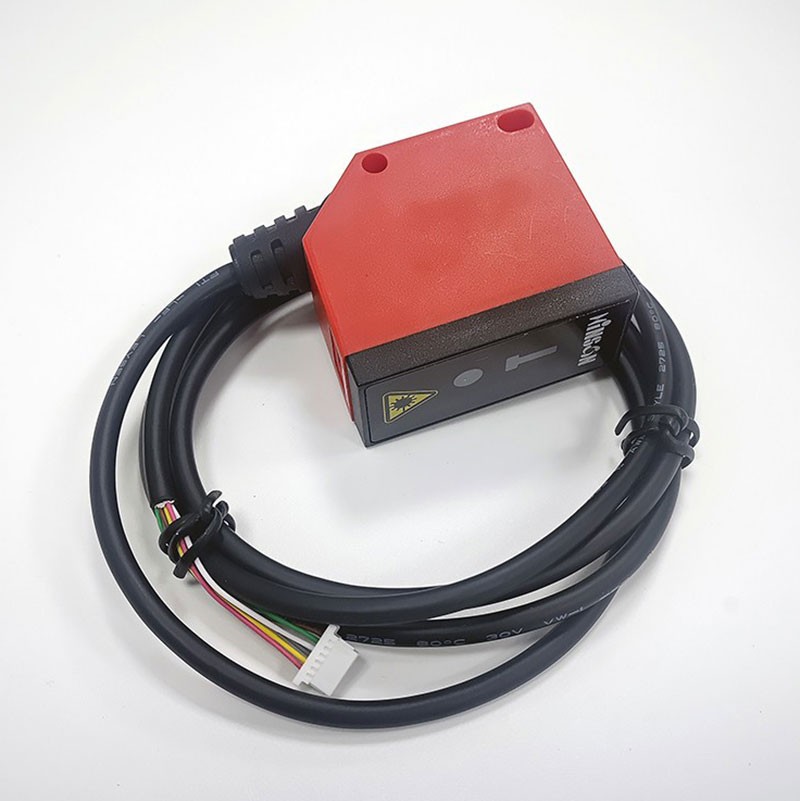

The SLR Series Mini Single-Point Laser Distance Sensor utilizes advanced TOF (Time of Flight) technology with visible red light, offering high measurement frequency, fast response, and high precision. Its compact size allows for flexible installation, making it an ideal solution for distance measurement, presence detection, and anti-collision applications in automated production lines, conveyor belts, intelligent logistics, AGVs, and forklifts.

Key Features & Description

High-Precision Measurement: Provides an effective range of up to 10 meters (at 90% reflectivity) with an absolute accuracy of ±20mm and a repeatability of ±10mm.
Fast Response: Operates at a high measurement frequency of 144KHz, ensuring real-time tracking of dynamic targets.
Flexible Safety Zone Configuration: Features two configurable relay output modes (IO_01 and IO_00) that can be set to trigger based on preset distance thresholds, enabling customizable safety perimeters.
Versatile Communication: Equipped with industry-standard interfaces including CAN Open, RS485 modbus, and digital switch量 (NPN/PNP) outputs for seamless system integration.
Robust Design: Housed in durable ABS and PC materials with an IP65 protection rating (270° rotatable connector) to withstand harsh industrial environments.

Specifications

Parameter	Specification
Model	SLR10-11000 / SLR10-21000
Max Range	0.05~10m (≥90% reflectivity)
Resolution	1mm
Accuracy	±20mm
Repeatability	±10mm
Frequency	144KHz
Interface	CAN Open, RS485 Modbus, 2x NPN, 2x PNP
Protection	IP65 (270° rotatable joint)
Power Supply	DC 10-30V
Power Consumption	< 0.8W
Laser	660nm (Visible Red, Eye-safe)

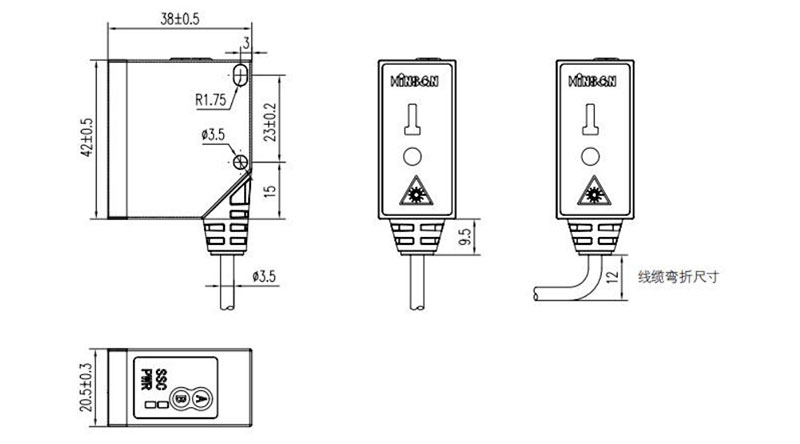

Dimensions	Compact Mini Design
