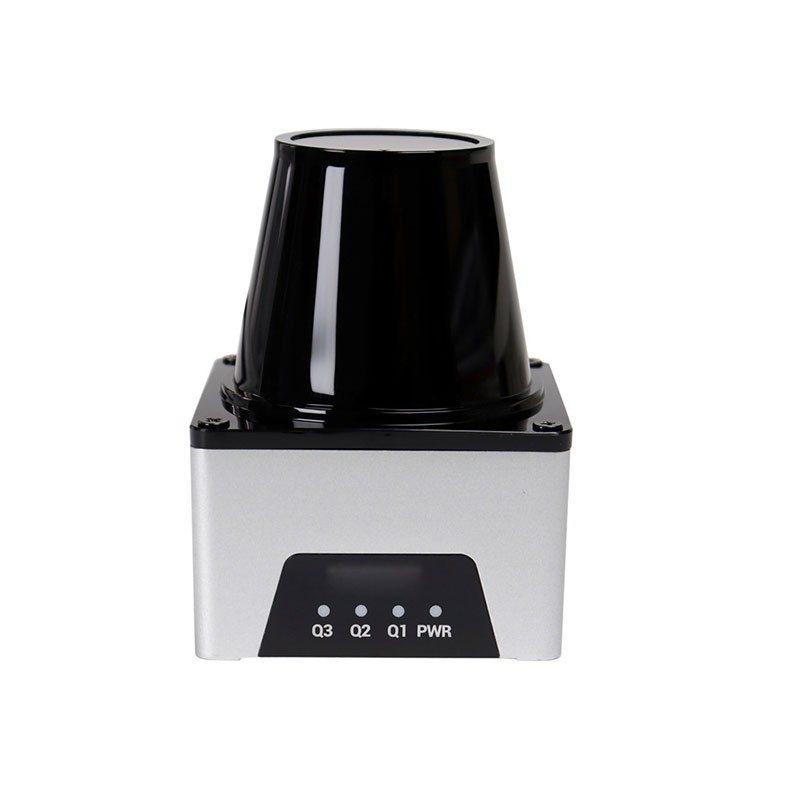

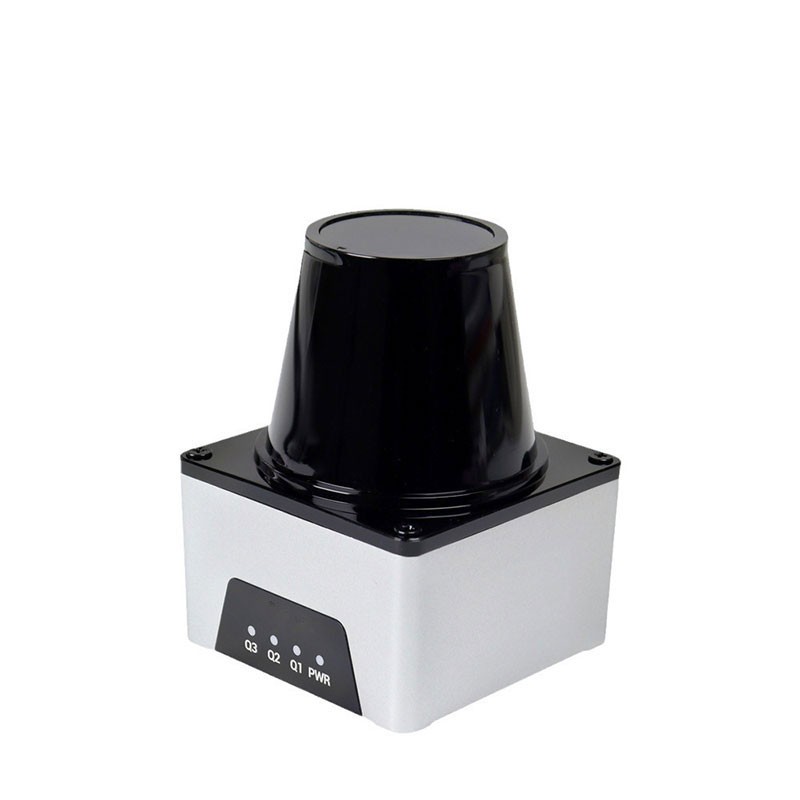

360° PRT Laser Safety Scanner for AGV | 50m Collision Avoidance Radar

The 360° PRT Laser Safety Scanner is an advanced obstacle avoidance and collision prevention sensor designed for AGVs (Automated Guided Vehicles), forklifts, and industrial mobile robots. Utilizing Pulse Ranging Technology (PRT) (a proprietary time-of-flight variant), it delivers high-precision distance measurement, immunity to surface color/reflectivity, and reliable performance in complex environments (e.g., dust, rain, or low-contrast surfaces). With a 360° scanning range, 50m detection radius, and 540kHz emission frequency, it enables real-time environment mapping, navigation, and safe operation for automated systems.

Key Features & Functions

PRT Pulse Ranging Technology

Accurately measures distances (0.05–50m, adjustable by reflectivity) with no sensitivity to surface color (even black/white with low contrast).
Stable detection over long distances, immune to background interference.

360° Omnidirectional Scanning

Full-coverage scanning (360° horizontal angle) with a maximum range of 50m (≥90% reflectivity) and 0.025° minimum angular resolution.

High-Speed Data Acquisition

540kHz emission frequency generates dense point-cloud data for precise environmental mapping, navigation, and obstacle avoidance.

Multi-Echo Technology

Detects multiple echoes per beam to filter out interference (rain, dust, complex obstacles) and ensure accurate target recognition.

Flexible Channel Configuration

Supports up to 16 software-configurable channels (each with 3 independent detection zones) for customized safety perimeters.

Robust Environmental Adaptability

Operates reliably in harsh industrial conditions (dust, humidity, temperature fluctuations) with IP65-rated protection.

Applications

Ideal for:

AGV/AMR Safety: Collision avoidance, path planning, and zone monitoring.
Forklift/Floor Equipment: Obstacle detection in warehouses, factories, and logistics hubs.
Industrial Automation: Perimeter security, robotic guidance, and automated material handling.
