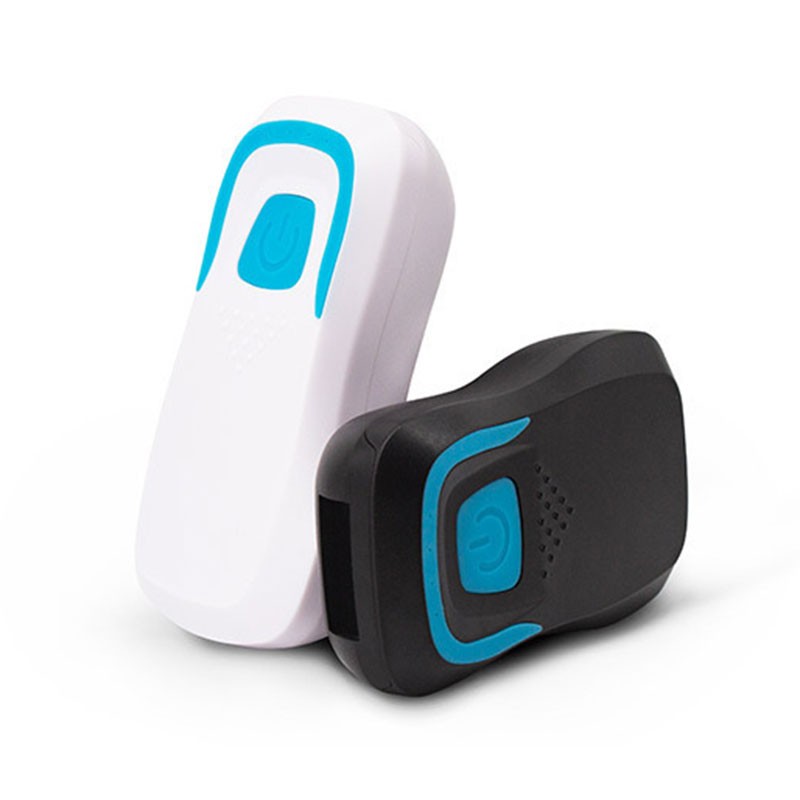

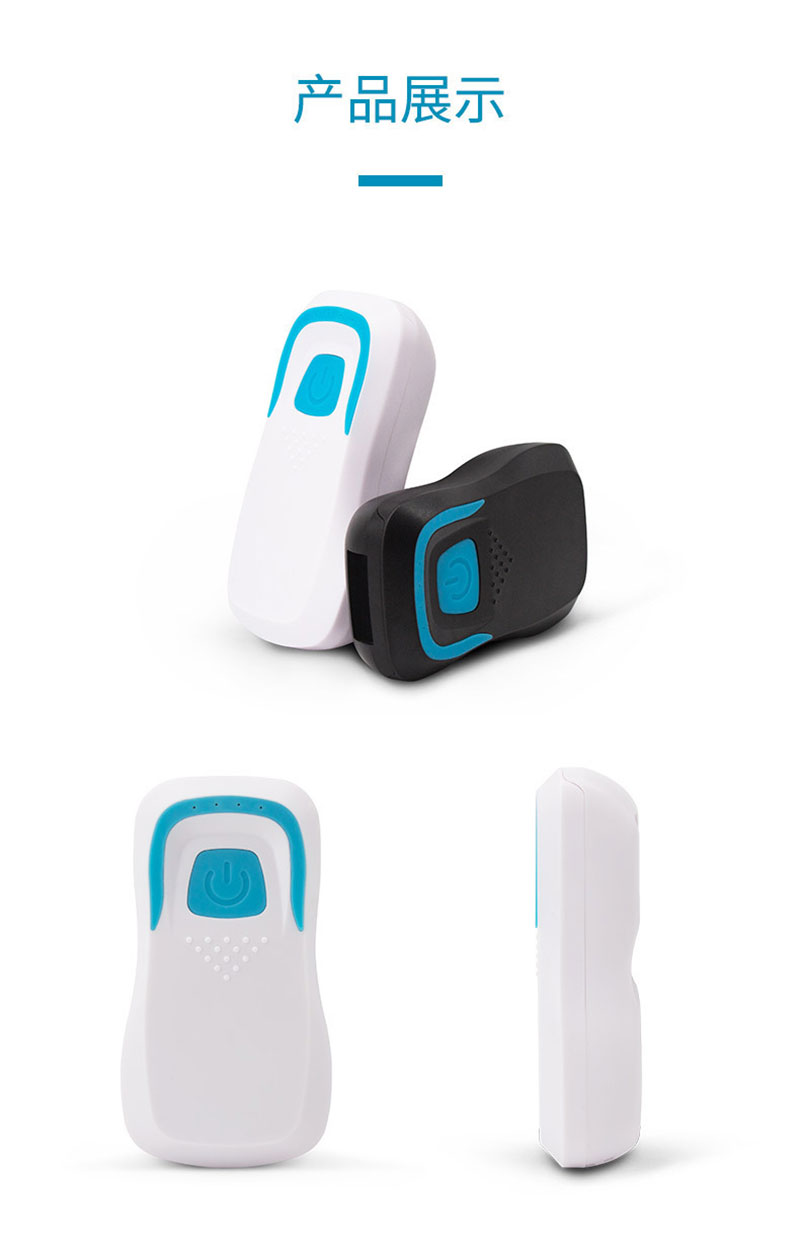

This is a versatile, plug-and-play wireless Bluetooth reader that integrates three core functions: it reads IC/NFC/RFID cards, scans 1D/2D and on-screen barcodes (QR codes), and operates as a high-frequency tag reader. Utilizing 13.56MHz RFID technology, it connects seamlessly via Bluetooth or 2.4G wireless to devices like Android and iOS smartphones, tablets, and PCs, emulating keyboard input for effortless data transfer without requiring secondary development. Designed for portability and durability, it features a long-lasting battery and is built for reliable performance in various identification and data collection scenarios.
The HX-R58C is a dedicated 13.56MHz high-frequency contactless RFID Card reader that integrates wireless RFID technology with Bluetooth communication. It adopts a keyboard-emulation output mode via Bluetooth, requiring no secondary development and enabling true plug-and-play operation. The reader can directly input swiped IC card data (card number) into text fields on Android and iOS smartphones, tablets, and desktop computers. It supports multiple data output formats, with 8-digit hexadecimal as the default, and allows customization of the output data format.
In addition to its plug-and-play convenience, the HX-R58C is highly energy-efficient, offering a standby time of up to 3 years. It replaces traditional wired data transfer methods and does not require an external power source, as it is equipped with a built-in lithium battery. Once the Bluetooth on the receiving device is successfully paired with the reader, the RFID card's UID can be transmitted directly to the receiving device via Bluetooth.
All-in-One Functionality: Combines contactless card reading (RFID/NFC), barcode scanning, and high-frequency code reading in a single handheld device.
True Plug & Play: Bluetooth connection emulates a keyboard (HID proFile). Once paired, card or barcode data is instantly sent to any text field, eliminating the need for dedicated apps or SDKs.
Broad Compatibility: Supports major IC/NFC chips (S50, S70, Ultralight, CPU, FM11RF08) compliant with ISO14443A/B and reads common 1D/2D barcodes.
Wireless & Long-Range: Stable wireless communication up to 10 meters. Features a large 1000mAh battery supporting up to 1 year of standby time on a full charge.
User-Friendly Design: Simple one-button pairing (no PIN), clear multi-color LED status indicators, and an audible buzzer for operation feedback.
Multi-Platform Support: Compatible with iOS, Android, Windows (XP/7/10/11), and Linux systems with Bluetooth capability.
Parameter | Detail |
|---|---|

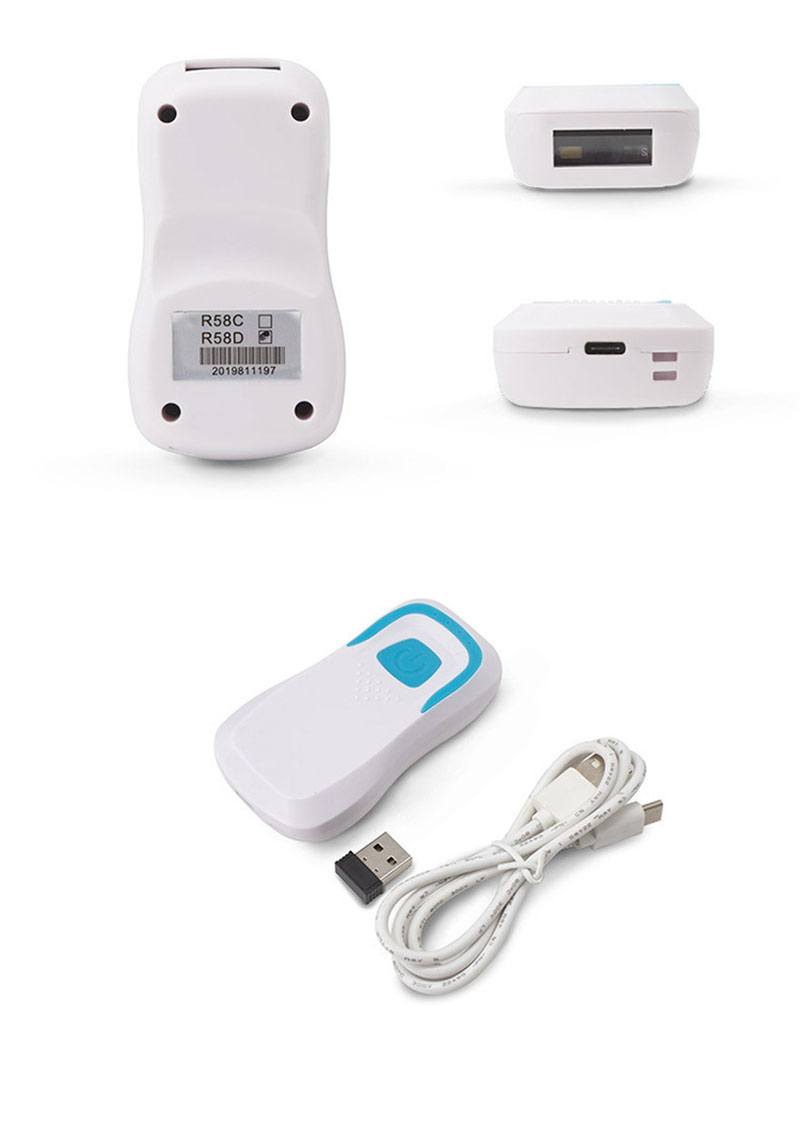

Model | R58B / R58C / R58D |
Core Functions | RFID/NFC Card Reader, Barcode (QR Code) Scanner |
Supported Cards | ISO14443A/B protocol chips (e.g., MIFARE S50, S70, Ultralight, CPU, FM11RF08, TK4100) |
Supported Barcodes | 1D Barcodes, 2D QR Codes, On-Screen Codes |
Operating Frequency | 13.56 MHz (for RFID/NFC) |
Wireless Connectivity | Bluetooth (HID Profile) / 2.4G Wireless |
Read Distance (Card) | 20mm - 60mm (card-dependent) |
Read Speed | < 0.1 seconds per card |
Data Rate | 106 Kbps |
Default Output Format | 8-digit Hexadecimal (software configurable to Decimal, etc.) |
Battery | 1000mAh Li-ion, Charging via 5V Micro-USB |
Operating Temperature | -20°C to 70°C |
Dimensions (Device) | Approx. 105mm x 48mm x 25mm |
Weight | ~50g (device only) |
Auto-Sleep | Activates after 60 seconds of inactivity |
