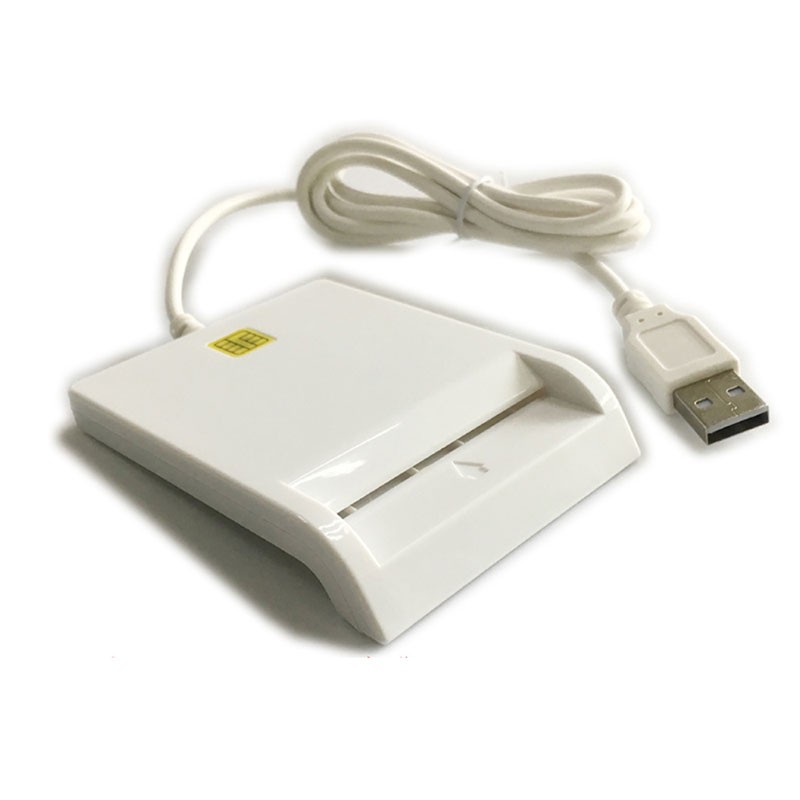

N58 USB Contact Smart Card Reader | EMV Certified, ISO 7816 Reader/Writer for eID & Banking

The N58 is a versatile and cost-effective contact smart card reader/writer, engineered for reliability and broad compatibility in secure data exchange. It fully supports the EMV 2000 Level 1 standard and adheres to ISO 7816 protocols, making it an ideal solution for applications ranging from smart metering and pay-TV to network security and digital identity management. Certified by EMVCo and Microsoft WHQL, it offers plug-and-play USB connectivity and is compatible with a wide range of operating systems. Its robust design, supporting cards from 5V to 1.8V, ensures seamless integration for home banking, secure login, email encryption, membership systems, and e-voucher processing.

Shop

Technical Parameters & Specifications

Model: N58 Contact Smart Card Reader/Writer
Host Interface:

Connection: Full-Speed USB 2.0 (12 Mbps), bus-powered.
Cable: Integrated 1.2m cable with USB Type-A connector.
Standard: Compliant with USB CCID specification.

Smart Card Interface:

Protocols: Supports T=0 and T=1 communication protocols.
Card Support: ISO 7816 Class A (5V), Class B (3V), and Class C (1.8V) smart cards.
Performance: Communication speed up to 420 kbps; operating frequency up to 8 MHz (via PPS).
Connector: 8-contact ISO 7816 connector, rated for 100,000 insertions. Features short-circuit protection.

General Specifications:

Dimensions: 85.5mm (L) x 72mm (W) x 17mm (H).
Weight: 110g.
Indicator: One bi-color LED (Yellow-Green/Red) for power and status.
Operating Temperature: 0°C to 50°C.
Operating Humidity: Up to 90% non-condensing.

Software & Compatibility:

Operating Systems: Windows (98SE, ME, 2000, XP, Vista, Server 2003), Windows CE, macOS, Linux, Solaris.
APIs: Native PC/SC support; CT-API via a PC/SC wrapper.

Certifications & Compliance:

Standards: EMV 2000 Level 1, PC/SC.
Safety & Regulatory: CE, FCC Class B, cULus, VCCI, ICES-003, USB-IF.
Environmental: RoHS, WEEE, REACH compliant.
Microsoft WHQL Certified for listed Windows OS.

Functional Description

Universal Smart Card Support: Reliably reads and writes to a vast array of contact-based smart cards, including EMV banking cards, national eIDs (like Taiwan Health Insurance cards), DNIs, and memory cards, thanks to its multi-voltage (5V/3V/1.8V) design and T=0/T=1 protocol support.
High-Speed & Certified Performance: Offers fast data transfer rates (up to 420 kbps) for efficient transaction processing. Its EMV 2000 Level 1 certification ensures compatibility and reliability for secure financial and identity verification applications globally.
Plug-and-Play Across Platforms: Provides effortless integration with desktops and embedded systems via standard USB CCID and PC/SC drivers, ensuring broad compatibility across Windows, macOS, Linux, and other operating systems without the need for custom drivers.
Robust & Durable Design: Built for intensive daily use with a card connector rated for 100,000 insertions, making it suitable for high-traffic environments like service kiosks, point-of-sale terminals, and corporate Access Control points.
Multi-Industry Application Ready: A versatile Tool perfect for diverse sectors, including utilities (smart meters), telecommunications (set-top boxes), finance (home banking), IT security (secure login/email encryption), and retail (loyalty/e-voucher programs).
