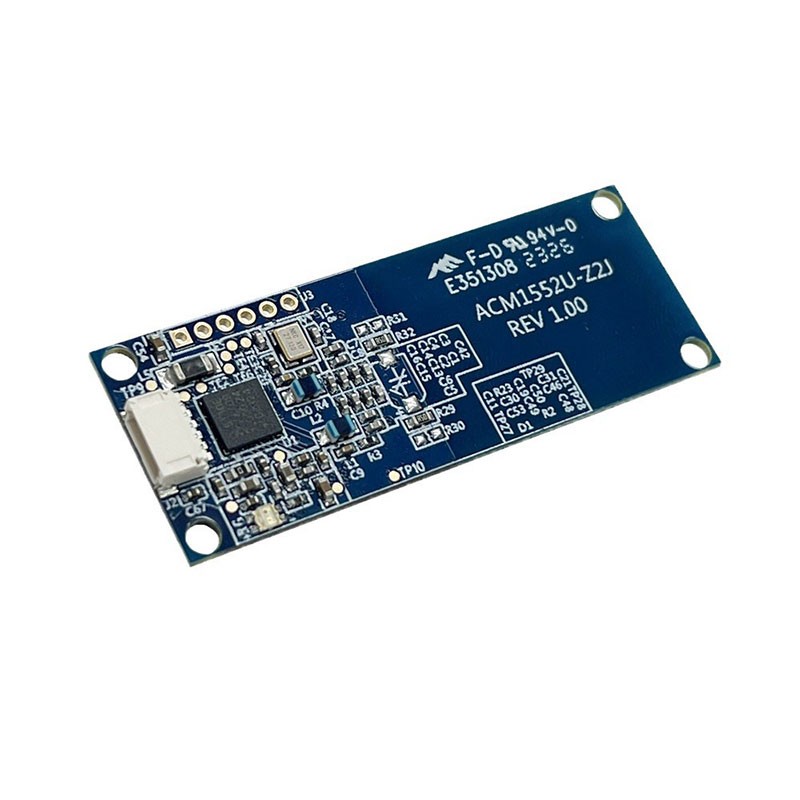

Miniature NFC Reader Module | Embedded RFID 848kbps | USB CCID | PC/SC

It is a miniature NFC reader module operating at 13.56MHz, specifically engineered for embedded systems integration. Fully compliant with CCID and PC/SC standards, it offers a plug-and-play experience. This module uniquely integrates three NFC operational modes—Smart Card Read/Write, Card Emulation, and Keyboard Emulation (configurable via a dedicated tool)—and delivers high-speed communication up to 848kbps. It is an ideal, versatile all-in-one solution for demanding smart card applications requiring compact and flexible device integration.

Key Features

Versatile NFC Operation: Supports Smart Card Read/Write, Card Emulation, and Keyboard Emulation modes.
Broad Compatibility: Supports ISO 14443 A & B, ISO 15693, ISO 18092 (NFC) standards. Compatible with MIFARE Classic®, DESFire®, Ultralight®, Plus®, FeliCa, and Topaz cards.
High-Performance Reading/Writing: Contactless read/write speed up to 848 kbps. Features a built-in antenna with a read range of up to 70mm (depending on tag type).

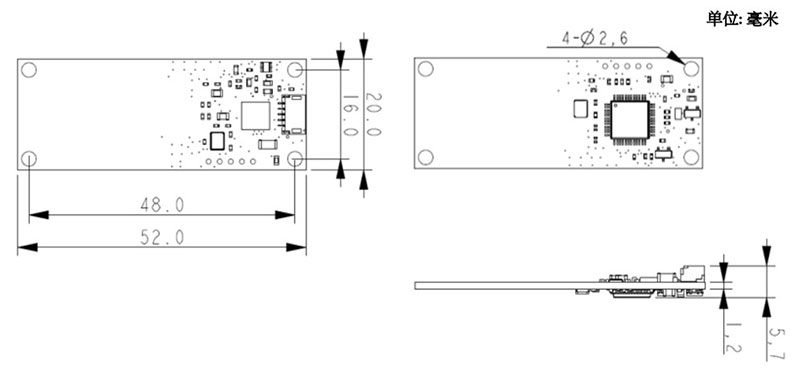

Compact & Lightweight Design: Ultra-small form factor measuring 52.0 x 20.0 x 5.7 mm and weighing only 3.4g, perfect for space-constrained devices like handheld terminals and kiosks.
Standard Interface & Protocols: Utilizes a USB 2.0 Full-Speed (12 Mbps) interface, backward compatible with USB 3.0, and complies with the CCID standard. Provides PC/SC and CT-API application programming interfaces for easy development.
High Integration & Reliability: Features built-in anti-collision functionality and supports extended APDU (up to 64KB). Includes a user-controllable dual-color (Blue/Green) LED status indicator and supports firmware upgrades via USB.
Flexible Connectivity: Uses a detachable 1-meter USB cable (sold separately) with a 5-pin, 1.0mm pitch connector compatible with JST SH series.

Technical Specifications

Category	Details
Physical Characteristics	Dimensions: 52.0 x 20.0 x 5.7 mm; Weight: 3.4g
USB Interface	Protocol: USB CCID; Speed: USB 2.0 Full-Speed (12 Mbps), USB 3.0 compatible; Power: Bus-powered via USB; Cable: 1m detachable cable (sold separately)
Contactless Smart Card Interface	Standards: ISO 18092 NFC, ISO 14443 A & B, ISO 15693, MIFARE®, FeliCa Protocols: ISO 14443-4 (T=CL), MIFARE® Classic (T=CL), ISO 15693, ISO 18092 NFC Tags, FeliCa Communication Speed: Up to 848 kbps
Components	LED Indicator: One user-controllable dual-color LED (Blue/Green)
