Low-Frequency Animal Ear Tag Reader for Pigs Cattle Sheep – FDX-B & EMID Compatible

Features

1. Dual Frequency Support: Operates at 125 kHz and 134.2 kHz.




2. Protocol Compatibility: Reads FDX-B and EMID standard tags, compliant with ISO 11784/85.




3. Auto-Tuning Circuit: Automatically adjusts to different environments for consistent read performance and easy installation.




4. Robust Protection: Equipped with surge protection, over-voltage protection, and a high IP rating (IP65/IP67) for dust, water, and shock resistance.




5. Strong Read Performance: Read distance up to 40 cm (depending on tag), read speed up to 2 m/s, and fast read time of 30 ms.




6. Stable & Reliable: Long-term performance without drift, tested over millions of read cycles.




7. Compact & Flexible: Lightweight and compact design for easy installation.




Parameters

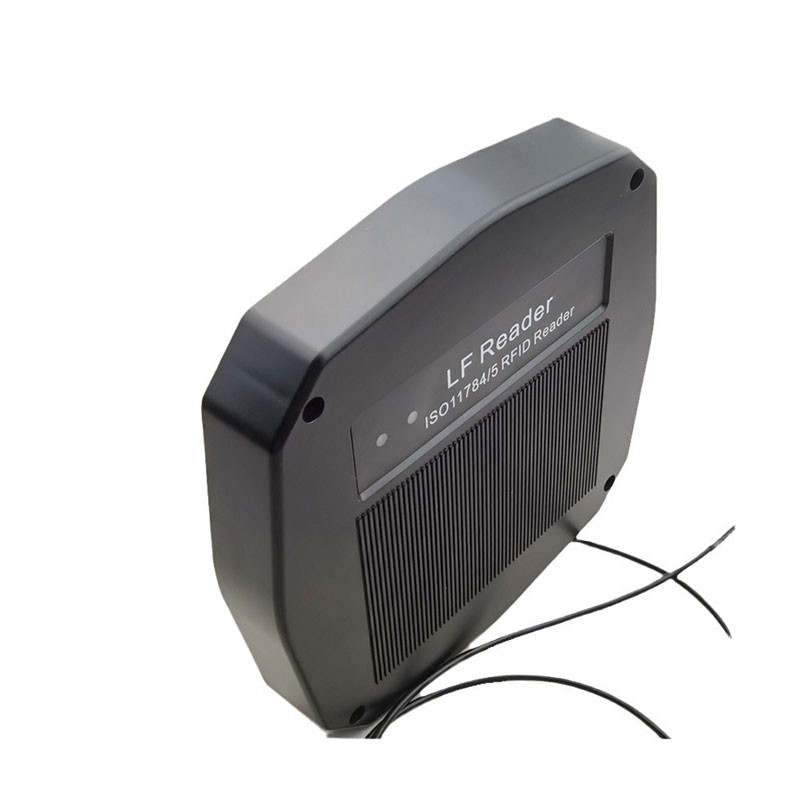

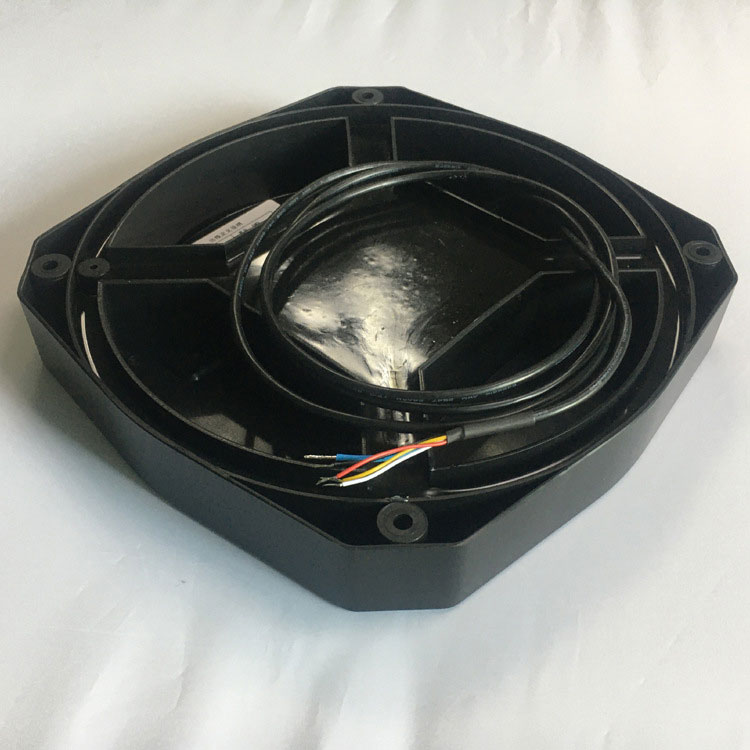

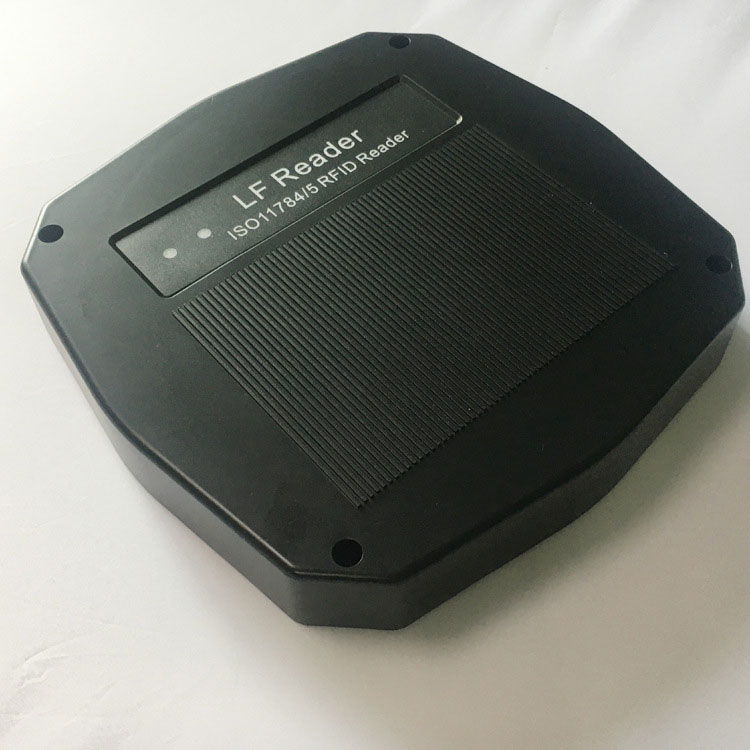

RS232/485 (Modbus RTU) Low-Frequency Animal Ear Tag Reader for Pigs, Cattle, and Sheep – L8600 Series.

The L8600 Series is an electronic ear tag reader based on RFID technology, also known as an electronic ear tag reader or electronic ear tag card reader. It integrates the controller, amplifier, and antenna into one unit, offering stability and durability.

Operating at 134.2 kHz and 125 kHz, it complies with the ISO 11784/85 international standard and supports reading FDX-B and EMID protocol electronic tags, ensuring strong compatibility. The reader integrates the RF communication protocol internally and can connect to PCs, PLCs, or microcontrollers. Users can receive ear tag data directly via the RS232/RS485 communication interface without dealing with complex communication protocols. For users requiring custom communication or networked applications, standard MODBUS TCP Ethernet and MODBUS RTU bus protocols are available as options.

Equipped with an Auto-tuning circuit, a key feature of this series is its automatic tuning function upon power restoration. Under varying environmental conditions, the auto-tuning ensures easy installation, optimal performance, and no degradation in read range over long-term use.

With surge protection, over-voltage self-cutoff protection, and an IP67 rating for dust, water, and shock resistance, the reader is rugged and reliable, capable of stable operation even in harsh environments. It maintains stable performance without interference when multiple readers are used nearby, offering high reception sensitivity, stable performance, and strong reliability.
