ACR40U Contact Smart Card Reader | CAC, Mykad, SIPRNET Card Reader for Multi-OS

The ACR40U is a professional-grade contact smart card reader designed for high-security and versatile identification applications. It excels in reading and writing to a wide array of international smart cards, including CAC, Mykad, SIPRNET, and J-LIS cards. Engineered for durability and broad compatibility, it supports vertical and horizontal card insertion (via an included stand), connects via USB-A or USB-C, and works seamlessly across all major desktop and mobile operating systems. Its compliance with key international standards (EMV, PBOC, PC/SC, CCID) makes it a reliable and future-proof solution for government, enterprise, finance, and access control systems.

Shop

Parameters & Specifications

Model: ACR40U
Card Interface:

Slot: 1 full-size slot (friction-type, rated for 200,000+ insertions).
Supported Cards: ISO 7816 Class A, B, C (5V, 3V, 1.8V); Microprocessor cards (T=0, T=1); Memory cards; MyKad, CAC, J-LIS, SIPRNET.
Features: Supports PPS (Protocol and Parameter Selection), short-circuit protection.
Speed: Read/Write speed from 9.6 to 600 Kbps.

Host Interface:

Type: USB 2.0 Full Speed (12 Mbps), compatible with USB 3.0.
Connectors: Fixed 1m cable with choice of USB Standard-A or USB Type-C plug.

Physical:

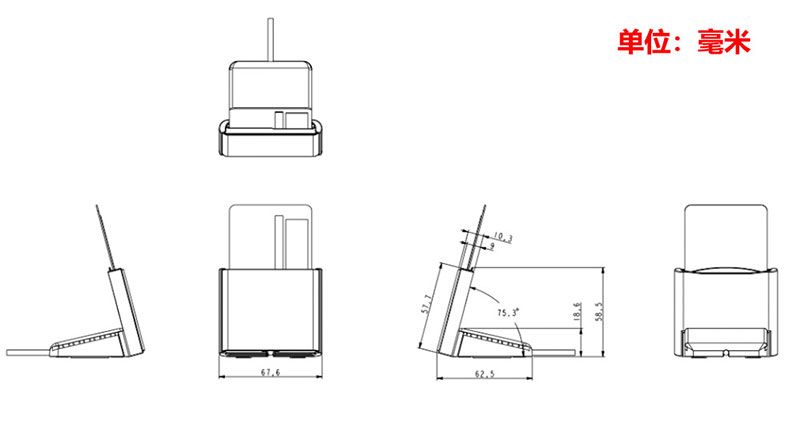

Dimensions: 62.5mm (L) x 67.6mm (W) x 58.5mm (H).
Weight: 65g ± 5g.
Color: White.
Indicators: Dual-color LED (Blue/Green) for status.
Accessory: Includes stand for vertical/horizontal configuration.

General:

Operating Systems: Windows, Linux, macOS, iOS, iPadOS, Android, Solaris.
Standards/API: PC/SC, USB CCID, Microsoft WHQL.
Certifications: CE, FCC, UKCA, VCCI, RoHS, REACH, UL 62368 / IEC 62368, EMV Level 1 (Contact), PBOC Level 1 (Contact), KC, J-LIS.
Power: 5V DC, max. 50mA.
Operating Temp: 0°C to 65°C.
MTBF: 600,000 hours.
Features: In-field firmware upgrade support, user data storage on device.

Function Description

Broad Card Compatibility: Universally reads and writes to a comprehensive range of contact-based smart cards used for national ID (Mykad, J-LIS), government/military access (CAC, SIPRNET), banking (EMV/PBOC), and general secure microprocessing.
Flexible Deployment: The included stand allows the reader to be positioned vertically (wall-mount or desktop) or horizontally, adapting to various kiosk, point-of-sale, or office setups.
Universal Connectivity & Compatibility: Offers both USB-A and USB-C connection options for modern and legacy hardware. Its plug-and-play drivers and compliance with PC/SC and CCID standards guarantee out-of-the-box operation across Windows, macOS, Linux, Android, iOS, and more.
High Reliability & Security: Built to last with a high MTBF and card slot durability. Meets stringent international safety (UL, IEC) and industry-specific standards (EMV, PBOC) for secure financial and identity transactions.
Developer & User-Friendly Features: Provides clear visual status via LEDs and supports advanced features like firmware updates and on-device data storage for customized application scenarios.
