Industrial RFID Digital Torque Wrench with Smart Alarm & Tracking | High Precision

Product Description

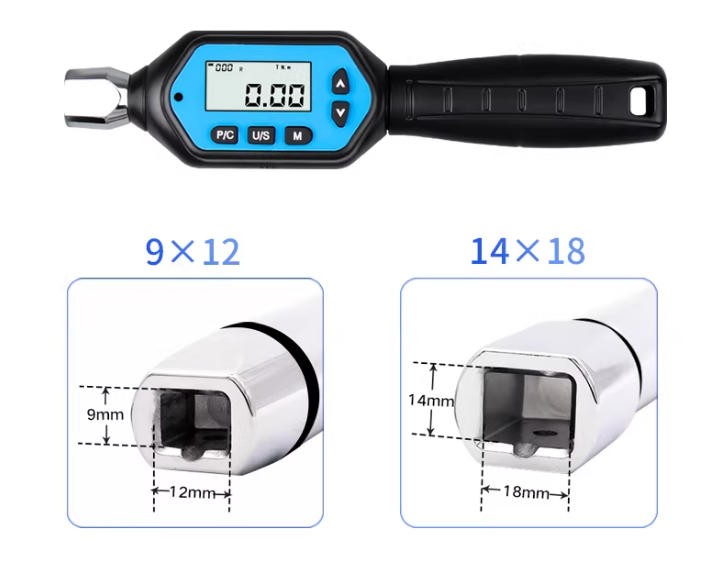

This is a professional-grade, RFID-enabled electronic torque wrench designed for precision-critical industrial applications. It combines a high-precision digital measuring system with smart Asset MANAGEMENT capabilities. The wrench features a large LCD screen, an ergonomic handle, and a distinctive blue control panel housing multiple function keys (P/C, U/S, M, ∧, ∨). A key innovation is its integrated RFID chip, which transforms it from a standalone Tool into a trackable asset within a digital ecosystem. The product supports interchangeable heads, such as the 9×12mm and 14×18mm square drives shown, and offers multiple operation modes. Its standout feature is a progressive audio-visual alarm system that provides clear, incremental warnings (beeps and LED indicators) as the applied torque approaches and reaches a preset target value, ensuring perfect fastening every time. Rendered in a clean industrial aesthetic, it is built for durability and accuracy in automotive, aerospace, manufacturing, and maintenance settings.

Product Parameters

• Display & Interface: Large digital LCD screen. Control buttons for Power/Calibration (P/C), Unit Selection (U/S), Mode (M), and Up/Down (∧/∨) adjustment.

• Models & Torque Ranges: Available in five models covering a wide spectrum:

• ZWM-D-10: 0.3 - 10.0 N·m

• ZWM-D-30: 0.9 - 30.0 N·m

• ZWM-D-60: 1.8 - 60.0 N·m

• ZWM-D-100: 3.0 - 100.0 N·m

• ZWM-D-135: 4.0 - 135.0 N·m

• Accuracy: Clockwise: ±2%; Counter-clockwise: ±2.5% (within 20%-100% of full scale).

• Resolution: From 0.001 N·m to 0.1 N·m depending on model.

• Measurement Units: N·m, kgf·cm, lbf·ft, lbf.in.

• Interchangeable Head: Standard square drive heads (e.g., 1/4", 3/8", 1/2") with connection size 9×12mm.

• Head Type: Bidirectional 72-tooth ratchet.

• Smart Features: Integrated RFID tag for tool identification and tracking.

• Data Storage: Capacity for 999 torque value records.

• Power: 2 x AAA batteries.

• Operating Temperature: -10°C to 60°C.

Core Functions

1. Three Operational Modes:

• Real-Time Mode (T): Dynamically displays the torque being applied; resets to zero when force is released.

• Peak Mode (P): Captures and holds the maximum torque value applied during an operation.

• Preset Mode (Pre): Allows user to set a target torque value and activates the smart alarm system.

2. Intelligent Progressive Alarm: Provides clear, multi-stage audio (beeps) and visual (LED lights) warnings as torque approaches the preset target (at 80%, 85%, 90%, 95%, and 100%), preventing under or over-torquing.

3. RFID Asset Management: The embedded RFID tag enables instant, wireless identification for automated tool check-in/out, inventory audits, and tracking within a smart tool management system, preventing loss and ensuring calibration control.

4. Precision Measurement & Data Logging: Delivers high-accuracy torque measurement with selectable units, and Stores up to 999 readings for quality control documentation and process traceability.
