This RFID Screw Tag, also known as a Data Bolt, is an industrial-grade embedded identification solution designed for direct and permanent mounting onto metal assets. Encapsulated within a robust metal bolt housing, it overcomes the signal interference common with standard RFID tags on metal surfaces. It enables reliable wireless identification and data management for critical applications such as die-cast aluminum parts in workshops and components on automotive production lines. Its durable construction ensures performance in harsh industrial environments involving high temperatures, moisture, and physical stress.
Direct Metal Mounting: The integrated bolt design allows for easy, secure, and permanent installation directly onto metal objects using standard Tools, providing a seamless and protected identification point.
Industrial Environment Proof: Engineered to withstand challenging conditions, featuring high resistance to high temperatures, water (IP67 rating), chemicals, oils, and corrosion.
Reliable Performance on Metal: Specially designed antenna ensures stable and consistent read/write performance even when attached directly to metal surfaces, eliminating signal blockage.
Asset Lifecycle Management: Facilitates wireless data collection for production tracking, equipment maintenance, tool management, and asset inventory throughout the item's lifecycle.
Parameter Category | Specification / Description |
|---|---|
Product Type | RFID Screw Tag / Data Bolt / Embedded Code Carrier |
Common Applications | Wireless ID for die-cast aluminum parts, automotive production lines, tool management, asset tracking, equipment inspection, pallet management. |
Key Standards | ISO 15693 (for one model), ISO/IEC 18000 series (implied for UHF), GB/T 3098.1 for mechanical properties. |
Core Capabilities | Anti-Metal, High-Temperature Resistant, Waterproof (IP67), Chemical/Oil Resistant. |

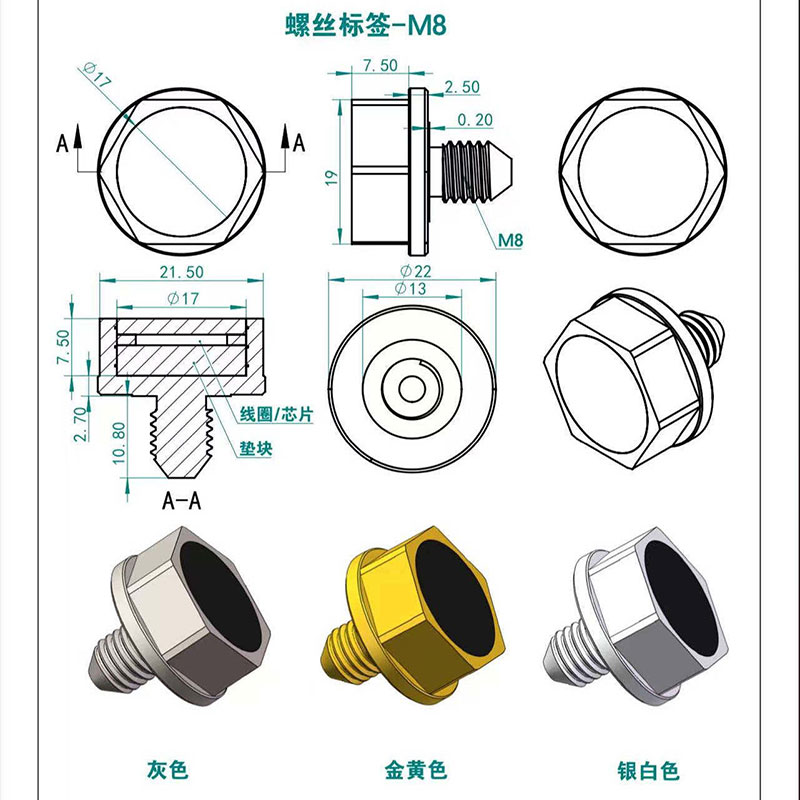

Available Models & Dimensions | Multiple thread sizes available (e.g., M8, and likely M10, M12, M14). Example dimensions: Ø13x17mm, Ø17x19mm, Ø22x28.7mm. |
Materials | High-strength steel options: 42CrMo Steel or 45# Steel with Nickel Plating. |
Mechanical Performance | High grade (e.g., 12.9), with specified hardness (385-435HV) and tightening torque (e.g., 12N.m, 23N.m). |
Environmental Rating | IP67 per EN 60529 (dustproof and waterproof). |
Temperature Range | Operating: e.g., -25°C to +85°C / Up to +180°C for other variants. Storage: up to +160°C / +220°C. |
Data Retention | >10 years. |
Note: Specific parameters like frequency (13.56MHz HF or 860-960MHz UHF), chip model, and memory may vary by product variant. Refer to exact model specifications for details.
