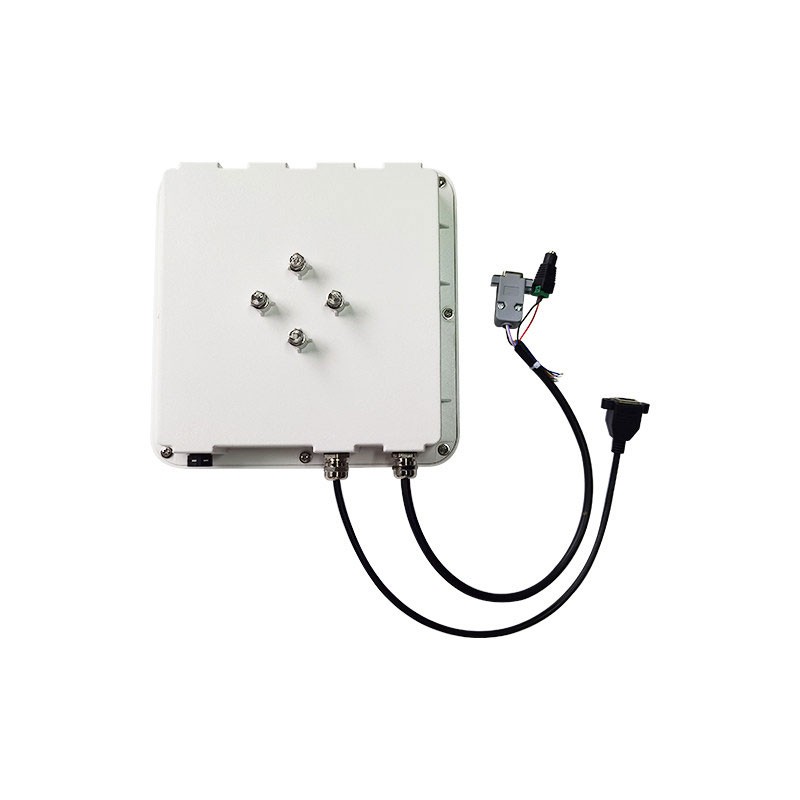

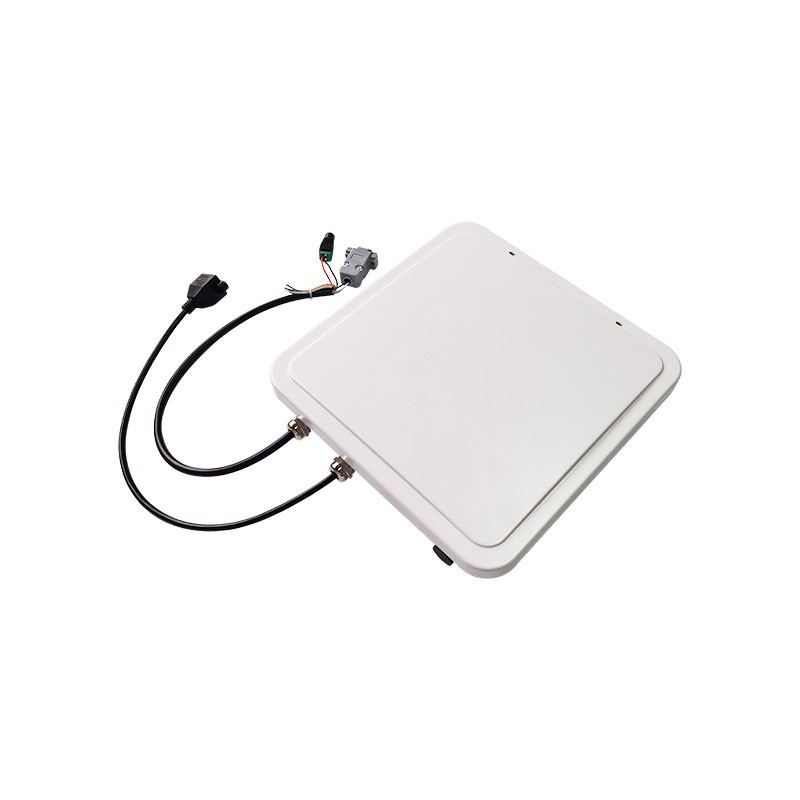

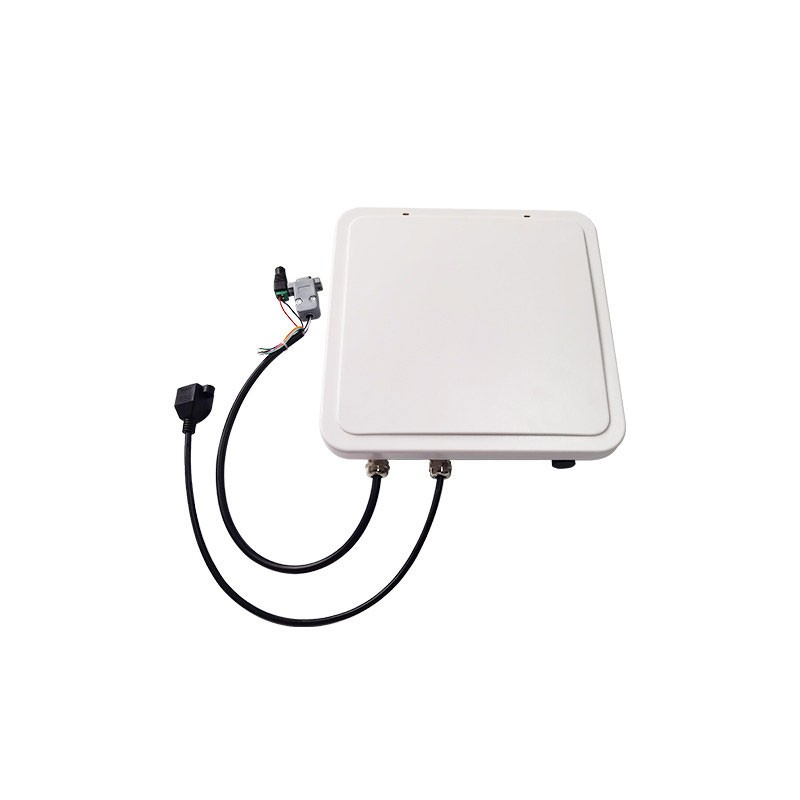

2.4G Long - Distance Integrated RFID Reader

2.4G Long - Distance Integrated RFID Reader

The 2.4G long - distance integrated RFID reader is a high - performance active electronic tag reader with independent intellectual property rights. By combining a proprietary efficient electronic tag collision processing algorithm, it achieves fast read/write processing of electronic tags while maintaining a high recognition rate. It can be widely used in vehicle management, intelligent transportation, electric vehicle anti - theft systems, safe campus/home - school communication, asset management, warehousing, and logistics management.

Technical Parameters

Parameter	Specification
Dimensions	226×226×68mm
Weight	4.0Kg
Packing Weight	4.5Kg
Packing Dimensions	40.5×30.5×10.5cm
Shell Material	ABS
Device Color	Gray - white
Operating Temperature	- 20~+60℃
Storage Temperature	- 40~+85℃
Operating Humidity	5%~95% RH, Non - condensing
Waterproof Grade	IP65
Working Frequency	2.4G (Software - adjustable)
Antenna Specification	9dBi, Circularly Polarized Antenna
Reading Distance*	0 - 200m *Effective distance is related to protocol format, external antenna, electronic tag and working environment
Writing Distance*	0 - 100m *Effective distance is related to protocol format, external antenna, electronic tag and working environment
Reading Speed	200 times/s
Reading Prompt	Buzzer
Working Voltage	DC + 9V - 24V, 12W
Working Modes	Active Mode, Command Mode, Trigger Mode, Password Mode
Communication Interfaces	RS232, RS485, Wiegand, Trigger (Customizable: Relay, USB, RJ45, WIFI, POE, 4G); RJ45 (Supports TCP Client/Server, modbus, DNS, DHCP); WIFI (Supports TCP Client); 4G (Supports TCP Client); HTTP (Customizable), MQTT (Customizable), LLRP (Customizable)
SDK Development Kit	Supports X86 & X64, C++, C#, VB, Delphi, Linux, ARM, Python, NodeJS, QT, JAVA, Android and other languages.

3. Functional Features

Independent Intellectual Property Design: It has its own intellectual property, ensuring technical uniqueness and reliability.
Long - Distance Reading with 9dBi Antenna: The external 9dBi circularly polarized antenna enables a maximum reading distance of up to 200 meters (adjustable).
High Recognition Accuracy: The recognition accuracy is above 99.99%.
Strong Anti - Collision Ability: It can read all 200 tags within a few seconds.
Tag Type Compatibility: It only reads 2.4G active electronic tags.
Multiple Working Modes: It supports active mode, command mode, trigger mode, and password working mode.
Flexible Power Supply: It is powered by DC12V and can support a maximum of 24V power supply.
Rich Communication Interfaces: It supports RS232, RS485, Wiegand, trigger (customizable relay, USB, RJ45, WIFI, POE, 4G).
Relay Control: One relay (customizable) can control high - power equipment such as buzzers, motors, and lights.
Protocol Support: It supports the ModBus protocol (limited to RS232, RS485, RJ45 interfaces).
*Note: The effective distance is related to the protocol format, external antenna, electronic tag, and working environment.

4. Application Scenarios

Intelligent Parking Lot: For vehicle Access Control and parking management.
Electric Vehicle Management: For electric vehicle anti - theft and access management.
Safe Campus & Home - School Communication: For personnel access control, attendance, and campus safety management.
Asset MANAGEMENT: For tracking and managing fixed assets.
Warehousing & logistics Management: For cargo identification and logistics tracking.
