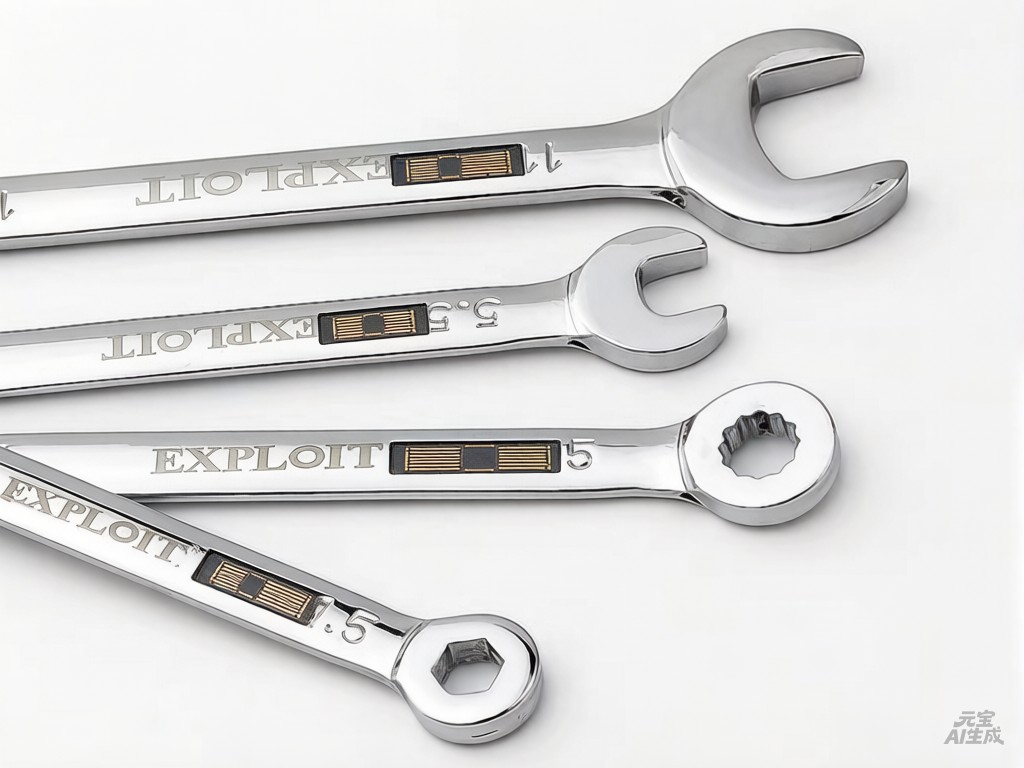

This image presents a set of industrial-grade precision wrenches integrated with RFID technology. Four wrenches are meticulously aligned on a clean white background, showcasing their robust and polished metal construction. A defining feature is the embedded RFID chip on each handle, housed within a distinct rectangular block. Each chip is clearly marked with a numerical identifier (e.g., 5, 5.5, 11, 3.5), which corresponds directly to the wrench size, enabling instant digital recognition. This design bridges traditional durability with modern smart tool management, making it an essential solution for controlled industrial environments where asset tracking, loss prevention, and operational efficiency are critical.
Material: High-strength, polished alloy steel for durability and corrosion resistance.
Brand & Marking: Clearly engraved with OEM branding. Each Tool features a visible, unique size marking.
RFID Technology: Each wrench has a passive UHF RFID tag embedded in the handle.
Tag Information: The RFID tag encodes a unique ID linked to the tool's specifications (e.g., size: 5, model).
Design: Ergonomic handle with a flat, integrated section for the RFID tag, ensuring it does not interfere with grip or function.
Instant Digital Identification & Tracking: The embedded RFID tag allows each wrench to be instantly scanned without line-of-sight, enabling rapid check-in/check-out, physical inventory audits in seconds, and real-time location tracking within a managed zone.
Tool Accountability & Loss Prevention: Links tool usage to specific users or jobs, creating a clear audit trail. Automated alerts can be set for tools removed from authorized areas, significantly reducing loss and misplacement.
Prevent Maintenance Errors: Ensures the correct size wrench is used for specific tasks by verifying the tool against digital work orders, enhancing precision and preventing damage from using incorrect sizes.
Streamlined Inventory Management: Eliminates manual counting. A reader can instantly identify all tools in a drawer or toolbox, providing accurate stock levels and usage data for optimized tool crib management.
(Based on the first image)
This image details the comprehensive specifications for a double open-end wrench (one straight, one angled). All dimensions are provided in both Imperial (Inch) and Metric (MM) units.
Technical Drawing Labels (Corresponding to the Diagram):
Overall Length: Total length of the wrench.
Width of Open End (C): The opening width of the wrench jaws.
Thickness (D): The thickness of the wrench head/material.
Detailed Dimension Table:
Overall Length (cm) | Open End (Imperial) | Angled Open End (Imperial) | Open End (Metric, mm) | Angled Open End (Metric, mm) | A (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|---|---|---|---|
9.9 | 7/16 | 7/16 | 11 | 11 | 20 | 18 | 6.2 | 2.8 |
9.6 | 3/8 | 3/8 | 10 | 10 | 18 | 16 | 6.1 | 2.6 |
9.6 | 5/16 | 5/16 | 9 | 9 | 18 | 16 | 6.1 | 2.6 |
8.8 | 1/4 | 1/4 | 8 | 8 | 15 | 13 | 6.0 | 2.4 |
8.8 | 9/32 | 9/32 | 7 | 7 | 14 | 13 | 6.0 | 2.2 |
8.3 | 13/64 | 13/64 | 6 | 6 | 12 | 11 | 6.0 | 2.1 |
8.3 | 15/64 | 15/64 | 5.5 | 5.5 | 12 | 11 | 5.9 | 2.2 |
7.3 | 7/32 | 7/32 | 5 | 5 | 11 | 10 | 6.0 | 2.1 |
7.3 | 5/32 | 5/32 | 4.5 | 4.5 | 5.8 | 2.3 | ||
3/16 | 3/16 | 4 | 4 | 5.9 |
Note:
Note: Due to manual measurement and variations between production batches, measured data may have a certain margin of error.
Technical Drawing Labels (Corresponding to the Diagram):
A: Overall dimension for the open-end side.
Open End: The size/width of the open jaw.
Width C: The width across the wrench beam.
Thickness D: The thickness of the wrench head/material.
B: Overall dimension for the box-end side.
Box End: The size of the box (12-point) opening.
Overall Length: Total length of the wrench.
Detailed Dimension Table:
Overall Length (cm) | Open End (Imperial) | Box End (Imperial) | Open End (Metric, mm) | Box End (Metric, mm) | A (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|---|---|---|---|
9.7 | 7/16 | 7/16 | 11 | 11 | 19 | 18 | 7.1 | 2.8 |
9.5 | 3/8 | 3/8 | 10 | 10 | 18 | 17 | 7.0 | 2.7 |
9.5 | 5/16 | 5/16 | 9 | 9 | 18 | 17 | 6.9 | 2.7 |
9.5 | 1/4 | 1/4 | 8 | 8 | 14 | 13 | 6.4 | 2.5 |
9.3 | 9/32 | 9/32 | 7 | 7 | 15 | 13 | 6.2 | 2.4 |
8.7 | 13/64 | 13/64 | 6 | 6 | 13 | 12 | 6.5 | 2.2 |
8.7 | 15/64 | 15/64 | 5.5 | 5.5 | 12 | 12 | 6.0 | 2.2 |
8.2 | 7/32 | 7/32 | 5 | 5 | 11 | 10 | 5.8 | 2.1 |
8.2 | 5/32 | 5/32 | 4.5 | 4.5 | 9 | 9 | 5.9 | 2.1 |
8.2 | 3/16 | 3/16 | 4 | 4 | 10 | 10 | 6.2 | 2.3 |
7.3 | 11/64 | 11/64 | 4.5 | 4.5 | 2.3 | |||
7.2 | 9/32 | 9/32 | 5.5 | 5.5 | 2.3 | |||
7.2 | 13/64 | 13/64 | 5 | 5 | ||||
7.2 | 15/64 | 15/64 | 4.5 | 4.5 | ||||
7.2 | 7/32 | 7/32 | 4 | 4 | ||||
7.1 | 5/32 | 5/32 | 5.5 | 5.5 |
Note:
Note: Due to manual measurement and variations between production batches, measured data may have a certain margin of error.
