2.4G Medium - Distance Integrated RFID Reader

2.4G Medium - Distance Integrated RFID Reader

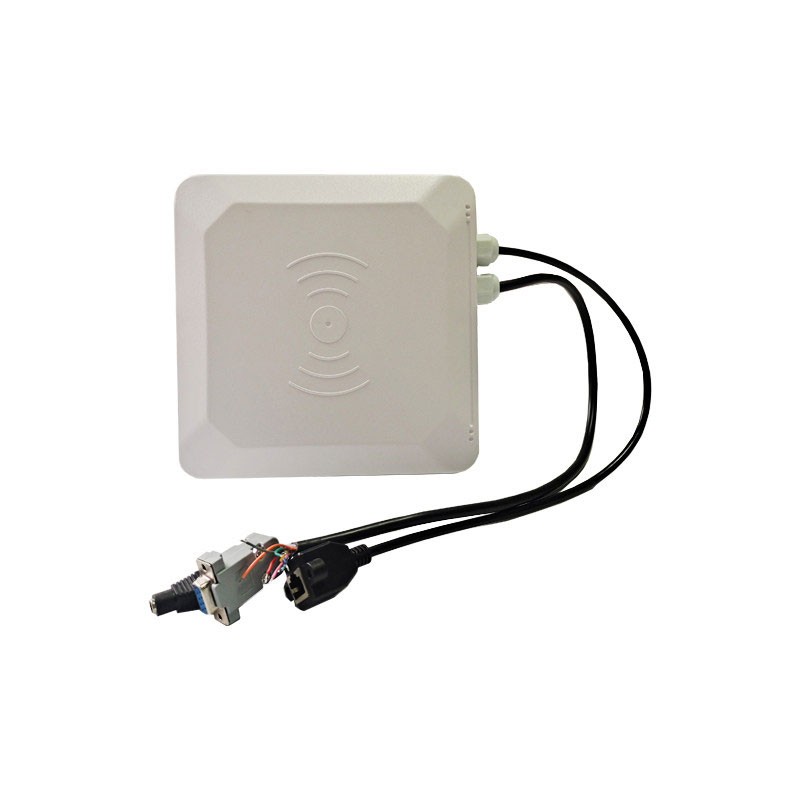

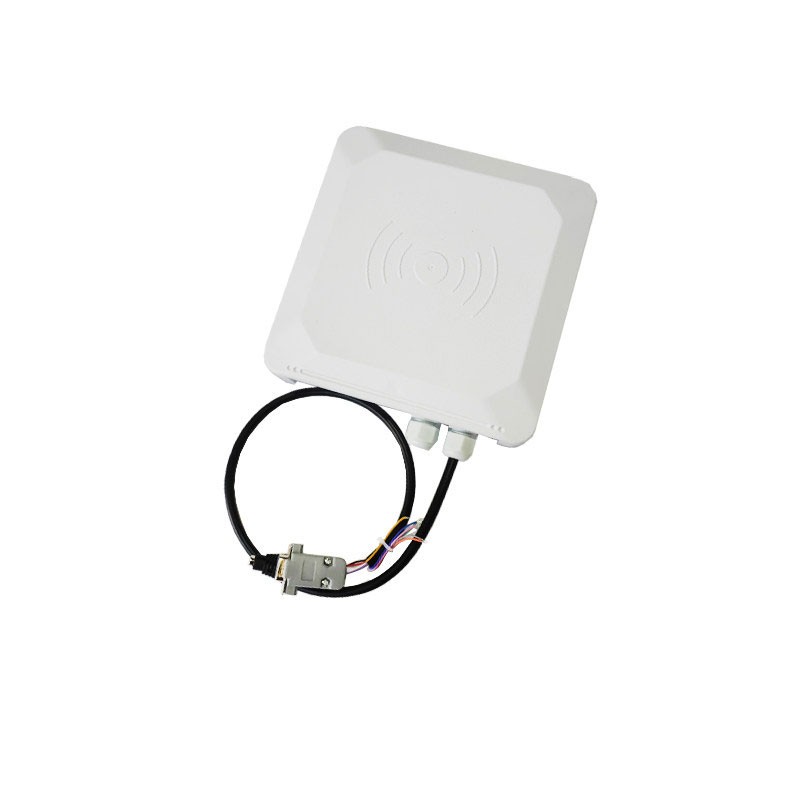

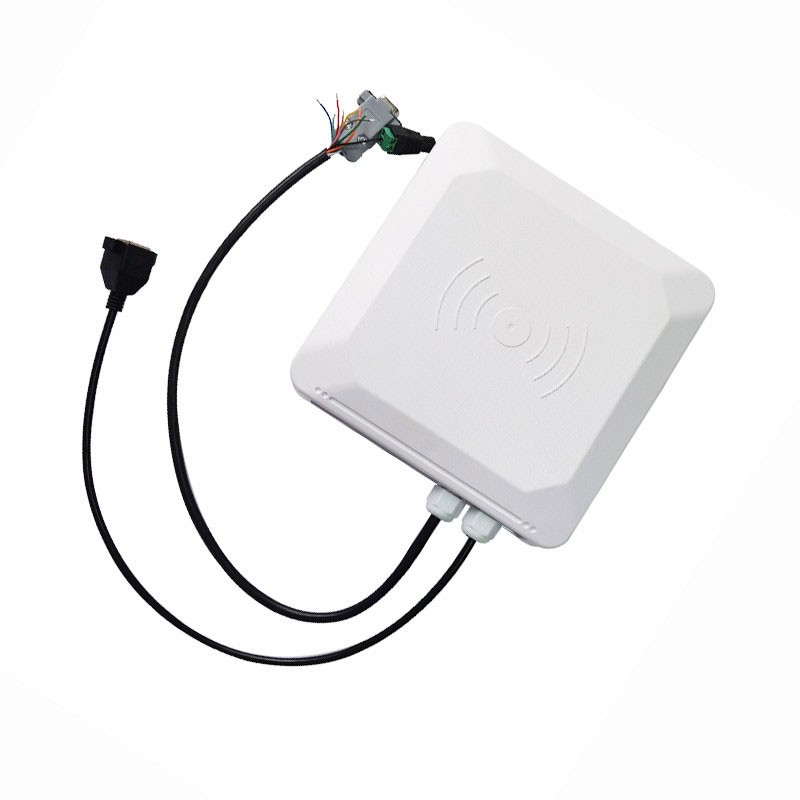

The 2.4G medium - distance integrated RFID reader is a high - performance active electronic tag reader with independent intellectual property rights. Combining a proprietary efficient electronic tag collision processing algorithm, it realizes fast read/write processing of electronic tags while maintaining a high recognition rate. It can be widely applied in vehicle management, intelligent transportation, electric vehicle anti - theft systems, safe campus/home - school communication, asset management, warehousing, and logistics management.

Technical Parameters

Parameter	Specification
Dimensions	190×190×50mm
Weight	2.5Kg
Packaging Dimensions	40.5×39.5×10.5cm
Shell Material	ABS
Color	White
Working Humidity	40% - 85% RH, non - condensing
Storage Temperature	- 20 ~ +60℃
Working Temperature	- 40 ~ +85℃
Protection Level	IP65
Working Frequency	2.4G (software - definable)
Antenna Type	Built - in PCB antenna
Effective Reading Distance*	- Effect effective dista Dnce related to protocol, external antenna, electronic tag, and working environment (with 8dBi external circularly polarized antenna, up to 10m)
Reading Speed	200 tags/sec
Power Voltage	DC 12V - 24Vsta (ndard 12V)
Working Mode	Active mode, command mode, trigger mode, password mode
Communication Interface	RS232, RS485, Wiegand, Trigger (customizable: Relay, USB, RJ45, WIFI, POE, 4G); RJ45 supports client/server, modbus, DNS, DHCP; WIFI supports client mode; HTTP (protocol customizable), MQTT (customizable), LPR (customizable)
SDK Development	Supports X86 & X64, C#, VB, Delphi, Linux, ARM, Python, NodeJS, QT, JAVA, Android, etc.

*Effective distance is related to protocol format, external antenna, electronic tag, and working environment.

3. Functional Features

Independent Intellectual Property: Self - developed design with proprietary technology.
High - Gain Antenna: External 8dBi circularly polarized antenna, maximum reading distance up to 10m.
High Recognition Accuracy: Recognition accuracy exceeds 99.99%.
Strong Anti - Collision Ability: Can read 200 tags within a few seconds.
Tag Compatibility: Only reads 2.4G active electronic tags.
Multiple Working Modes: Supports active mode, command mode, trigger mode, and password working mode.
Flexible Power Supply: DC12V power supply, maximum support for 24V power supply.
Rich Communication Interfaces: Supports RS232, RS485, Wiegand, Trigger (customizable Relay, USB, RJ45, WIFI, POE, 4G); RJ45 supports client/server, Modbus, DNS, DHCP; WIFI supports client mode; HTTP, MQTT, LPR are customizable.
Relay Control (Customizable): A relay (customizable) can control high - power equipment such as horns, motors, and lights.
ModBus Protocol Support: Supports ModBus protocol (limited to RS232, RS485, RJ45 interfaces).

4. Application Scenarios

Smart Parking Lot: For vehicle access management and parking space monitoring.
Electric Vehicle Management: Anti - theft and Access Control for electric vehicles.
Safe Campus & Home - School Communication: Personnel access control, attendance management, and student safety monitoring.
Asset MANAGEMENT: Tracking and management of fixed assets (e.g., equipment, Tools).
Warehousing & logistics: Inventory management and cargo tracking.
Intelligent transportation: Vehicle identification and traffic flow monitoring.
