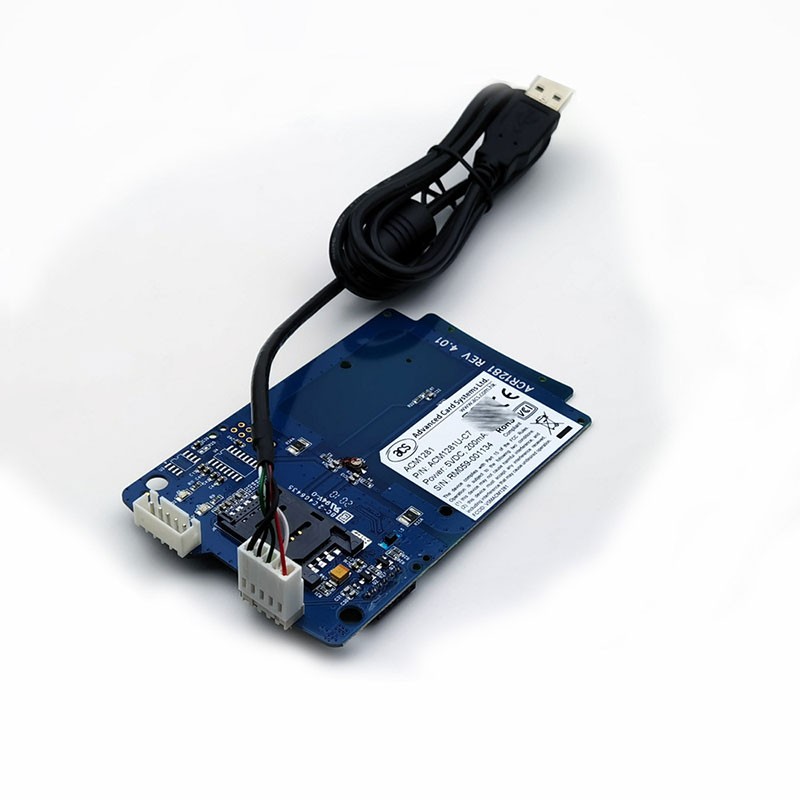

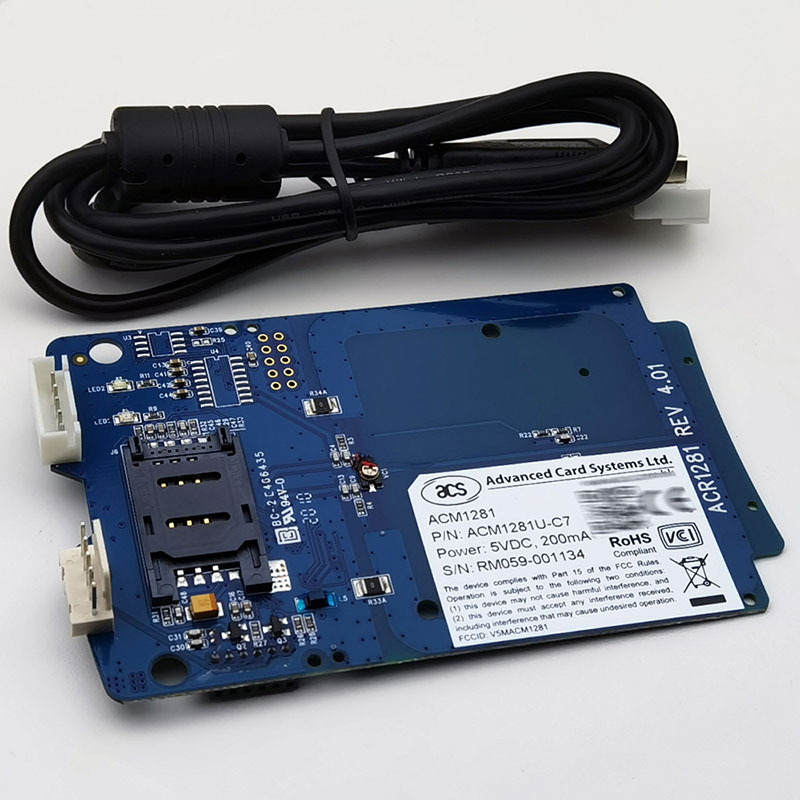

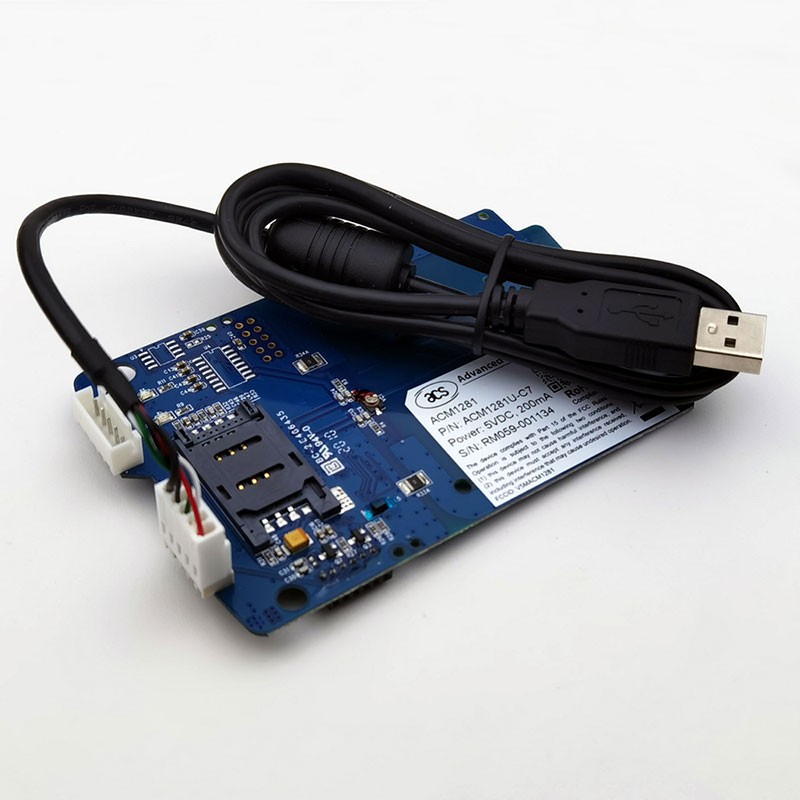

It is a high-performance 13.56 MHz contactless reader/writer module designed for secure and demanding applications. Its key differentiator is the integrated SAM (Secure Access Module) card slot, enabling an additional layer of security for transactions and data access. Featuring a USB 2.0 Full-Speed interface, it offers easy plug-and-play integration into embedded systems such as payment terminals, kiosks, and access control units. The module supports ISO 14443 A & B and M1 series cards with a read range up to 50mm and a high communication speed of 848 kbps, making it a robust solution for finance, e-government, and secure identification systems.

Key Features

Standard USB Interface & Compliance: USB 2.0 Full-Speed interface with CCID compliance for universal plug-and-play operation. Supports USB firmware upgrades.
High-Performance Contactless Interface: Offers a fast read/write speed of up to 848 kbps and a read distance of up to 50mm (depending on tag). Features built-in anti-collision and supports Extended APDU (up to 64KB).
Integrated Security with SAM Slot: Includes a dedicated, ISO 7816-compliant SAM card slot (5V, Class A) to host security modules for encrypted authentication and secure transactions.
Broad Compatibility: Supports major contactless standards: ISO 14443 A & B (Parts 1-4) and M1 series cards (MIFARE Classic, etc.).
Comprehensive Development Support: Provides standard PC/SC and CT-API application programming interfaces for easy software integration across platforms.
User Feedback & Design: Equipped with a user-controllable dual-color LED and a buzzer for operational status indication. Features a compact, board-line integrated design.

Technical Specifications

Category	Specification
Physical	Dimensions: 106.6 mm (L) x 67.0 mm (W) x 16.0 mm (H) Weight: 20.8 g
Interface	Host Interface: USB 2.0 Full-Speed
Power	Supply Voltage: 5V DC Supply Current: Max. 200 mA
Environmental	Operating Temperature: 0°C to +50°C
RF Specifications	Operating Frequency: 13.56 MHz Read Distance: Up to 50 mm (tag dependent)
Card Support	Contactless: ISO 14443 A & B, M1 Series Cards SAM Slot: ISO 7816, Class A (5V)
Standards / Certifications	ISO 14443, ISO 7816, PC/SC, CCID, CE, FCC, RoHS 2, REACH
OS Compatibility	Windows: 2000, XP, Vista, 7, 8, 8.1 (32/64-bit); Server 2003, 2008, 2008 R2, 2012, 2012 R2 Linux: Kernel 2.6 and above Mac OS X Android: 3.1 and above
