Panel-Type Animal Ear Tag Reader/Writer – Half/Full Duplex Low-Frequency Long-Range RFID Device

Product Description

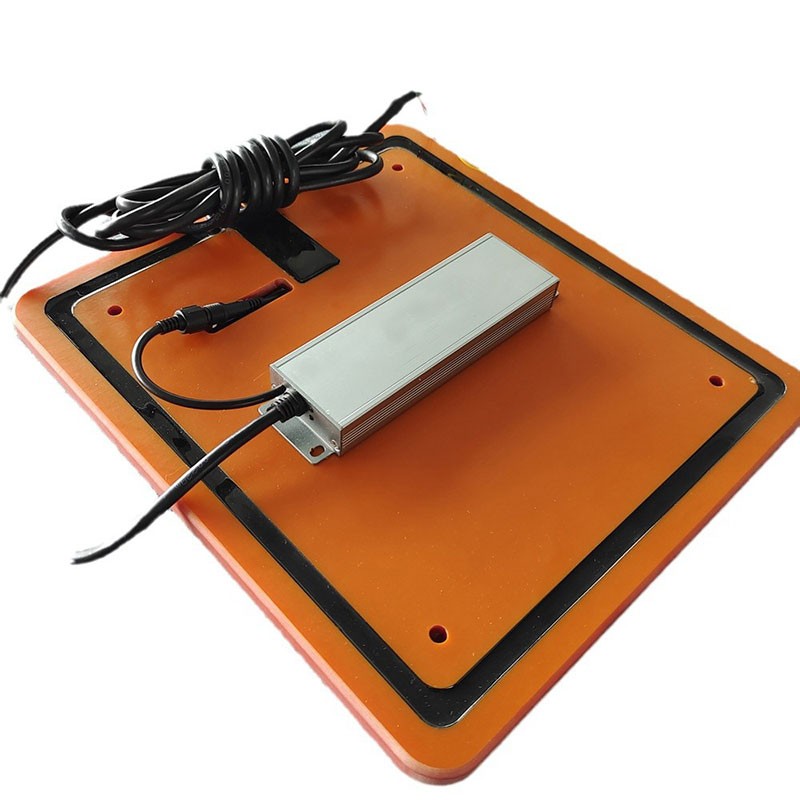

The L81 Series low-frequency panel reader/writer is a panel-type electronic ear tag reader based on Radio Frequency Identification (RFID) technology. It is also known as an electronic ear tag reader or scanner. It features a split-design architecture, with separate controller and antenna units, offering flexible and convenient application.

It employs passive RFID technology supporting both low-frequency Half-Duplex (HDX) and Full-Duplex (FDX-B) formats. This reader complies with the ISO 11784/5 international standard protocol, operates at 134.2KHz, and offers strong penetration and high stability. It enables long-distance reading of all electronic ear tags from brands like DeLaval and Allflex, as well as domestic low-frequency electronic ear tags.

A key feature of this reader is its built-in 32-step auto-tuning circuit with an automatic tuning function upon power restoration. This simplifies the initial installation process and ensures continuous operation by automatically optimizing the read distance under various conditions. The auto-adjustment function allows for easy installation and maintains optimal performance in changing environments. The reader is equipped with a synchronization function, ensuring stable and interference-free operation even when multiple readers are used in close proximity. It is characterized by high receiving sensitivity, stable performance, and strong reliability. It supports the standard modbus RTU industrial bus protocol, facilitating networked communication, with a configurable baud rate of up to 115200 bps to meet requirements for high-speed, long-distance data transmission.

It is widely used in: electronic feeding stations, automated feeding troughs, milking parlors, inventory/passage channels, intelligent weighing systems, livestock Access Control, and more.

特征 (Features)

• Dual-Mode Operation: Supports both Half-Duplex (HDX) and Full-Duplex (FDX-B) RFID protocols for wide tag compatibility.




• Long Read Range: Achieves a maximum read distance of up to 60cm for efficient animal identification.




• Rugged Construction: IP67-rated enclosure provides excellent protection against dust, water, and physical shocks, suitable for harsh agricultural and industrial settings.




• Split-Design Flexibility: The separate controller and antenna design allows for versatile and convenient installation.




• Advanced Auto-Tuning: Integrated 32-step automatic tuning circuit ensures optimal performance and easy setup across varying environmental conditions.




• Multi-Reader Synchronization: Built-in synchronization function allows multiple readers to operate nearby without interference.




• Versatile Interfaces: Equipped with both RS232 and RS485 communication interfaces for flexible system integration.




• Industrial Protocol Support: Compatible with standard MODBUS RTU industrial bus protocol for networked applications.




参数 (Parameters)
