High-Speed 13.56MHz RFID Reader with RS485 Interface | Multi-Tag Support & Data Encryption

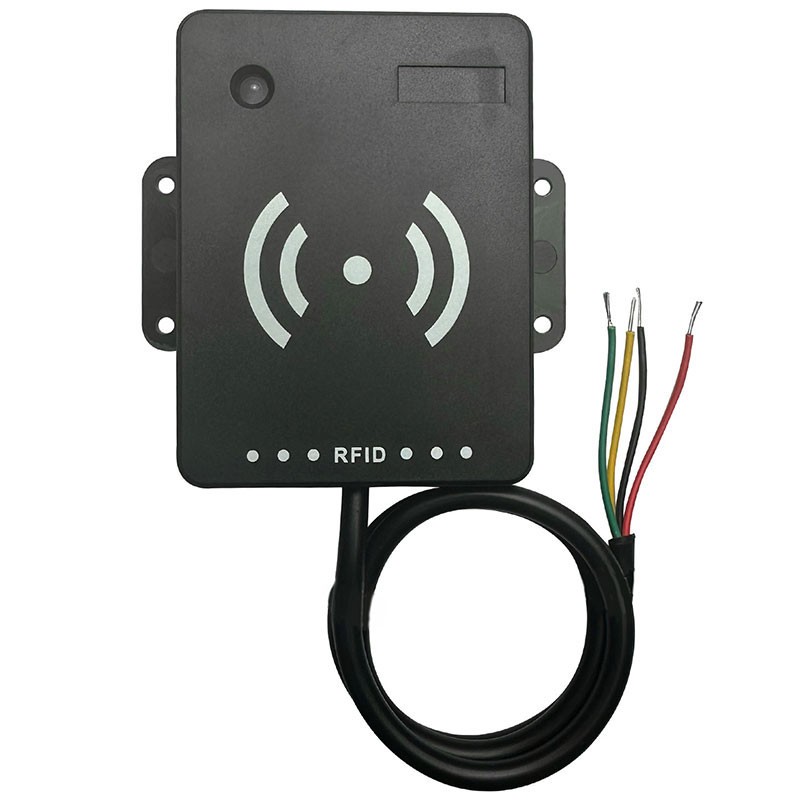

This high-frequency RFID reader-writer operates at 13.56MHz and complies with the ISO14443A protocol. It features a fast read speed of up to 30 times per second and a reading distance of over 6 cm for standard white cards. The device supports multiple communication interfaces, including RS485, RS232, and UART TTL, and is compatible with a wide range of tags such as F08, Mifare S50/S70, and NTag series. It offers versatile functions including card ID reading, sector data read/write, encryption, and value operations. With flexible wiring options and adjustable baud rates, it is suitable for various automated identification and data collection applications.

特征 (Features)

High-Speed Reading: Automatically reads tags up to 30 times per second.
Multi-Interface Support: Offers RS485, RS232, and UART TTL communication interfaces.
Versatile Operation: Supports command mode and automatic reading modes for card ID and sector data.
Wide Tag Compatibility: Works with F08, Mifare S50/S70, NTag203/210/213/215/216, and other compatible tags.
Adjustable Settings: Baud rate customizable from 4800 to 115200 bps; supports sector data encryption and value operations.
Flexible Installation: Provides side and back wiring options; designed for easy integration.

参数 (Parameters)

Operating Voltage: DC 5V or 7-12V or 15-24V
Operating Frequency: 13.56MHz
Supported Protocol: ISO14443A
Communication Interface: RS232, RS485, UART TTL
Supported Card Types: F08, Mifare S50, Mifare S70, NTag203/210/213/215/216, and compatible tags
Read Distance: >6 cm (for standard white card, dependent on environment and tag)
Read/Write Modes: Command mode, automatic card ID reading, automatic block data reading
Key Functions: Read card ID, read/write sector data, sector encryption, increment/decrement (e.g., recharge/consumption)
Communication Protocol: Customizable private protocol (manual provided)
Baud Rate: Default 9600 bps, adjustable from 4800 to 115200 bps
Average Operating Current: <60 mA
Indicator: Built-in LED buzzer support
