Embedded RFID Reader Module | Type-C USB | For Charging Piles & Kiosks

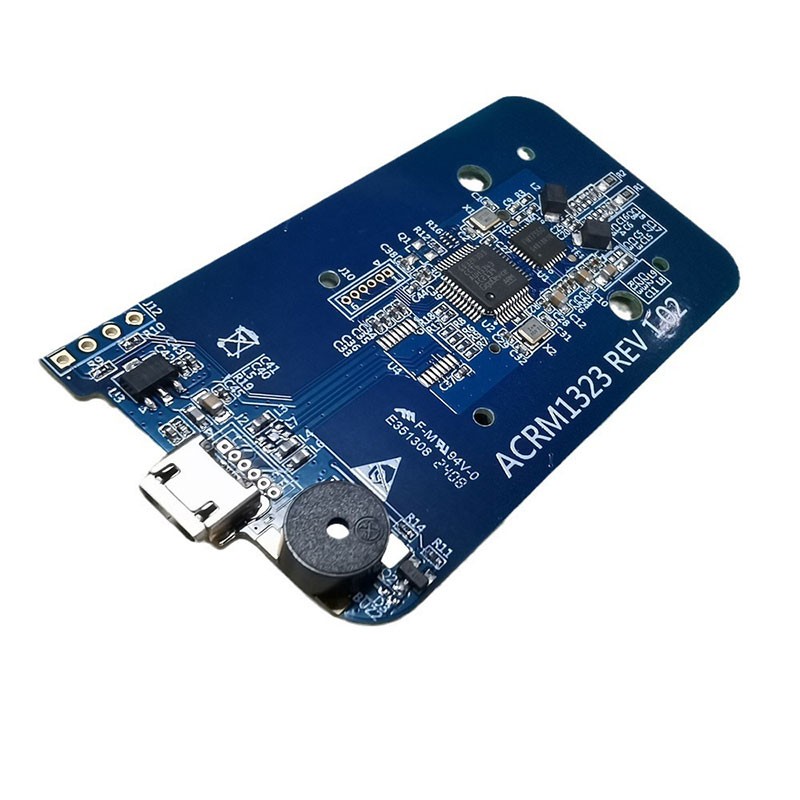

The ACM1323 series is a family of compact, embedded 13.56MHz RFID reader/writer modules designed for seamless integration into space-constrained applications like EV charging piles, vending machines, and kiosks. The series offers two interface variants: the ACM1323U featuring a driver-free USB HID (Type-C) interface for plug-and-play simplicity, and the ACM1323S utilizing a serial (UART TTL/RS232) protocol for direct microcontroller communication. Both modules support a wide range of ISO 14443 Type A cards, including MIFARE® classics and CPU cards, with a reliable read distance of up to 50mm. Their true out-of-box functionality, coupled with support for firmware upgrades and peripheral controls, makes them an ideal, future-proof solution for modern access control, payment, and identification systems.

Key Features

Dual-Interface Design: Choose between driver-free USB HID (Type-C) for direct PC connection or Serial (UART/RS232) for embedded MCU systems.
Broad Card Compatibility: Supports ISO 14443 A (Parts 1-4) cards, including MIFARE Classic®, MIFARE 1K/4K, MIFARE Plus, DESFire®, and CPU cards.
Plug-and-Play & Easy Integration: The ACM1323U requires no additional drivers on major OS. Compact form factor (73.5 x 40.0 x 5.0 mm) and comprehensive SDK (scrio.lib/.dll) accelerate development.
Enhanced Control & Security: Features user-controllable buzzer and dual-color LED. Offers an optional ISO 7816 SAM card slot (on request) for high-security applications like payment authentication.
Reliable & Upgradeable: Designed for continuous operation with an MTBF of 500,000 hours. Supports in-field firmware upgrades via USB or serial interface without hardware changes.
Multi-Platform Support: Compatible with Windows, Android, Linux, and various RTOS (via serial port).

Technical Specifications

Category	Specification
Model Variants	ACM1323U: USB HID (Type-C), Driver-free ACM1323S: Serial Port (UART TTL / RS232)
Contactless Interface	Frequency: 13.56 MHz Standards: ISO 14443 Type A Card Support: MIFARE Classic®, 1K/4K, Plus, DESFire®, CPU Cards Read Distance: Up to 50 mm (card dependent) Speed: 106 kbps Anti-Collision: Supported
Physical Interface	ACM1323U: USB 2.0 Full-Speed (12 Mbps), Type-C connector ACM1323S: Serial, 9600~115200 bps (default), 5-pin SMT connector
Power Supply	5V DC (±5%), Max. 300 mA
Physical Characteristics	Dimensions: 73.5 x 40.0 x 5.0 mm Weight: 7.2 g (excluding cable)
Peripherals	1x Controllable Buzzer, 1x Controllable Dual-color LED (Blue/Green, optional)
Security Option	1x ISO 7816 SAM Card Slot (available on request)
Environmental	Operating Temp: -10°C to +60°C Operating Humidity: 90% RH (non-condensing) MTBF: 500,000 hours
Certifications	RoHS, REACH
