83KHz / 87KHz RFID Marker for Gas & Oil Pipelines | Underground Disc Beacon

1. Product Introduction (产品简介)

This disc-shaped RFID electronic marker (Beacon) is specifically engineered for the oil, gas, and petroleum industry. Operating at dedicated low frequencies of 83KHz and 87KHz, this passive tag is the ideal solution for marking the route of underground natural gas pipelines, fuel lines, and crude oil conduits.

Designed for installation near manholes, valve stations, or directly along the pipe, this robust marker allows operators to accurately locate sub-surface Assets using a handheld RF detector. It plays a critical role in preventing accidental damage during excavation or construction, ensuring the safety and integrity of vital energy infrastructure.

2. Key Specifications (核心参数)

Product Name: Disc-shaped RFID Electronic Marker / Underground Pipeline Beacon

Application: Oil, Gas, and Petroleum Pipelines (Natural Gas & Crude Oil)

Operating Frequency: 83KHz / 87KHz (Low Frequency)

Housing Material: High-Strength HDPE (High-Density Polyethylene), Resistant to Corrosion and Chemicals

Dimensions: Diameter Approx. 10 cm

Weight: Approx. 0.12 kg

Protection Rating: IP68 (Fully Dustproof & Submersible)

Impact Resistance: Withstands falls from 1.5 meters

Compression Strength: Withstands up to 5KN (Approx. 500 kgf)

Max Detection Depth: Up to 1.5 meters (Varies with soil conditions)

3. Functions & Applications (功能与应用)

Pipeline Location: Precise surface-to-underground pinpointing of buried fuel and gas lines.

Excavation Safety: Emits a distinct RF signal to alert operators of underground hazards, preventing costly and dangerous fuel line ruptures.

Manhole & Valve Marking: Ideal for permanent installation at critical infrastructure points such as wellheads, valve boxes, and access chambers.

Route Confirmation: Used to verify pipeline alignment during installation and routine maintenance inspections.

Non-Metallic Pipe Detection: Effectively locates plastic (HDPE/PE) conduits that cannot be found with standard metal detectors.

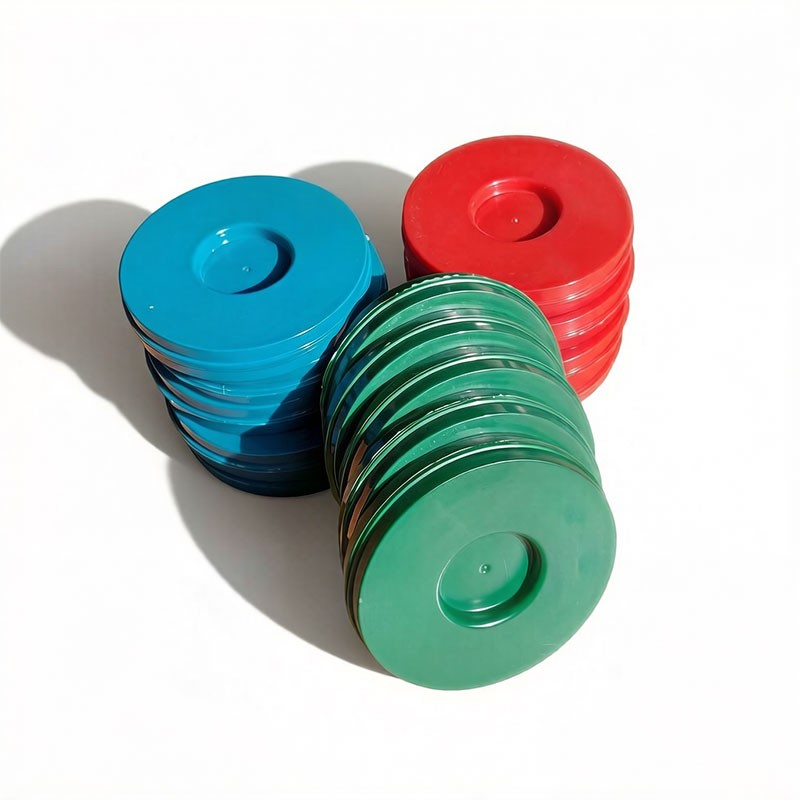

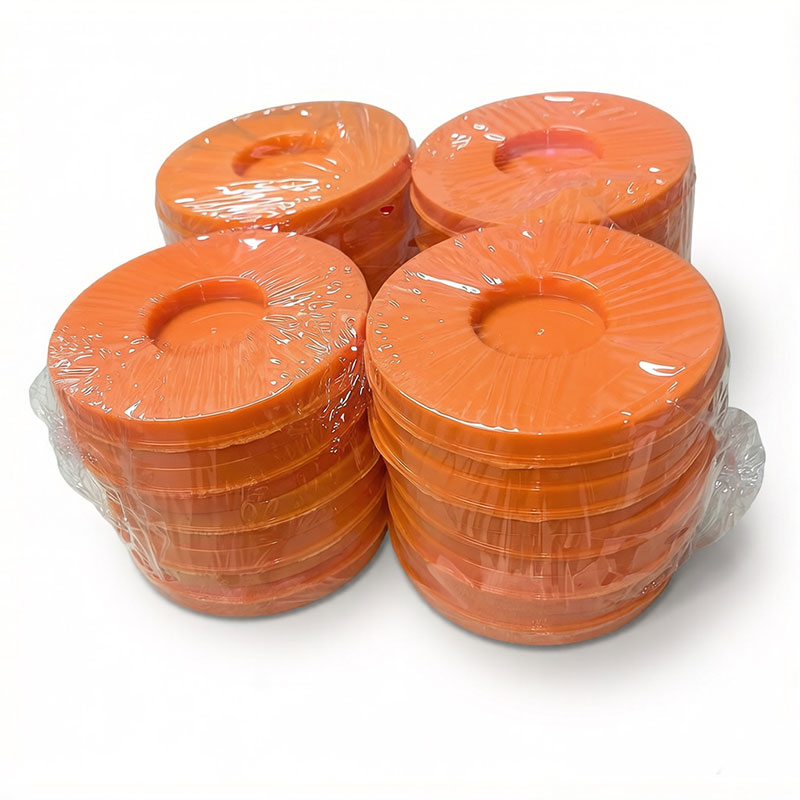

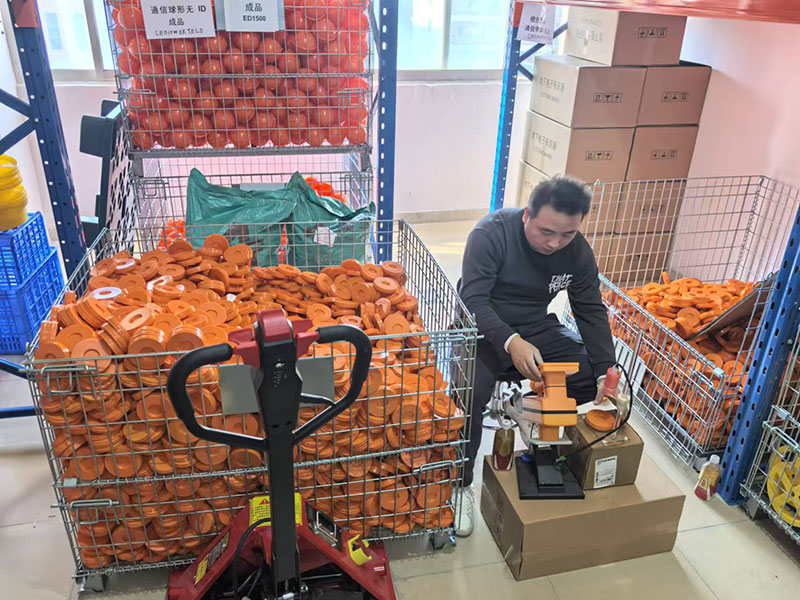

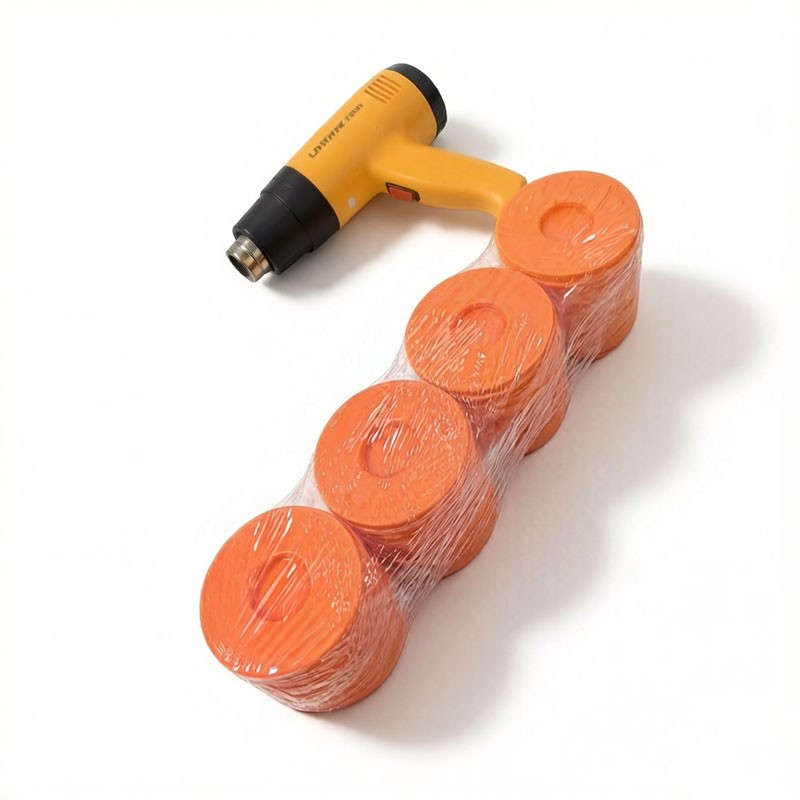

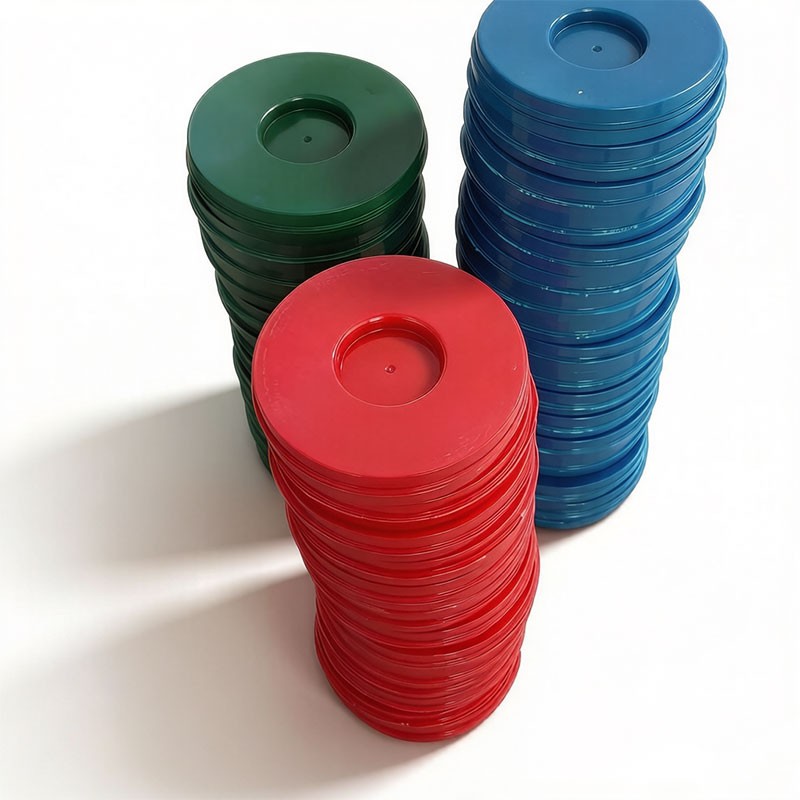

4. Images:
