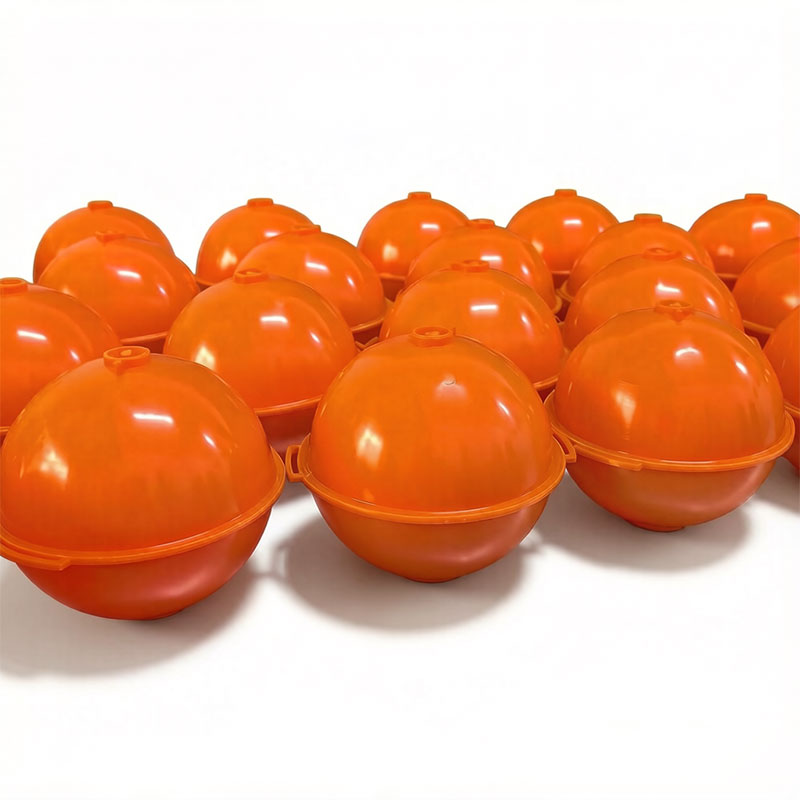

The Spherical Electronic Marker (Underground Electronic Tag ED1500) is a domestically developed product featuring ABS/HDPE encapsulation. It is resistant to chemical corrosion and high pressure, making it ideal for harsh underground environments. Available in both ID and non-ID versions, this tag supports multiple industry applications and customizable operating frequencies (e.g., Power 169.8KHz, Water 145.7KHz, Drainage 121.6KHz, Telecom 101.4KHz, Gas 83/87KHz, CATV 77KHz, Universal 66.35KHz/133.3KHz).
The Spherical Electronic Marker (Underground Electronic Tag ED1500) is a domestically developed product featuring ABS/HDPE encapsulation. It is resistant to chemical corrosion and high pressure, making it ideal for harsh underground environments. Available in both ID and non-ID versions, this tag supports multiple industry applications and customizable operating frequencies (e.g., Power 169.8KHz, Water 145.7KHz, Drainage 121.6KHz, Telecom 101.4KHz, Gas 83/87KHz, CATV 77KHz, Universal 66.35KHz/133.3KHz).

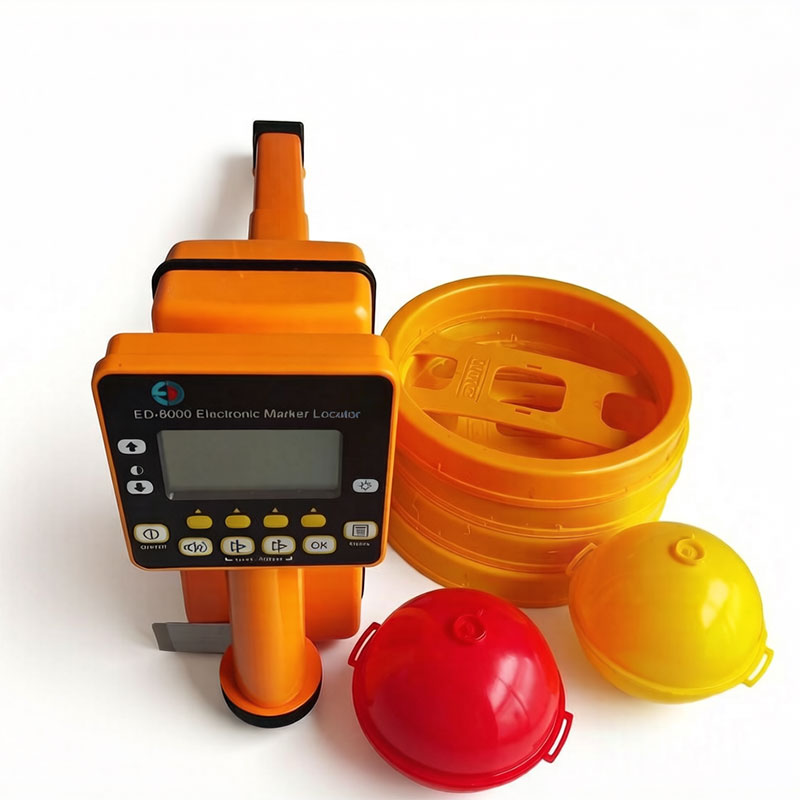

The non-ID version is compatible with ED8000 and 3M Dynatel series detectors, allowing seamless integration with existing equipment. The ID version includes a unique 10-digit user code, enabling precise digital Asset tracking. Equipped with a self-leveling induction coil, this marker ensures optimal signal transmission even in uneven burial conditions, providing reliable positioning for municipal management and smart city infrastructure.

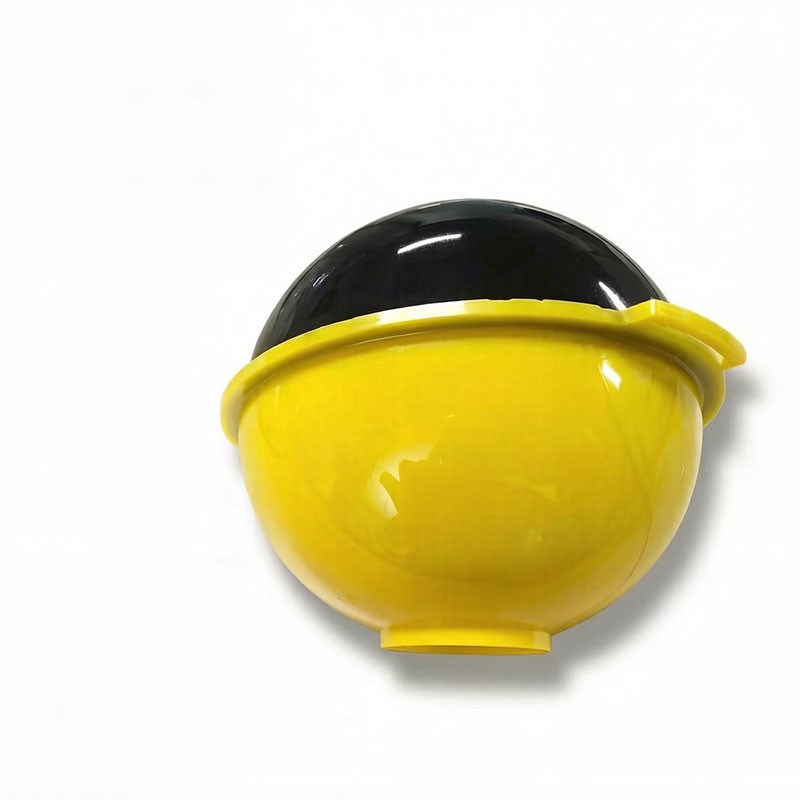

Spherical Design with Self-Leveling: The internal induction coil floats on a built-in antifreeze fluid, ensuring the coil remains horizontal and maximizes signal detection accuracy.
Dual Version System:
Non-ID Version: Works with mainstream detectors (ED8000 or 3M), perfect for users looking to upgrade existing systems without replacing hardware.

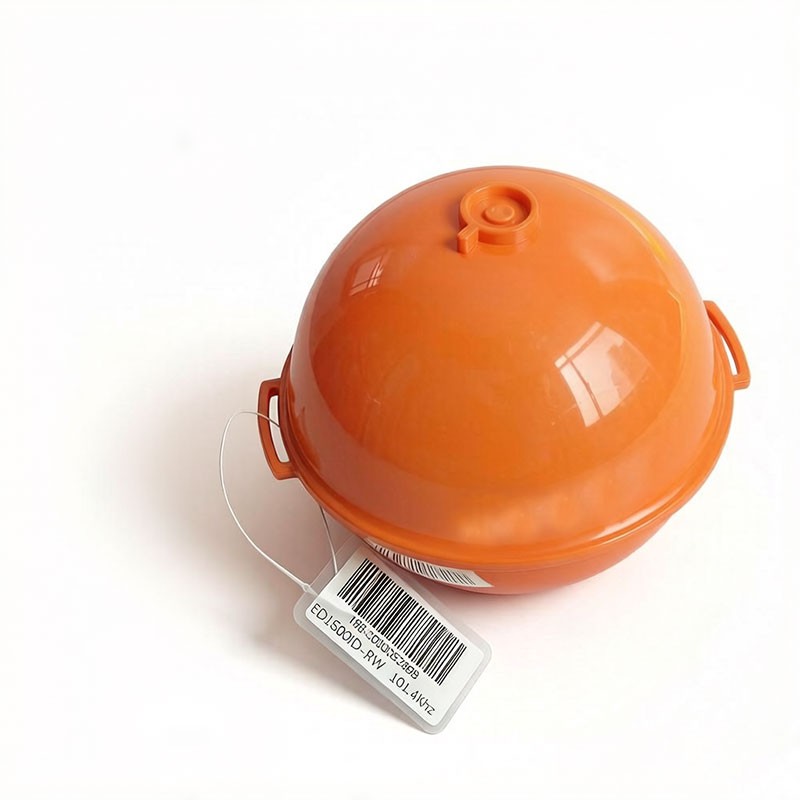

ID Version: Features a unique 13-bit encoding (3-bit manufacturer + 10-bit user code) for advanced asset identification and traceability.
Superior Environmental Resistance: Constructed from durable ABS/HDPE housing, it offers full IP68 protection against water, dust, and corrosive substances.
Deep Detection Capability: Offers a maximum detection depth of 1.5 meters (non-ID version), significantly reducing the risk of accidental excavation.
Wide Frequency Range: Customizable frequencies tailored for specific utilities (Electricity, Gas, Water, Telecom) to prevent signal interference.
Parameter | Specification |
|---|---|
Model Number | ED1500 |
Encapsulation Material | HDPE (High-Density Polyethylene), Chemical Resistant |
Product Dimensions | Diameter: 12 cm (excluding cable tie hole) |
Product Weight | 0.35 kg ±10% |
Ingress Protection | IP68 (Dustproof & Waterproof) |
Maximum Detection Depth | Non-ID Version: > 1.5 m (Compatible with ED8000 / 3M Detectors)ID Version: > 1.2 m (Requires ED8000 Detector) |
Impact Resistance | Withstands drops from 1.5 meters |
Compression Strength | Withstands 5 KN (Approx. 500 kg) of vertical pressure |

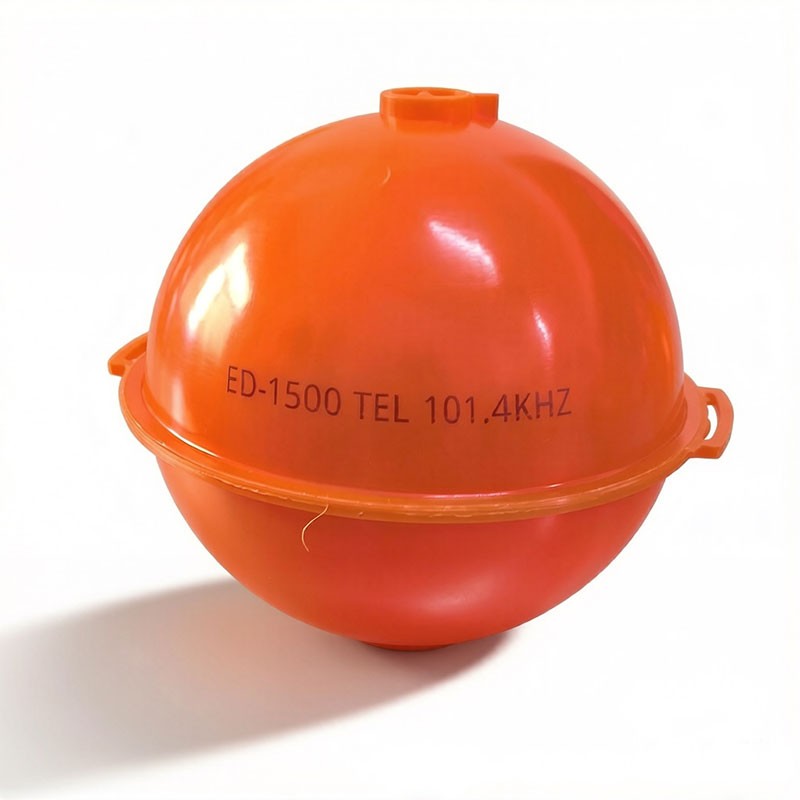

Operating Frequency (Customizable) | √ Power (HV Cable): 169.8 KHz√ Water (Supply): 145.7 KHz√ Drainage (Sewage): 121.6 KHz√ Telecom (Fiber Optic): 101.4 KHz√ Gas (Natural/Oil): 83 KHz / 87 KHz√ CATV: 77 KHz√ Universal (Municipal): 66.35 KHz / 133.3 KHz |
