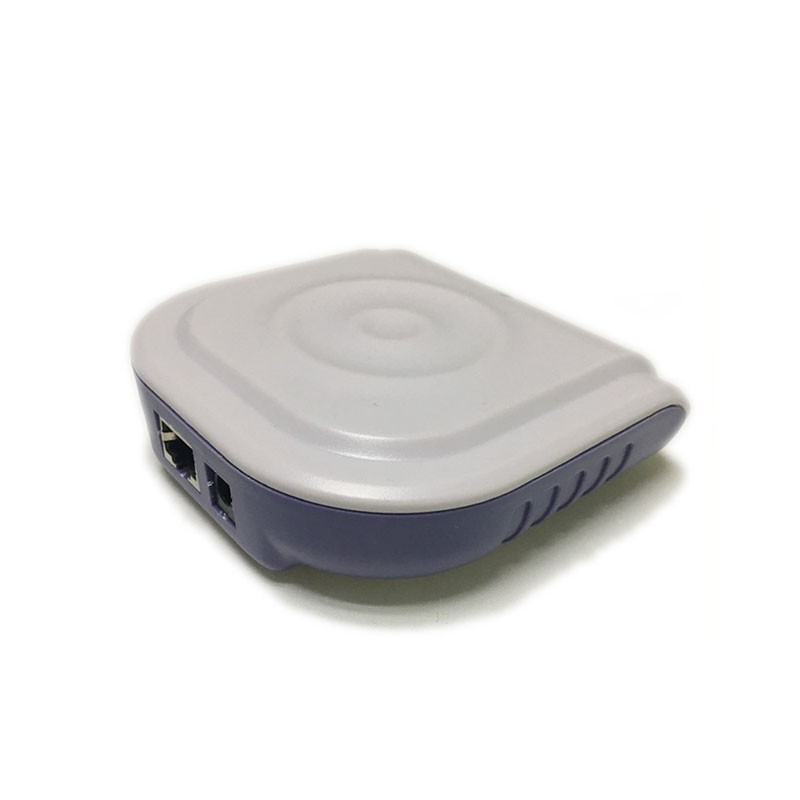

125KHZ Low-Frequency ID Card Reader with WIFI & TCP/IP Cloud Network | PoE Supported

The HX530-Q-m is a cloud-network-enabled, long-range 125KHz low-frequency ID card reader designed for seamless remote identification and data collection. It supports reading EM4100, EM4201, TK4100, and other compatible ID cards via both WIFI and TCP/IP (RJ45) interfaces, including Power over Ethernet (PoE). This flexibility allows for easy integration into existing network infrastructures, enabling stable data transmission in both active and passive modes. As a versatile front-end device for system integration, it comes with comprehensive driver SDKs and demo programs for multiple development platforms (VC++, VB, Delphi, etc.), making it an ideal solution for cloud-based access control, attendance systems, remote printing, and secure data verification applications.

特征 (Features)

Dual Network Connectivity: Supports both wired TCP/IP (with PoE capability) and wireless WIFI for flexible deployment in various environments.
Wide Card Compatibility: Reads mainstream 125KHz low-frequency ID Cards including EM4100, EM4201, and TK4100.
Cloud & Network Ready: Designed for remote network communication, facilitating integration with cloud platforms for data validation and centralized management.
Comprehensive Development Support: Includes driver libraries and functional demo programs for multiple programming languages (e.g., Visual C++, Visual Basic, Delphi), reducing development time.
Simple Integration: Features configurable baud rate and supports standard network protocols for easy connection to PCs and servers.
Clear Status Indication: Equipped with a buzzer and a dual-color LED light for audible and visual operation feedback.
Compact & Durable Design: Housed in a compact ABS enclosure suitable for various installation scenarios.

参数 (Parameters)

Parameter	Specification
Model	HX530-Q-m
Operating Frequency	125 KHz
Supported Card Types	EM4100, EM4201, TK4100 & compatible ID cards
Read Distance	> 5 cm (depends on tag size and craft)
Communication Interfaces	TCP/IP (RJ45 Port), Wireless WIFI
Power Supply	PoE (Power over Ethernet) via TCP/IP interface
Baud Rate	9600 - 115200 bit/s (Configurable, Default: 9600)
Operating Temperature	-10°C to +70°C
Housing Material	ABS
Dimensions (L x W x H)	100 mm x 100 mm x 27 mm
Typical Applications	Remote Network Printing, Cloud Platform Data Verification & collection
