RFID Smart 8-Drawer Tool Cabinet

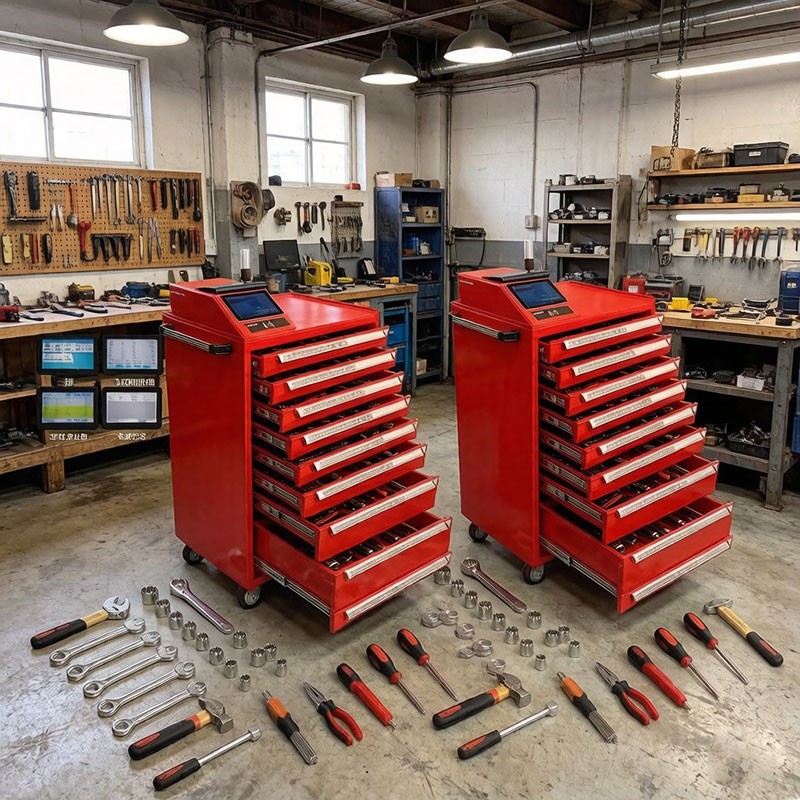

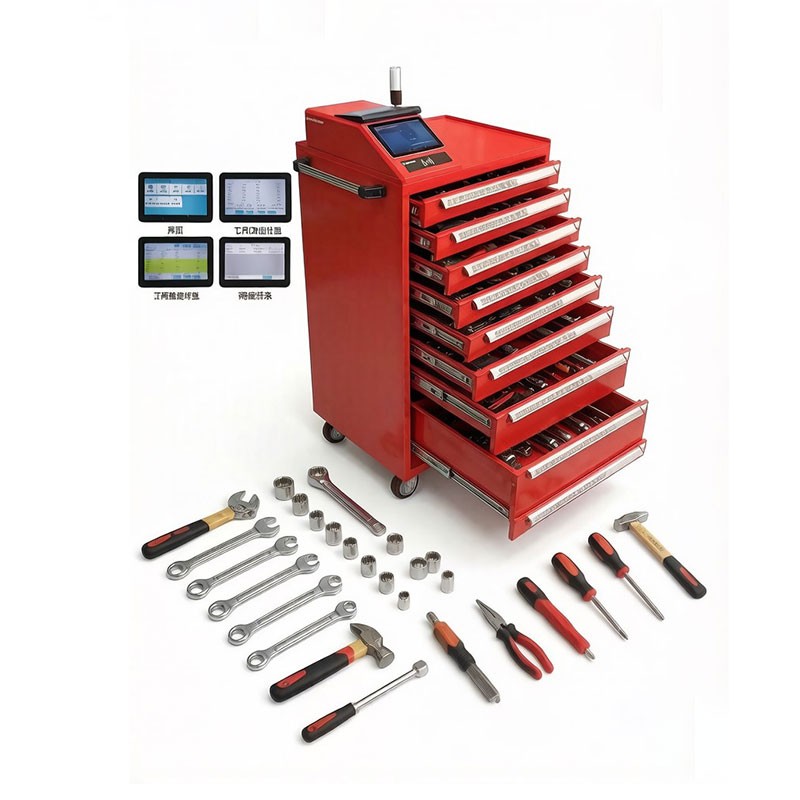

The RFID Detection 8-Drawer Rolling Tool Cabinet is a professional-grade, intelligent storage solution designed for high-efficiency tool management. It integrates advanced RFID technology for automated tool tracking and loan management, all controlled via a user-friendly 10.1-inch capacitive touchscreen running a Windows-based interface. Built for durability and organization, it features eight heavy-duty drawers on full-extension ball slides, a prominent warning light, and locking dual-wheel brakes. Its compact footprint combines substantial storage capacity with robust industrial performance, making it ideal for workshops, maintenance facilities, and production floors.

Features & Parameters

Category	Specification
Core Function	RFID Tool detection, tool loan/return management, inspection record display, and history logging.
Model
Physical Specs	Dimensions: 910mm (W) x 600mm (D) x 1330mm (H) Weight: Approx. 160 kg
Drawer System	8 multi-layer drawers. Drawer Interior: 690mm (W) x 510mm (D). Drawer 1-7 Height: 50mm; Drawer 8 Height: 150mm Capacity: Up to 40kg per drawer. Slides: Heavy-duty twist-and-roll ball slides for 100% extension.
Control & Hardware	Display: 10.1-inch Capacitive Touch Screen (1280x800, 16:9). Industrial PC: windows OS, 8G RAM + 256G ROM (or Android RK3288 Quad-core, 1.8GHz.) RFID System: OneStop Reader (Hardware & Software), 20-30cm read range. Control System: Integrated with domestic PLC.
Safety & Mobility	Top-mounted Warning Light. Dual-wheel brakes for secure parking.
Electrical	Input: AC 100-240V
