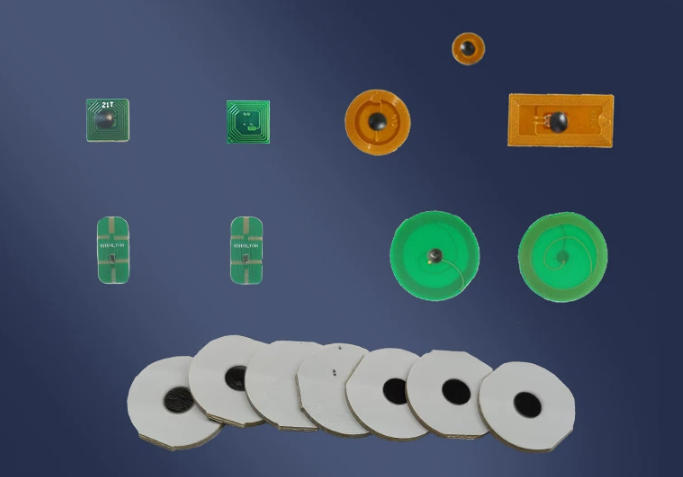

High-Frequency RFID PCB/FPC Tag – ISO15693 NXP ICODE II / Slix Chip, 13.56MHz, High Temp Resistant, Embeddable

This Industrial-Grade High-Frequency (HF) RFID Tag is engineered for rugged environments and embedded applications. Built on a durable FR-4 PCB substrate and utilizing the NXP ICODE family chip (ICODE II or ICODE Slix), this 13.56MHz tag complies with the ISO 15693 protocol. It features a DFN-encapsulated chip with black glue reinforcement and optional soft magnetic absorbing material, making it highly resistant to extreme temperatures (up to 200°C during SMT), high pressure, vibration, water, and corrosion. Ideal for injection molding, over-molding (silicone/rubber), and embedding into tools, dishware, and wooden products.

Technical Parameters (Specifications)

Parameter	Specification
Protocol	ISO 15693
Chip Type	NXP ICODE II / NXP ICODE Slix (Options available)
Frequency	13.56 MHz (HF)
Communication Speed	106 Kbps
Reading Distance	> 60mm (Front/Surface read); > 30mm (Vertical/Embedded read)
Memory	1 Kbits (28 data blocks, 4 bytes/block); 32 sectors with Global Unique UID
Write Endurance	> 100,000 times
Data Retention	> 10 years
Read Accuracy	99.9%
Anti-Collision	Up to 5 meters / Multi-tag reading capable
Operating Temp.	-15°C ~ 75°C
Storage Temp.	-30°C ~ 150°C (PCB part); -30°C ~ 85°C (With absorbing material)
High Temp. Resistance	180°C (Non-metal); SMT Reflow up to 200°C (Short duration)
Material	FR-4 Round PCB + DFN Encapsulated Chip; Optional Soft Magnetic Alloy (Anti-metal/Absorbing layer)
Protection	Waterproof, Dustproof, Shockproof, Corrosion-resistant
Applications	Embedded in plastic, silicone, wood, industrial Tools; Dishwasher-safe dishware tracking

Robust Industrial Design: Features an FR-4 PCB base and DFN chip encapsulation with black glue加固 (reinforcement), ensuring high stability against shock, vibration, and corrosion.
High-Temp & SMT Ready: Withstands temperatures up to 180°C continuously and 200°C during SMT patch processes, making it perfect for injection molding and over-molding.
Flexible Embedding Options: Can be embedded into塑胶外壳 (plastic casings),硅胶杯托 (silicone coasters),木质品 (wooden items), and生产工具件 (industrial tools).
Anti-Metal/Absorbing Option: Available with soft magnetic alloy composite material to ensure readability when attached to or embedded near metal surfaces.
Reliable Performance: 99.9% read accuracy, >10 years data retention, and 100,000+ write cycles, compliant with global ISO 15693 standards.
