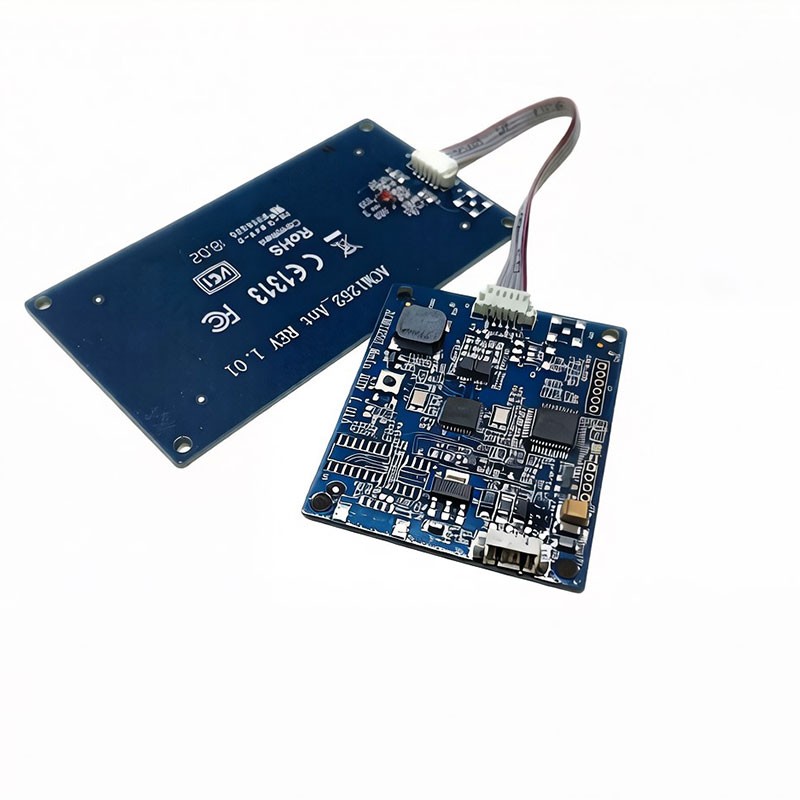

The ACM1252U-Y4 is an NFC reader/writer module developed based on 13.56 MHz contactless technology. Featuring a USB interface and a separate board-and-antenna design, it is equipped with a Secure Access Module (SAM) card slot. This allows it to work in conjunction with a SAM card to perform key diversification and mutual authentication, thereby providing a high level of security for contactless transactions. Furthermore, it supports post-deployment firmware upgrades, eliminating the need for additional hardware modifications. This reader module builds upon the strengths of the NFC Forum-certified ACR1252U-A1 reader, supporting all three NFC modes: Card Reader/Writer, Card Emulation, and Peer-to-Peer communication. It is specifically designed for quick and easy integration into embedded systems.
The ACM1252U-Y4 supports not only ISO 14443 Type A and B cards, MIFARE series cards, DESFire series cards, FeliCa series cards, and ISO 18092-compliant NFC Tags, but also other NFC devices. It offers an access speed of up to 424 Kbps and an operating distance of up to 50 mm (depending on the type of tag used). It also supports post-deployment firmware upgrades without requiring any hardware modifications.
Featuring a detachable antenna and an optional USB cable, the ACM1252U-Y4 serves as an ideal front-end interface module for enabling NFC transactions on advertising terminals, ticketing machines, gaming consoles, and other integrated systems.
USB 2.0 Full Speed (12 Mbps)
Smart Card Reader/Writer:
Contactless Interface
Read/write speed up to 424 Kbps
Built-in antenna for contactless tag access; reading distance of up to 50 mm (depending on tag type)
Supports ISO 14443 Part 4 Type A and B cards, MIFARE series cards, DESFire series cards, FeliCa series cards,
and all four types of NFC (ISO/IEC 18092) tags
Built-in anti-collision feature (only one tag accessible at any time)
NFC Support
Reader/Writer Mode
Peer-to-Peer Communication Mode
Card Emulation Mode
SAM Interface (Optional)
One SAM Card Slot (Optional)
Supports ISO 7816 MCU cards (Class A)
Application Programming Interface (API):
Supports PC/SC
Supports CT-API (via wrapper on top of PC/SC)
Built-in Peripherals
User-controllable dual-color LED indicator
User-controllable buzzer
USB Firmware Upgradability
Supports Android™ 3.1 and above
Certifications/Compliance:
EN60950/IEC 60950, ISO 18092 (NFCIP-1), ISO 14443 Parts 1-4, CE, FCC, VCCI, PC/SC, CCID, Microsoft® WHQL, RoHS 2, REACH
USB Interface Parameters
Power Source: USB Bus-powered
Speed: 12 Mbps (Full Speed)
Supply Voltage: Rated 5 V DC
Supply Current: Max. 200 mA
Contactless Smart Card Interface Parameters
Standards: ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE, FeliCa
Protocols: ISO 14443 T=CL (Cards compliant with ISO 14443-4) and T=CL Emulation (MIFARE 1K/4K, ISO 18092, FeliCa, and NFC tags)
Smart Card Read/Write Speed: 106 Kbps, 212 Kbps, 424 Kbps
Operating Frequency: 13.56 MHz
Operating Distance: Up to 50 mm (depending on card type)
Detachable Antenna Distance: Max. 10 cm
SAM Card Interface Parameters (Optional)
Standard: ISO 7816
Protocols: T=0 and T=1
Built-in Peripherals
Dual-color LED: Red and Green
Buzzer: Monotone

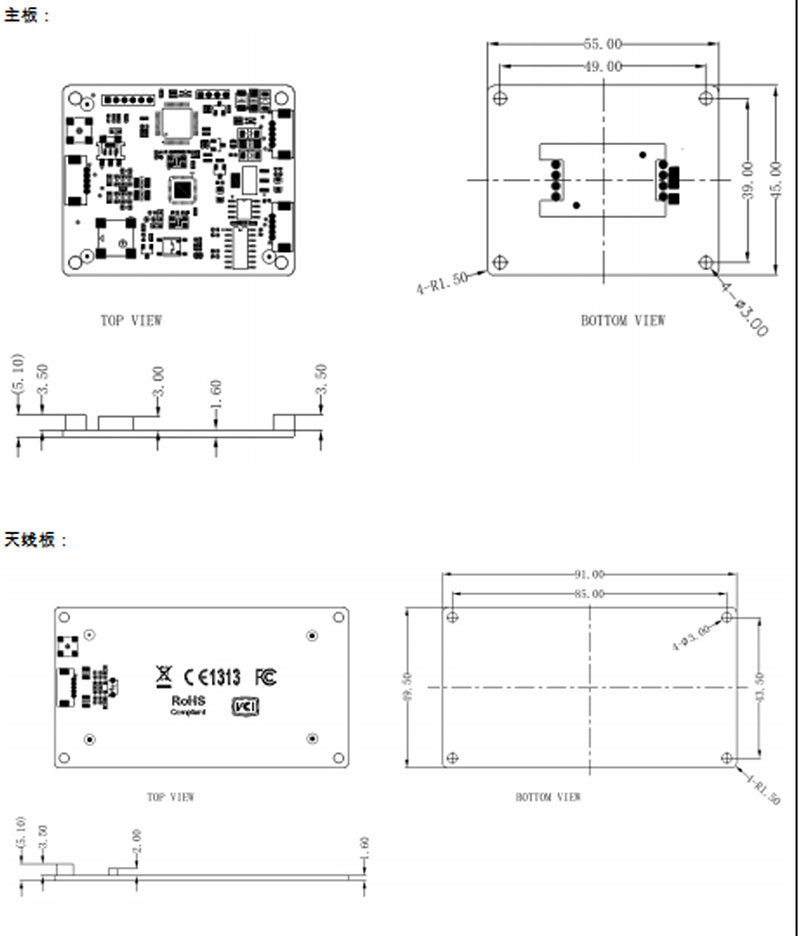

Physical Specifications
Dimensions: Main Board: 55.0 mm (L) × 45.0 mm (W) × 5.1 mm (H)
Antenna Board: 91.0 mm (L) × 49.5 mm (W) × 5.1 mm (H)
USB Cable Length: 1.0 m
Operating Conditions
Temperature: 0°C – 50°C
Humidity: Max. 90% (non-condensing)
MTBF: 500,000 hours
Application Programming Interface (API)
PC/SC
CT-API (via wrapper on top of PC/SC)
Certifications/Standards
EN 60950/IEC 60950, ISO 14443, ISO 18092, ISO 7816 (Customizable upon request), CE, FCC, VCCI,
PC/SC, CCID, RoHS 2, REACH, USB Full Speed, Microsoft® WHQL for Windows® 2000, Windows® XP, Windows Vista® Windows® 7, Windows® 8, Windows® 8.1, Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012, Windows® Server 2012 R2
Operating systems supported by the device driver: Windows® 2000, Windows®
