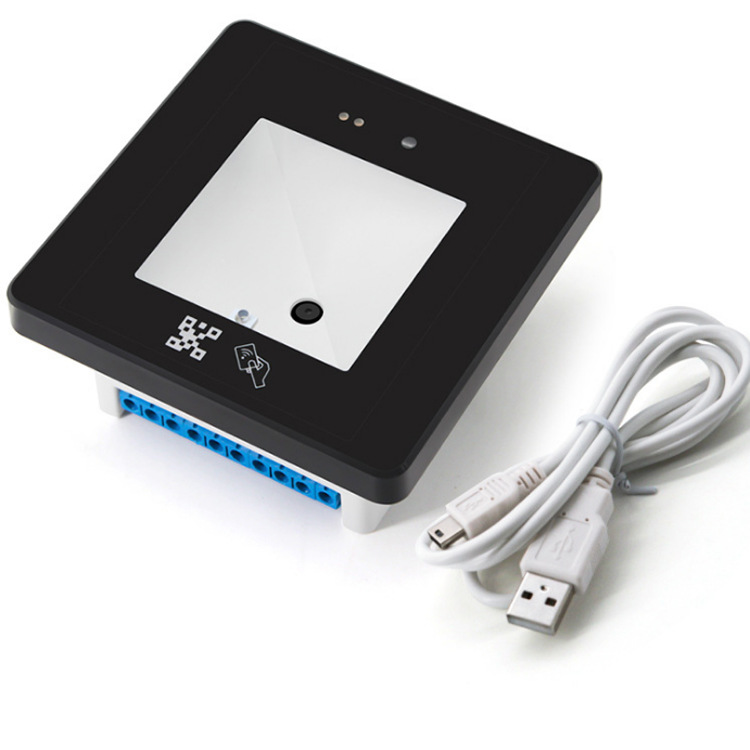

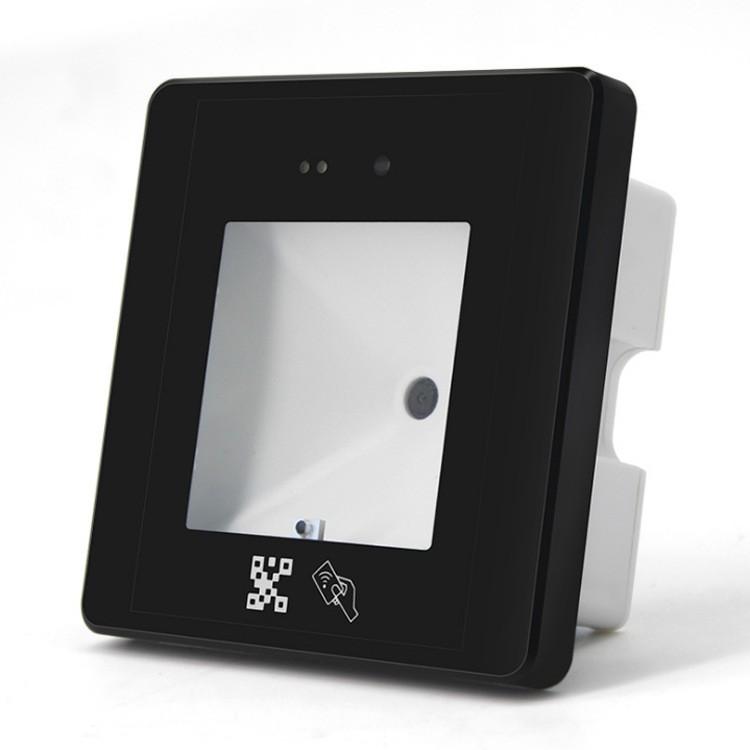

The 86-Box Multifunction Access Control Reader is a highly integrated, wall-mounted terminal designed for modern access management. Housed in a standard 86mm x 86mm junction box format, it seamlessly combines RFID card reading (supporting both EM ID and MIFARE IC cards) with a high-performance 1D/2D barcode scanner. Featuring versatile communication protocols including Wiegand, USB, RS232, RS485, and TCP/IP, it offers unparalleled compatibility with most existing access control systems and controllers. Its automatic-sensing QR code scanner, durable construction, and wide operating temperature range make it an ideal, future-proof solution for upgrading traditional card-only systems in offices, residential communities, tourist attractions, and government facilities.

Key Features

Dual-Function Reader: Integrates a 13.56MHz RFID Reader for EM/M1 chip cards and an automatic-sensing imager for scanning 1D barcodes and QR codes in one compact device.
Standard & Easy Installation: Adopts the universal 86mm x 86mm junction box standard for simple, direct replacement or installation in common wall sockets.
Multi-Protocol Communication Hub: Supports industry-standard interfaces: Wiegand (WG26), USB, RS232, RS485, and TCP/IP, ensuring compatibility with virtually any Access Control panel or software.
Fast & Reliable Performance: Offers quick card read (<200ms) within 3-6cm and barcode scanning within 0-20cm. Features automatic induction and audible beep feedback for user interaction.
Rugged Industrial Design: Built with durable PC material and tempered glass for the scan window, capable of operating in a wide temperature range from -20°C to 70°C.
Broad Compatibility: Driver support for Windows XP/7/8/10 and Linux systems. Can connect to any controller accepting Wiegand input.

Technical Specifications

Category	Specification
Physical	Dimensions: 86 x 86 x 42 mm Weight: 150 g Material: PC & Tempered Glass (Scan Window)
Power	Operating Voltage: 8 - 12V DC Operating Current: 800 mA
Card Reader	Type: EM ID Cards & MIFARE (M1) Series IC Cards Read Distance: 3 ~ 6 cm
Barcode Scanner	Type: 1D Barcode & QR Code Decoding Mode: Image Sensor Scan Angle: 45° slant from lens center Read Distance: 0 - 20 cm Feature: Auto-sensing with beep prompt

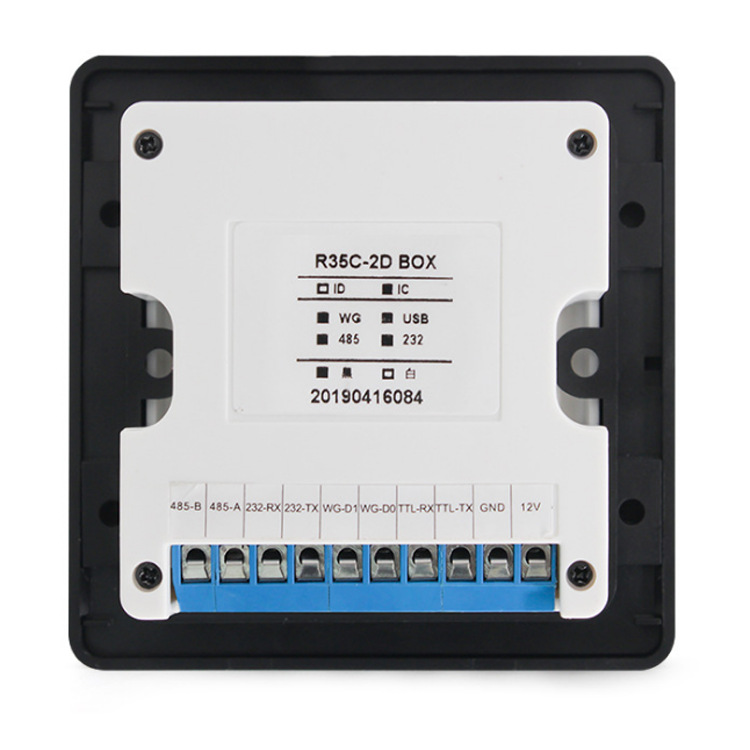

Communication	Interfaces: Wiegand (WG26), USB, RS232, TCP-IP, RS485
Performance	Read Speed: < 200 ms
Environmental	Operating Temperature: -20°C ~ 70°C Operating Humidity: 10%!~(MISSING)90%!((MISSING)non-condensing)
Indicators	Red (Power/Work), Green (Feedback), Blue/Green (Network)
OS Support	Windows XP/7/8/10, Linux
Reset	Physical reset via pinhole button on the back.
